BOE 33.8 Inch 700 Nits High Brightness Display LCD Panel RV338FBM-N00 2560(RGB)*720 Stretched bar Digital Screens

Stretched Bar LCD Display BOE 33.8 Inch 700 Nits High Brightness Panel 2560 720 Resolution RV338FBM N00 Industrial Digital Screen

Spu:
1601390069299
Product Description
Product details
BOE 33.8 Inch 700 Nits High Brightness Display LCD Panel RV338FBM-N00 2560(RGB)*720 stretched bar Outdoor Digital Screens
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-1
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-2

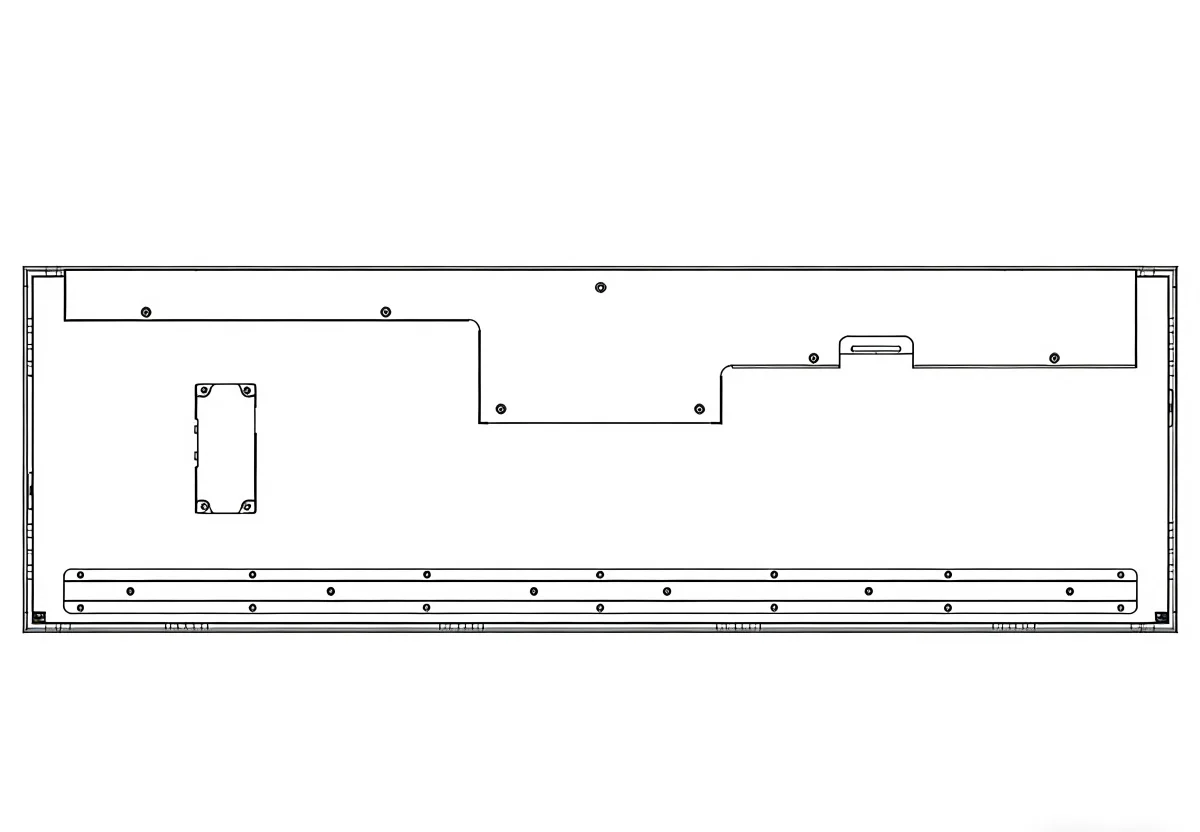

product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-3
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-4

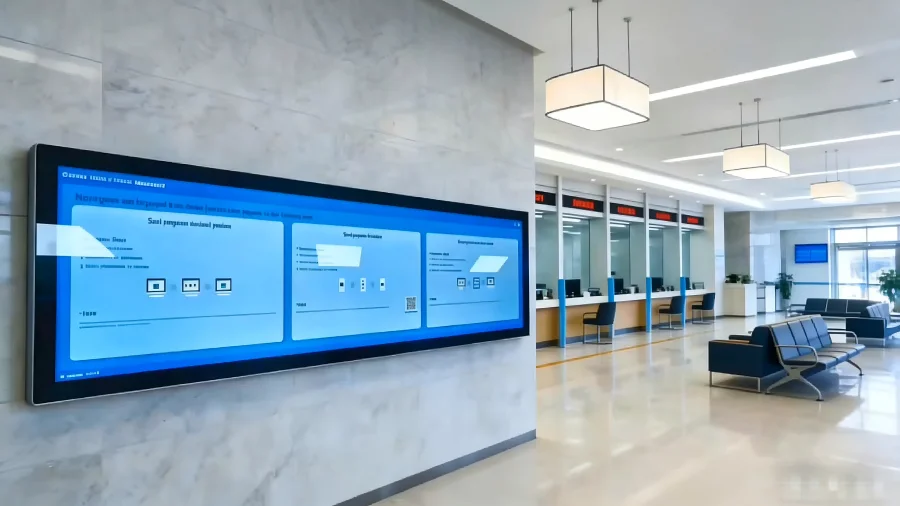

product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-5

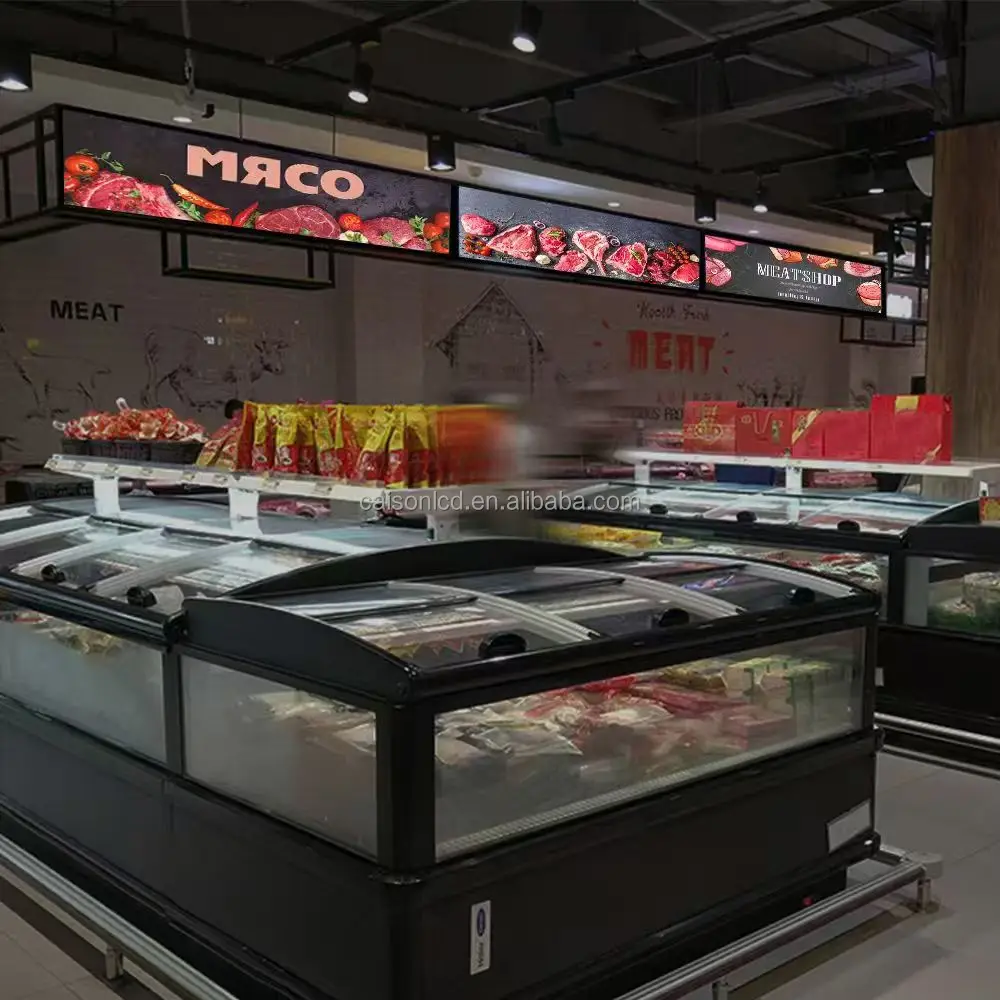

product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-6
Product Description
BOE 33.8 Inch 700 Nits High Brightness Display LCD Panel RV338FBM-N00 2560(RGB)*720 stretched bar Outdoor Digital Screens

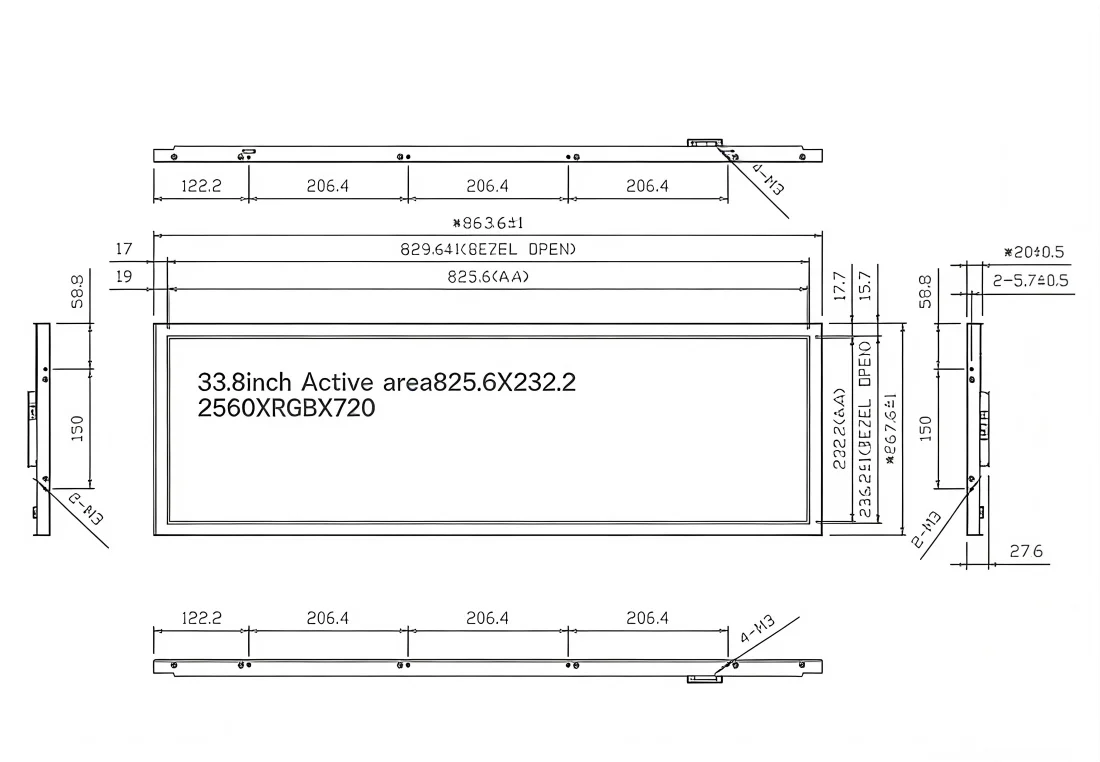

Front View
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-7
Panel
RV338FBM-N00
Brand
BOE
Resolution
2560(RGB)×720, 78PPI
Diagonal Size
33.8 inch
Active area
825.6(W)×232.2(H) mm
Interface Type
LVDS (2 ch, 8-bit) 51pins Connector)
Viewing angle
89/89/89/89 (Typ.)(CR≥10)

Luminance
700 cd/m² (Typ.)
Display mode

ADS, Normally Black, Transmissive
Response Time
25 (Typ.)(Tr+Td) ms


Contrast ratio

1200:1 (Typ.)
Power Supply
12V (Typ.)

Environment
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

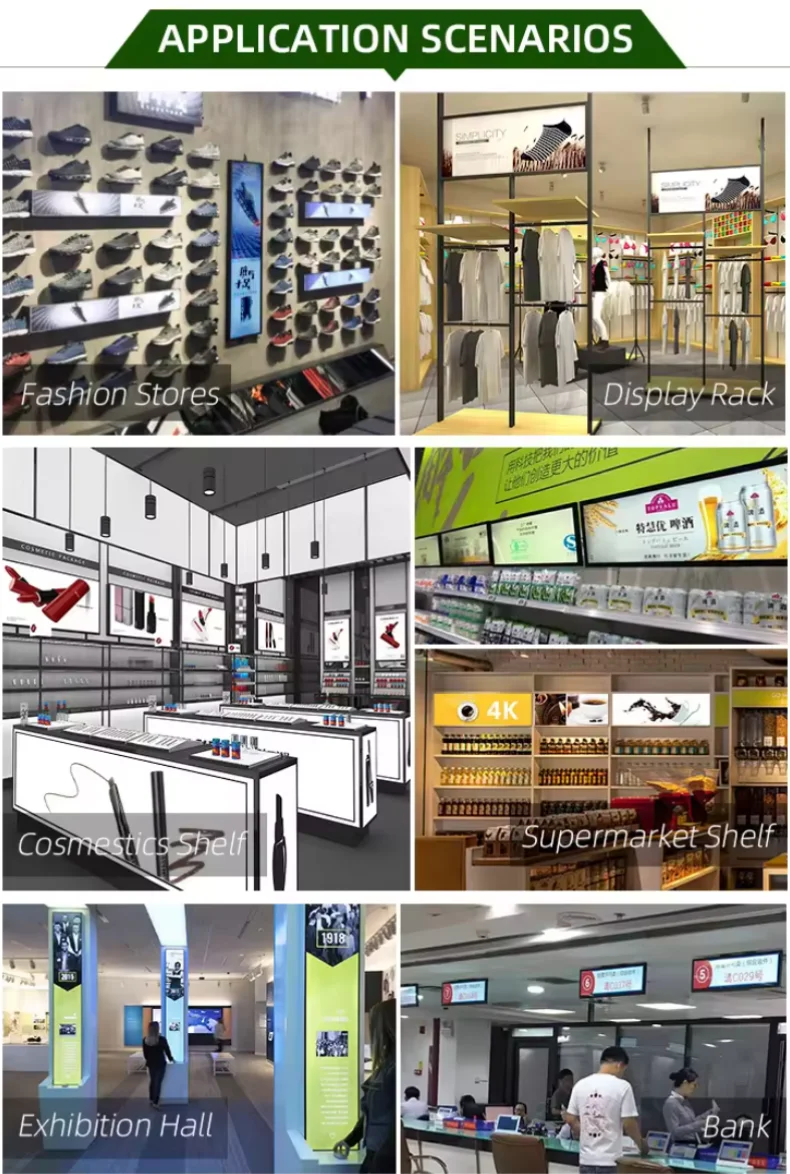

Product Usage
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-8
Related Products
Packing&Shipping

1.About the test
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-9
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-10
2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-11
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-12
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-13
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-14
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-15
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-16
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-17
3.About the Shipping
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-18
VR
Company Introduction
We are a professional factory with over 16 years of experience in the LCD and display peripheral accessories industry, covering R&D, design, production and assembly, and we have been deeply engaged in this field for years to provide high-quality products and services.

Our Core Products
1. LCD Modules: Integrated with display panel, Android/HDMI/Windows mainboard, touch screen and power supply.
2. Full Series Digital Signage: Including hanging window displays, wall-mounted advertising displays, floor-standing advertising displays and mobile cart models, all support touch function.
3. Indoor & Outdoor High-Brightness Screens: Brightness ranges from 300 to 5000 nits, perfectly suitable for various indoor and outdoor applications.
4. Cutting-Edge Technology: Transparent OLED displays, the world’s most advanced display technology.
Six Core Strengths
1. Direct Factory Source: Authorized as a first-class agent for many top international LCD brands, ensuring stable supply.
2. Strong Production Capacity: Million-level clean workshop, specialized in high-end projects for high-brightness and touch displays.
3. Fast Customization: Own sheet metal fabrication factory with full control over materials and design; drawings can be finished in as fast as 1 day.
4. Professional Team: 107 employees in total, including 20 sales staff, 7 R&D engineers and 10 technical support members.
5. Quality Assurance: Certified by SGS and long-term supplier for many Fortune Global 500 companies.
6.Complete Certifications:Our products support certifications including UL, CE, KC, 3C, PSE, RoHS, FCC and UKCA.
Cooperation Commitments
1. Support 24-hour online video factory audit; we can hang your brand logo during the audit to build trust.
2. Accept non-quality-related returns after receipt, provided the goods do not affect resale.
3. Provide on-site team service for partners with annual turnover over USD 2,000,000.
Welcome to visit our website: www.caisonlcd.com to view our full product range.
We look forward to establishing long-term cooperation with you. Thank you!
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-19
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-20
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-21
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-22
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-23
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-24
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-25
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-26
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-27
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-28
product boe 338 inch 700 nits high brightness display lcd panel rv338fbm n00 2560rgb720 stretched bar digital screens-29
FAQ
1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
