1. Visible under ultra bright direct sunlight
2.Large temperature range for use from -30℃ to 70℃. 3.Widely used in various outdoor high and low temperature complex harsh environment display devices
Specification of the LCD panel |
||||||
Panel Brand |
CAISON |
Panel Model |
CS10436DA-10 |
|||
Panel Size |
10.4 inch |
Panel Type |
a-Si TFT-LCD, LCM |
|||
Resolution |
1024(RGB)×768 |
Pixel Format |
RGB Vertical Stripe |
|||
Active Area |
210.4(W)×157.8(H) mm |
Outline Dim |
220.53(H)×168.02(V)×1.04(D) mm |
|||

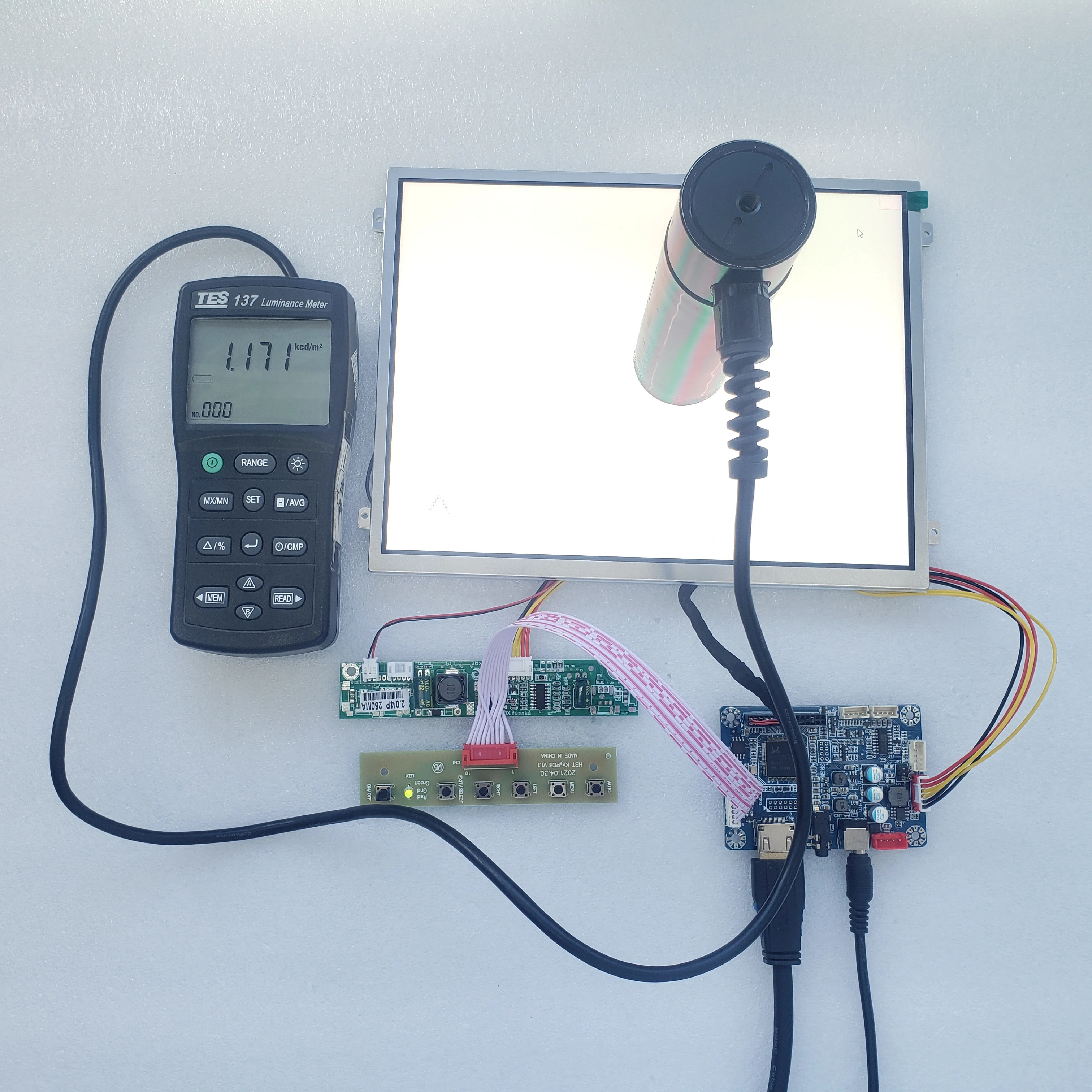

Brightness |
1000 cd/m² (Typ.) |
Contrast Ratio |
1000:1 (Typ.) (TM) |
|||
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Response Time |
25 (Typ.)(G to G) |
|||
Interface Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
Power Supply |
3.3V (Typ.) |
|||
Environment |
Operating Temp.: -30 ~ 80 °C |
|||||

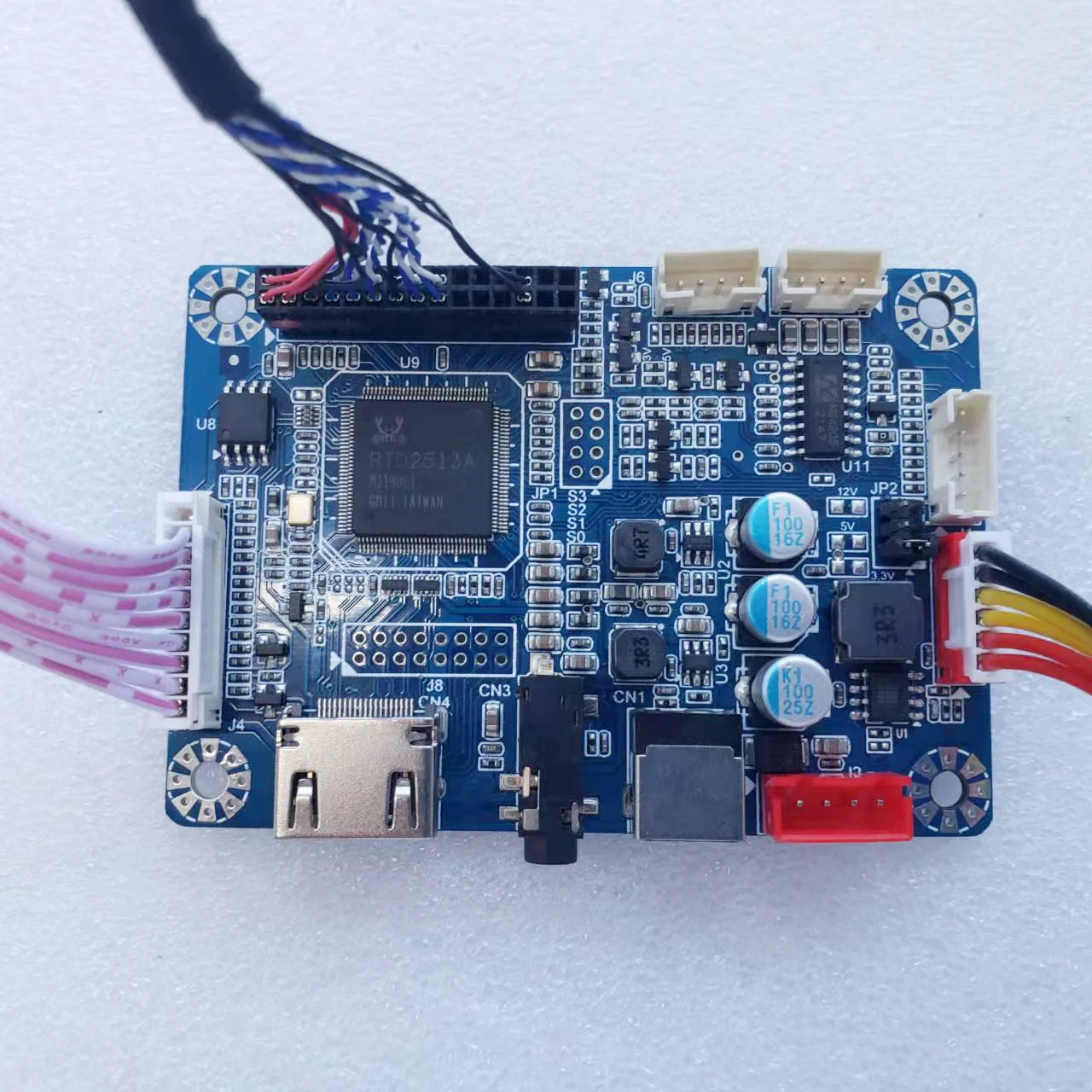

Specification of the board |
||||||
Model No. |
RTD2513A |
Signal Interface |
Dual Channel 8 bit LVDS |
|||
Power for Board |
12V |
Keypad |
6 Keys |
|||
Input Source |
HDM-I 1.4A |
Outline Dimention |
80.5(L)×56.5(W)X9(H)mm |
|||
Speaker |
8Ω/2W |
Operating Temperature |
-20℃ To +70℃ |
|||
