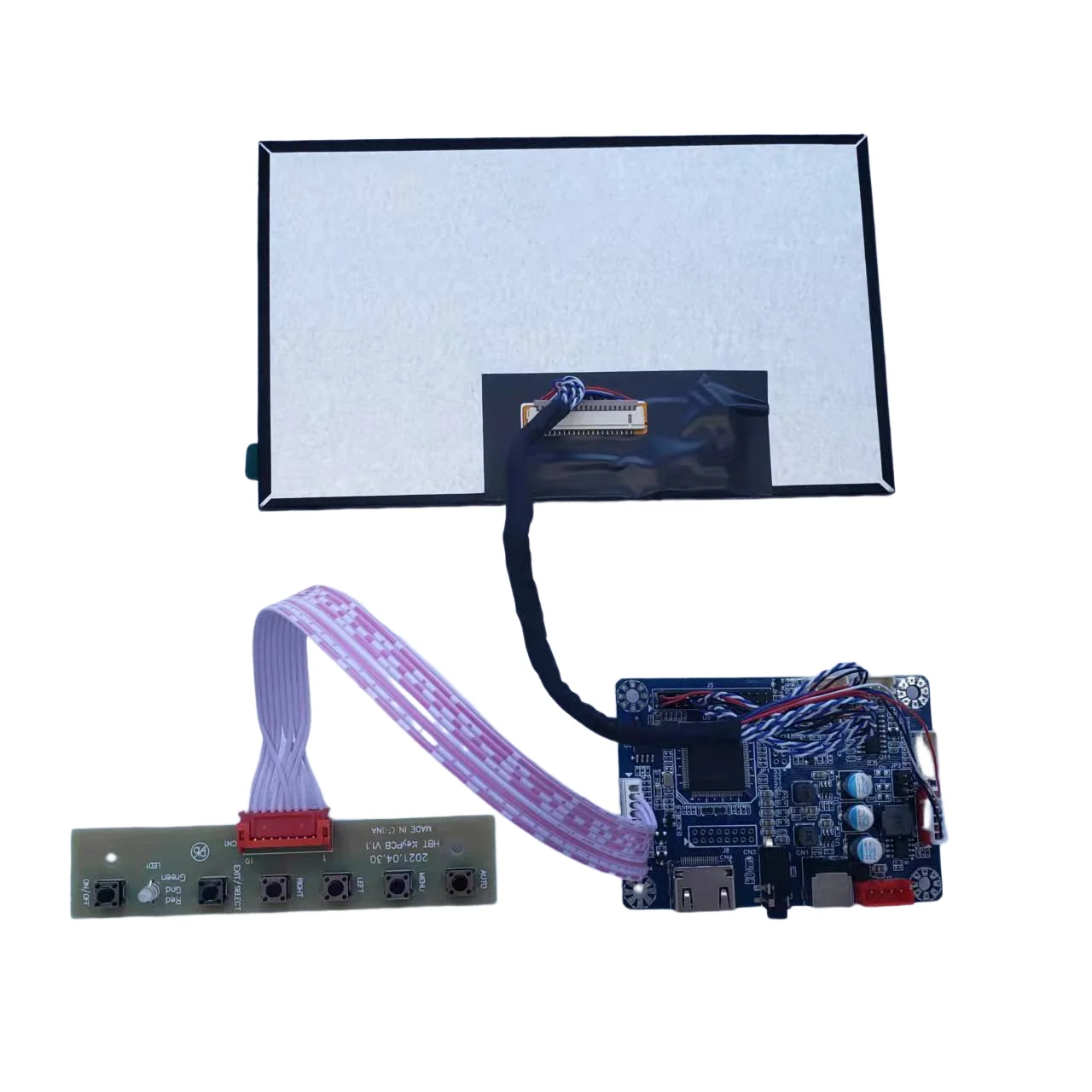

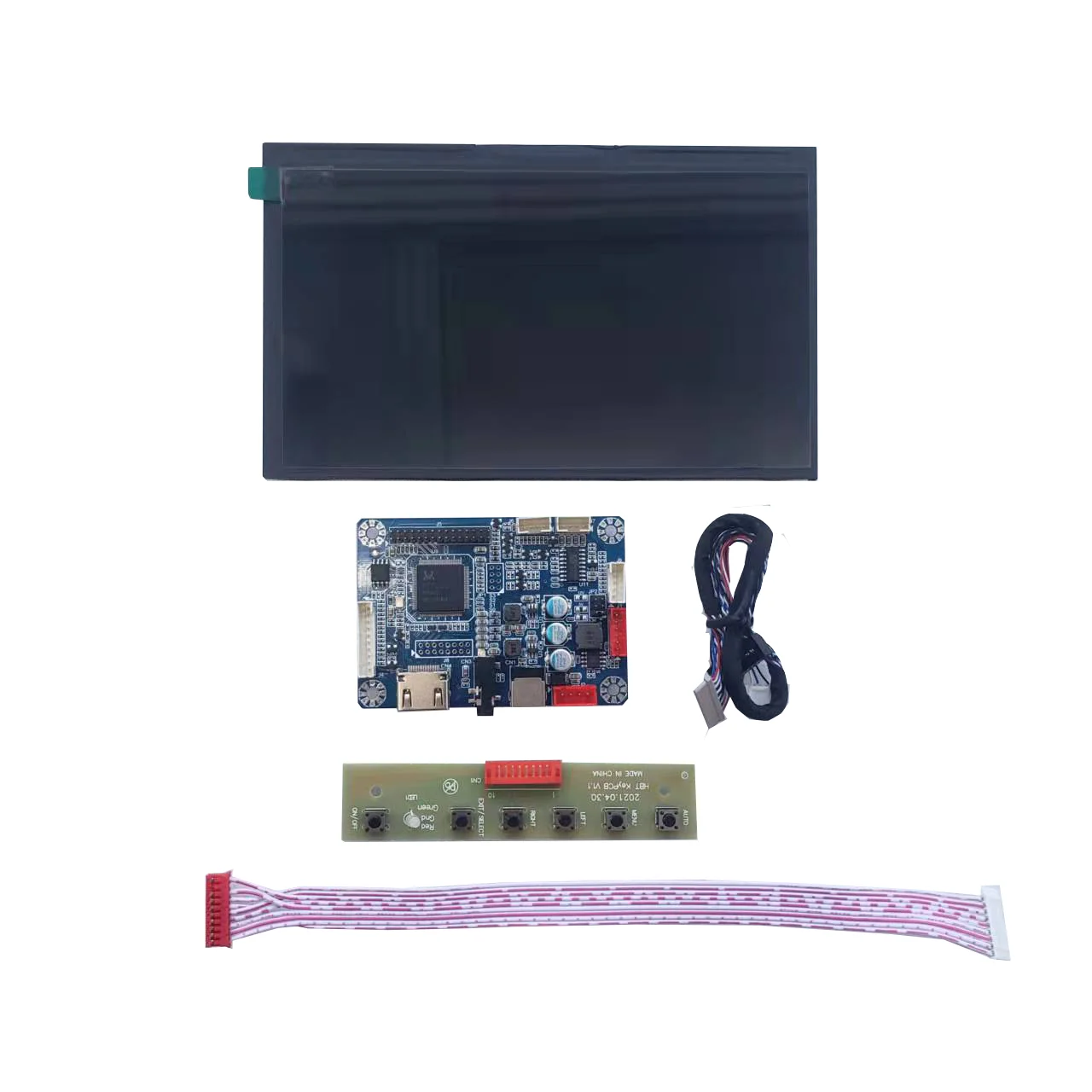

1000 Nit 7 Inch 1024x600 Resolution High Brightness LCD Module Screen CS07036DA-10 with Rtd2513A for Outdoor Display

Product Description

1000 nit 7 inch 1024x600 resolution High Brightness LCD Module Screen CS07036DA-10 with rtd2513A for Outdoor display

Features of high brightness screen

1. Visible under ultra bright direct sunlight.
2.Large temperature range for use from -30℃ to 70℃.

3.Widely used in various outdoor high and low temperature complex harsh environment display devices.

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-3

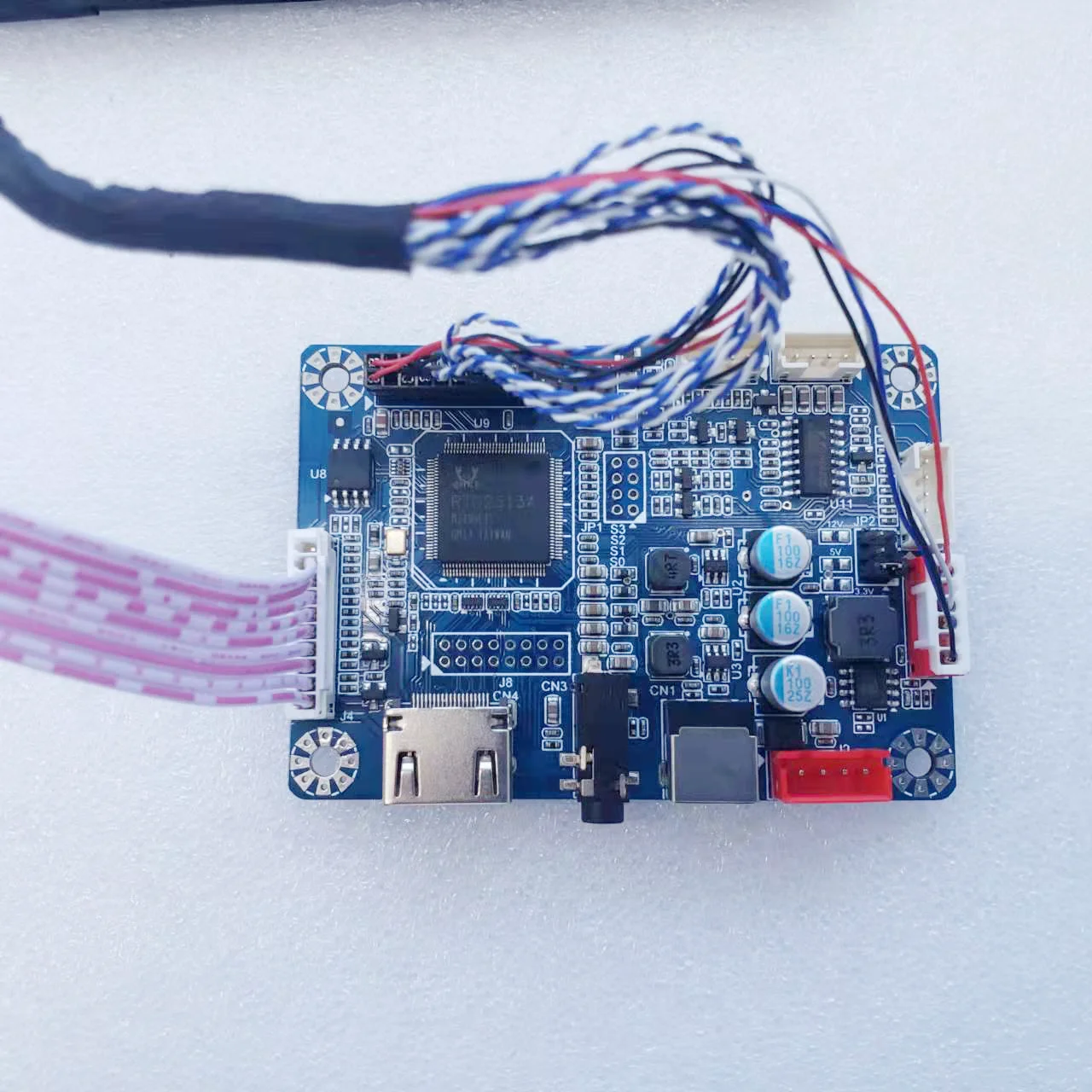

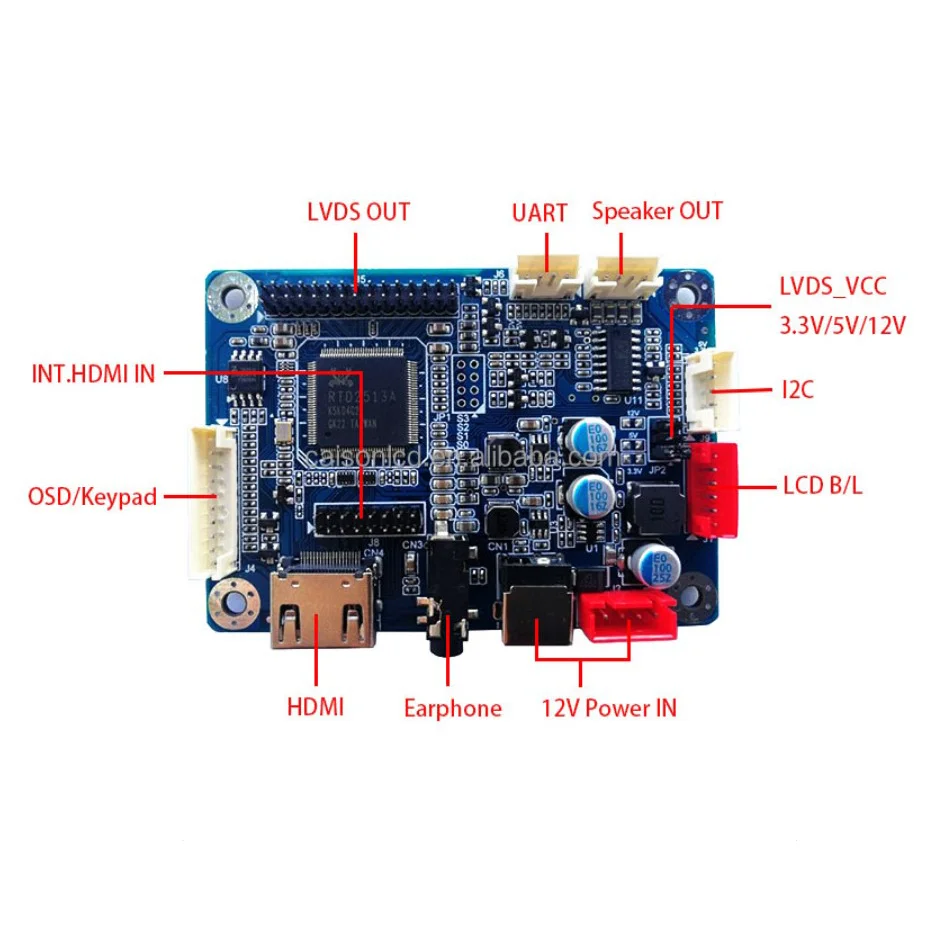

Board detail diagram---- RTD2513A

1.multi-purpose LCD monitor controller board 2. support dual/single 6/8 bit LVDS LCD panel

3.resolution can up to 1920X1200 @60Hz 4.support HDM-I 1.4a signal input
5.speaker output is 2X4Ω/3W and support earphone

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-4

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-5

Specification

Specification of the LCD panel
Panel Brand	CAISON	Panel Model	CS07036DA-10
Panel Size	7 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600	Pixel Format	RGB Vertical Stripe
Active Area	154.2144(H) ×85.92(V)	Outline Dim	165(H)×100(V)×5.7(D) mm
Brightness	1000 cd/m² (Typ.)	Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Response Time	25 (Typ.)(G to G)
Interface Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector	Power Supply	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C
Specification of the board
Model No.	RTD2513A	Signal Interface	Dual Channel 8 bit LVDS
Power for Board	12V	Keypad	6 Keys
Input Source	HDM-I 1.4A	Outline Dimention	80.5(L)×56.5(W)X9(H)mm
Speaker	8Ω/2W	Operating Temperature	-20℃ To +70℃

Related Products

Packing&Shipping

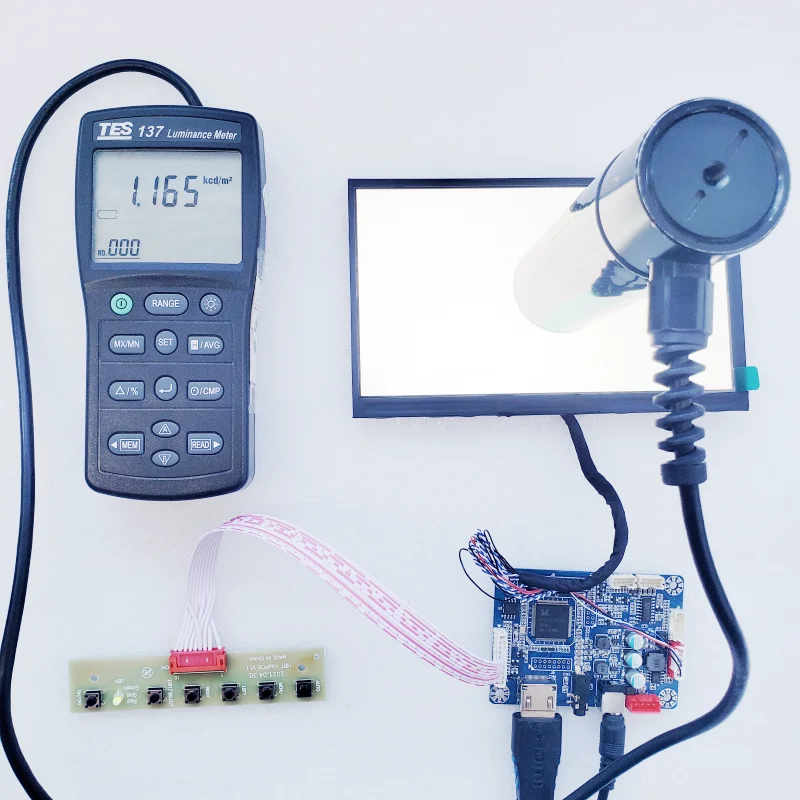

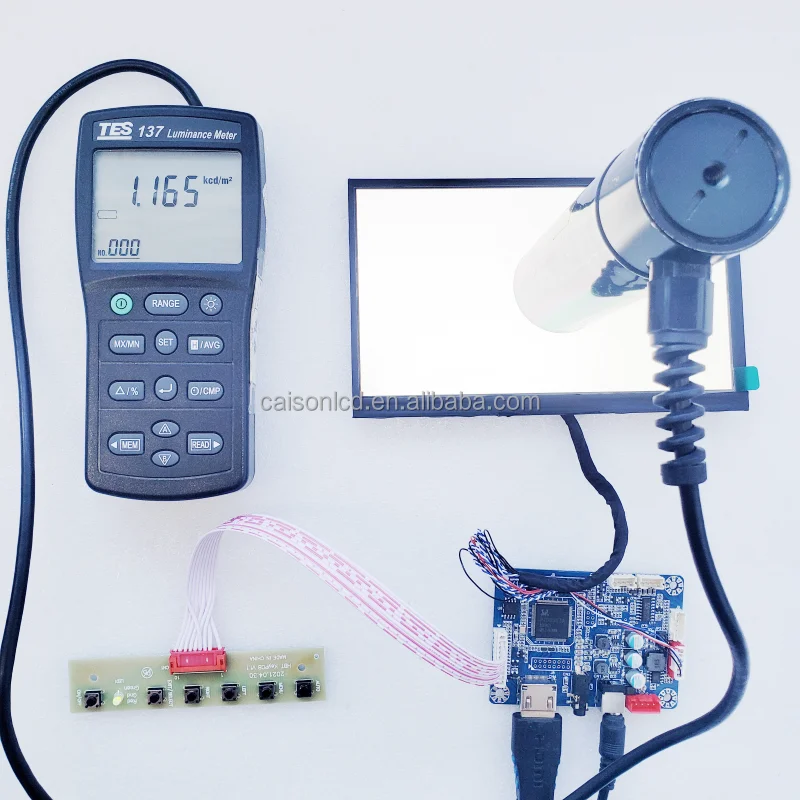

1.About the test

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-6

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-7

2.About the Packing

EPE with Carton with Carton & Plywood case EPE with Carton&Pallet

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-8

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-9

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-10

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-11

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-12

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-13

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-14

3.About the Shipping

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-15

Company Introduction

Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
LCD/LED panel(4.3 inch -110 inch );
LCD kits(1080P-5K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);
High brightness panel;
We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-16

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-17

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-18

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-19

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-20

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-21

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-22

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-23

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-24

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-25

product 1000 nit 7 inch 1024x600 resolution high brightness lcd module screen cs07036da 10 with rtd2513a for outdoor display-26

FAQ

1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
