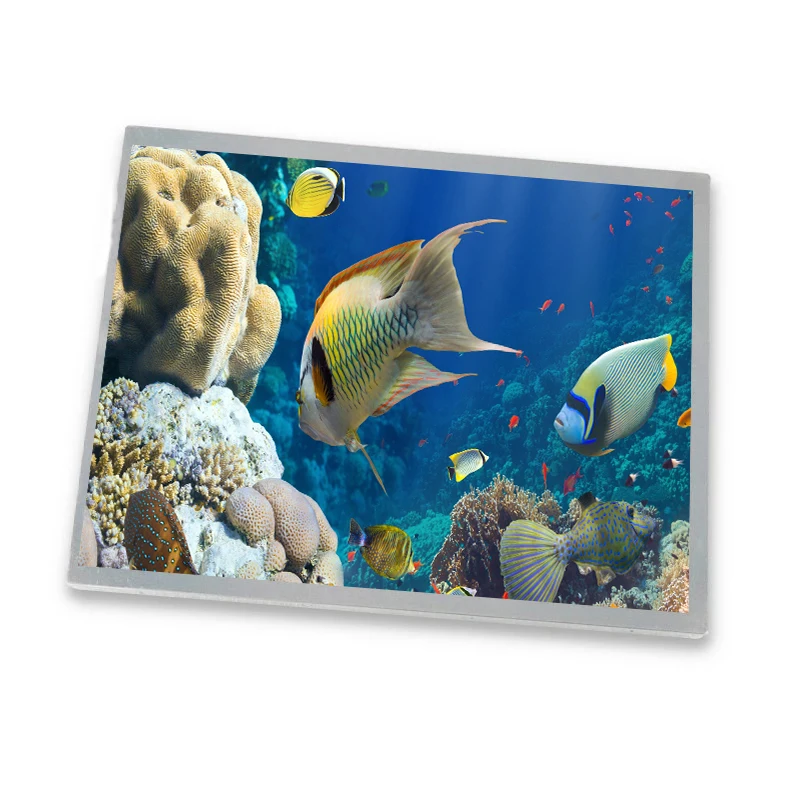

10.4-Inch 1024 * 76 60Hz LCD Panel 20P LVDS with 400Nits for Digital Signage and Displays Model NL10276BC20-18
10.4-Inch 1024 * 76 60Hz LCD Panel 20P LVDS with 400Nits for Digital Signage and Displays Model NL10276BC20-18
10.4-Inch 1024 * 76 60Hz LCD Panel 20P LVDS with 400Nits for Digital Signage and Displays Model NL10276BC20-18
10.4-Inch 1024 * 76 60Hz LCD Panel 20P LVDS with 400Nits for Digital Signage and Displays Model NL10276BC20-18
10.4-Inch 1024 * 76 60Hz LCD Panel 20P LVDS with 400Nits for Digital Signage and Displays Model NL10276BC20-18
10.4-Inch 1024 * 76 60Hz LCD Panel 20P LVDS with 400Nits for Digital Signage and Displays Model NL10276BC20-18
10.4-Inch 1024 * 76 60Hz LCD Panel 20P LVDS with 400Nits for Digital Signage and Displays Model NL10276BC20-18
10.4-Inch 1024 * 76 60Hz LCD Panel 20P LVDS with 400Nits for Digital Signage and Displays Model NL10276BC20-18
10.4-Inch 1024 * 76 60Hz LCD Panel 20P LVDS with 400Nits for Digital Signage and Displays Model NL10276BC20-18
10.4-Inch 1024 * 76 60Hz LCD Panel 20P LVDS with 400Nits for Digital Signage and Displays Model NL10276BC20-18
10.4-Inch 1024 * 76 60Hz LCD Panel 20P LVDS with 400Nits for Digital Signage and Displays Model NL10276BC20-18
10.4-Inch 1024 * 76 60Hz LCD Panel 20P LVDS with 400Nits for Digital Signage and Displays Model NL10276BC20-18

10.4-Inch 1024 * 76 60Hz LCD Panel 20P LVDS with 400Nits for Digital Signage and Displays Model NL10276BC20-18

Get a Quote
Product Description
Product Description
Brand
NEC (NEC)
Model
NL10276BC20-18
Diagonal Size
10.4英寸
Panel Type
a-Si TFT-LCD, LCM
Resolution
1024(RGB)×768, XGA, 123PPI
Pixel Format
RGB Vertical Stripe
Active Area
210.4(W)×157.8(H) mm
Bezel Opening
215.4(W)×161.8(H) mm
Outline(mm)
215.4(W)×161.8(H) mm
Treatment
Clear, Hard coating (3H)
Luminance
400 cd/m² (Typ.)
Contrast Ratio
900:1 (Typ.) (TM)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Response
3/15 (Typ.)(Tr/Td)
Good View at
Symmetry
Work Mode
TN, Normally White, Transmissive
Support Color
262K/16.7M 40% NTSC
Backlight
WLED [2 strings] , 70K hours , Optional
Mass
380/400g (Typ./Max.)
Touchscreen
Without
Refresh Rate
60Hz
Signal Type
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Voltage Supply
3.3V (Typ.)
Max. Ratings
Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
Details Images

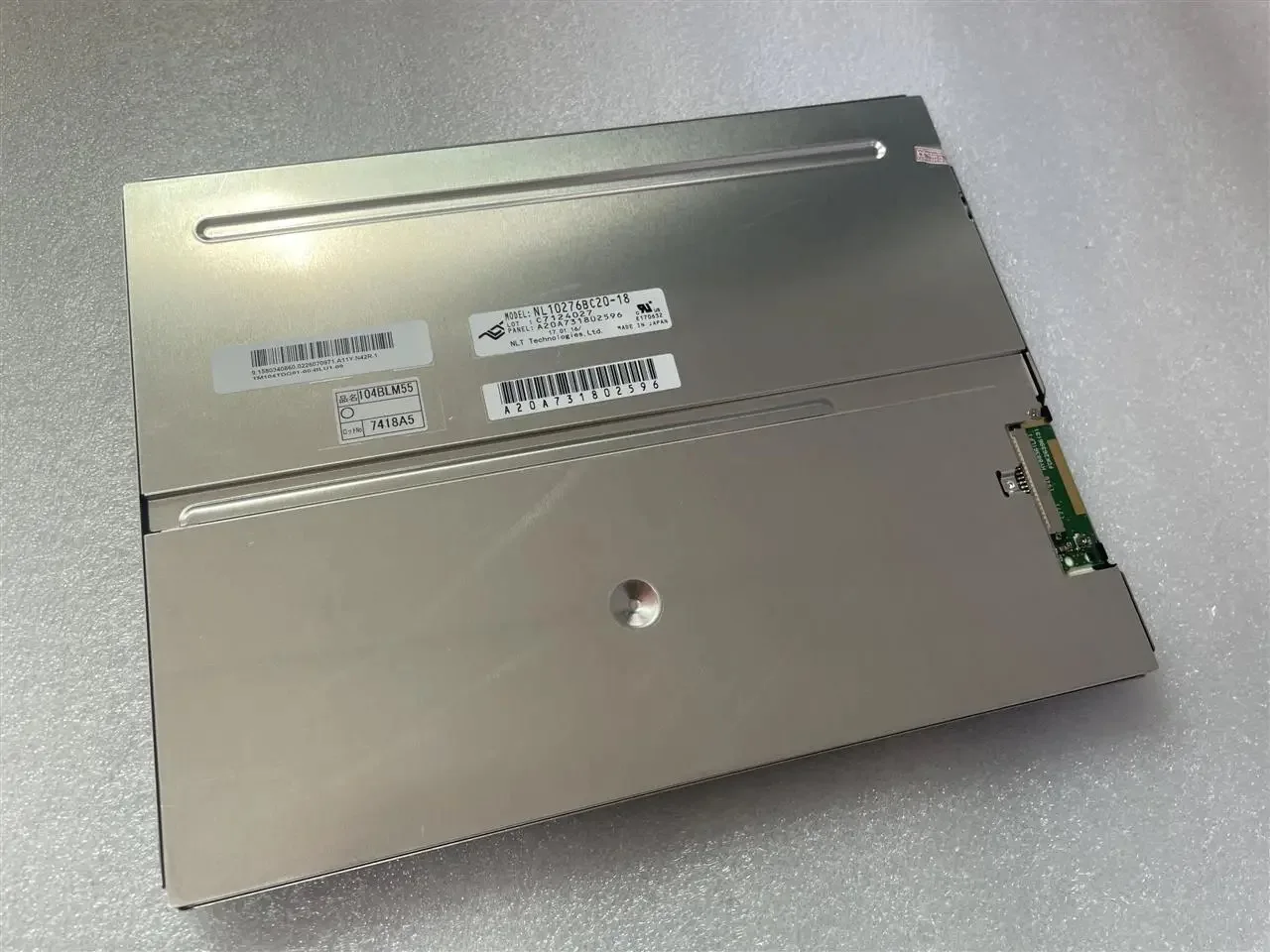

10.4 inch LCD panel NL10276BC20-18 support 1024(RGB)*768,400 nits,LVDS input,60HZ,10.4 INCH Industrial LCD screen
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-1
Product Usage
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-2
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-3
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-4
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-5
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-6
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-7
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-8
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-9
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-10
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-11
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-12
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-13
Related Products
Packing&Shipping

1.About the test
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-14
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-15
2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-16
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-17
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-18
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-19
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-20
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-21
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-22
3.About the Shipping
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-23
Company Introduction
Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）
Round LCD display
Square LCD display
stretched Bar LCD display
LCD advertising machine (4.3 inch -110 inch )
LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)
LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-24
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-25
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-26
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-27
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-28
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-29
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-30
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-31
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-32
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-33
product 104 inch 1024 76 60hz lcd panel 20p lvds with 400nits for digital signage and displays model nl10276bc20 18-34
FAQ
1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
