15.6 Inch 4K (3840*2160) AM-OLED Display Module Panel ATNA56WR06-0 for Media and Advertising Applications

Product Description

Brand	Samsung	Model	ATNA56WR06-0
Diagonal Size	15.6"	Panel Type	AM-OLED, OLED , Full Module
Resolution	3840(RGB)×2160, UHD 283PPI	Pixel Format	RGB Vertical Stripe
Active Area	344.218(W)×193.622(H) mm	Bezel Opening	-
Outline(mm)	348.218(W)×215.572(H)×2.2(D)	Treatment	Glare (Haze 0%)
Luminance	440 (Typ.)(cd/m²)	Contrast Ratio	100000:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Response Time	1 (Typ.)(Tr+Td)
Good View at	Symmetry	Operating Mode	-
Display Colors	1.06B 100% DCI-P3	Light Source	self
Form Style	Slim (PCBA Flat, T≤3.2mm)	Touchscreen	Without
Refresh Rate	60Hz
Signal Type	eDP (4 Lanes) , eDP1.4b , HBR2 (5.4G/lane) , 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -40 ~ 85 °C Operating Temp.: -20 ~ 70 °C

Details Images

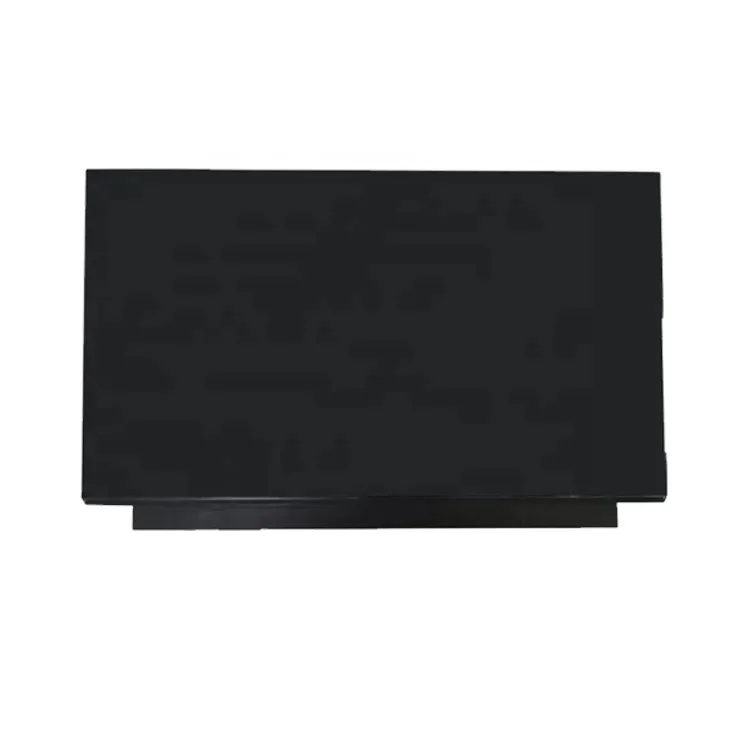

15.6 inch OLED panel , Optional support 3840(RGB)*2160,440 nits, 60HZ,15.6 INCH Industrial OLED screen

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-1

Product Usage

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-2

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-3

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-4

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-5

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-6

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-7

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-8

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-9

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-10

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-11

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-12

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-13

Related Products

Packing&Shipping

1.About the test

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-14

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-15

2.About the Packing

EPE with Carton with Carton & Plywood case EPE with Carton&Pallet

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-16

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-17

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-18

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-19

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-20

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-21

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-22

3.About the Shipping

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-23

Company Introduction

Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）

Round LCD display

Square LCD display

stretched Bar LCD display

LCD advertising machine (4.3 inch -110 inch )

LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)

LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-24

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-25

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-26

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-27

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-28

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-29

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-30

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-31

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-32

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-33

product 156 inch 4k 38402160 am oled display module panel atna56wr06 0 for media and advertising applications-34

FAQ

1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
