22 inch DV220X2M-NV0 Square advertising display 1920x1920 high brightness 500 cd/m2 (Typ.) BOE Display advertising screen
22 inch DV220X2M-NV0 Square advertising display 1920x1920 high brightness 500 cd/m2 (Typ.) BOE Display advertising screen
22 inch DV220X2M-NV0 Square advertising display 1920x1920 high brightness 500 cd/m2 (Typ.) BOE Display advertising screen
22 inch DV220X2M-NV0 Square advertising display 1920x1920 high brightness 500 cd/m2 (Typ.) BOE Display advertising screen
22 inch DV220X2M-NV0 Square advertising display 1920x1920 high brightness 500 cd/m2 (Typ.) BOE Display advertising screen
22 inch DV220X2M-NV0 Square advertising display 1920x1920 high brightness 500 cd/m2 (Typ.) BOE Display advertising screen

22 inch DV220X2M-NV0 Square advertising display 1920x1920 high brightness 500 cd/m2 (Typ.) BOE Display advertising screen

Get a Quote
Product Description

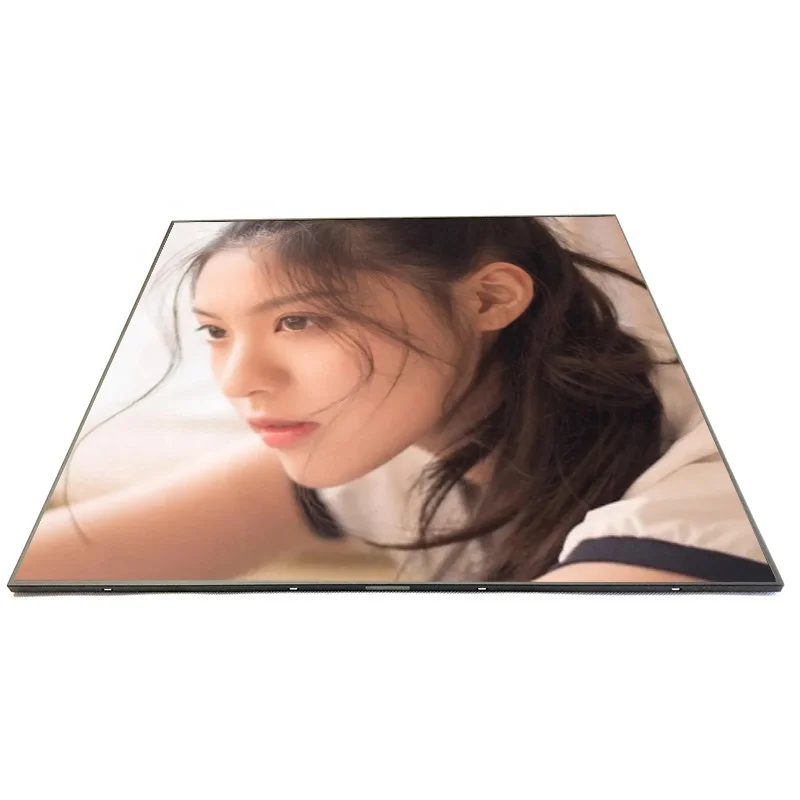

Product Picture
m2 typ boe display advertising screen-1
m2 typ boe display advertising screen-2
22 inch Square LCD monitor support 1920*1920 (RGB) and 300 nits

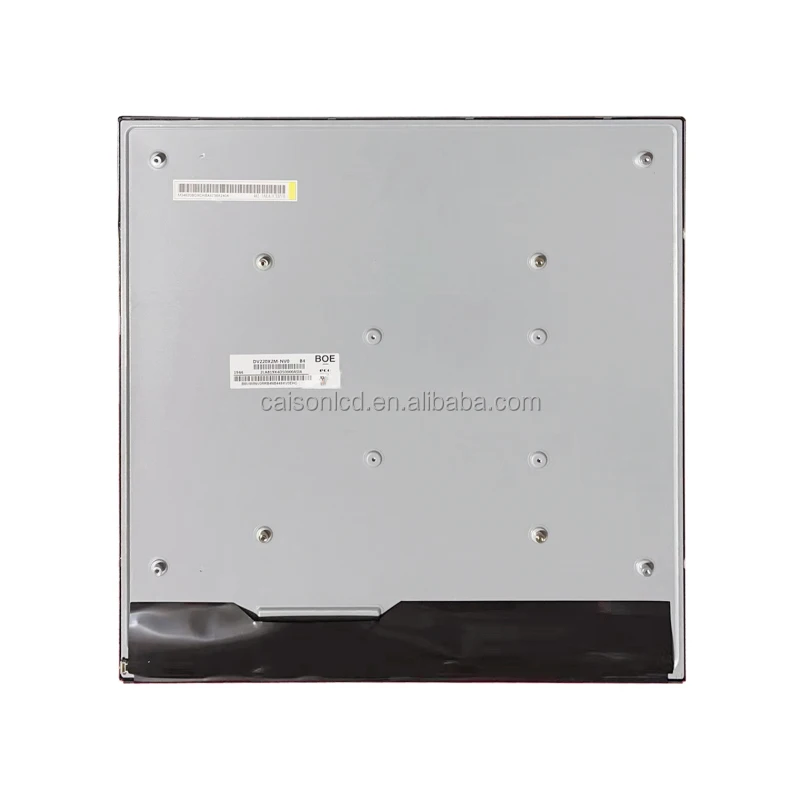

The lcd module inside the display
Two options:Control board or Android board
Product Description
Panel Brand
BOE
Panel Model
DV220X2M-NV0
Panel Size
22 inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1920 81PPI
Pixel Format
RGB Vertical Stripe
Display Area
394.56(W)×394.56(H) mm
Bezel Opening
398.56(W)×398.56(H) mm
Outline Size
409.56(W)×409.56(H) ×12.6(D) mm
Surface
Antiglare (Haze 25%), Hard coating (3H)
Brightness
500 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Viewing Angle
Symmetry
Display Mode
8 (Typ.)(G to G)
Best View on
89/89/89/89 (Typ.)(CR≥10)
Response Time
IPS, Normally Black, Transmissive
Display Colors
16.7M 72% NTSC
Lamp Type
13S4P WLED , 30K hours , Without Driver
Frequency
60Hz
Touch Screen
Without
Signal Interface
LVDS (4 ch, 8-bit) , 92 pins Connector
Input Voltage
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Details Images
m2 typ boe display advertising screen-3
m2 typ boe display advertising screen-4
m2 typ boe display advertising screen-5
m2 typ boe display advertising screen-6
m2 typ boe display advertising screen-7
m2 typ boe display advertising screen-8

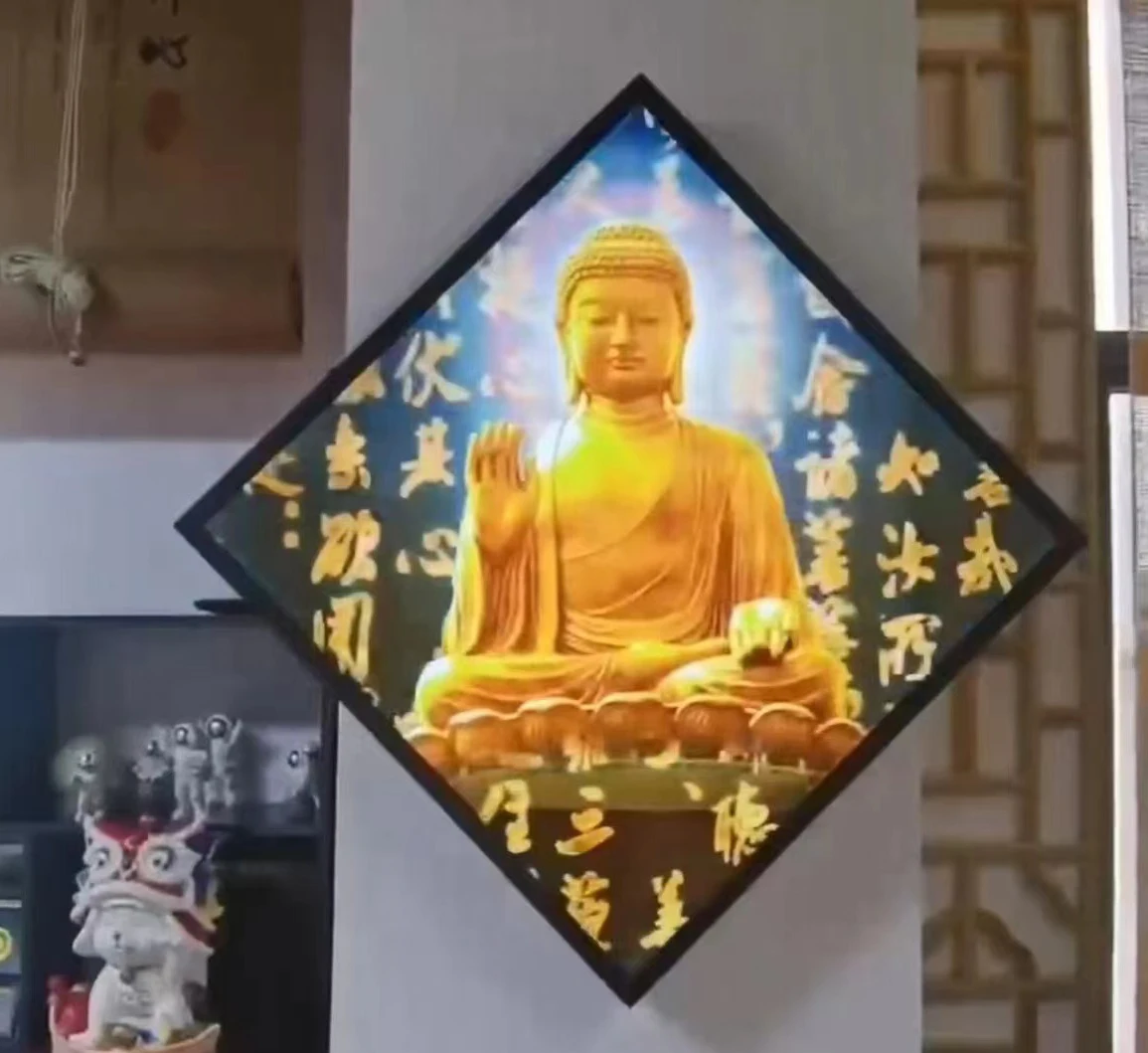

Product Usage
m2 typ boe display advertising screen-9
Related Products
Packing&Shipping

1.About the test
m2 typ boe display advertising screen-10
m2 typ boe display advertising screen-11
2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
m2 typ boe display advertising screen-12
m2 typ boe display advertising screen-13
m2 typ boe display advertising screen-14
m2 typ boe display advertising screen-15
m2 typ boe display advertising screen-16
m2 typ boe display advertising screen-17
m2 typ boe display advertising screen-18
3.About the Shipping
m2 typ boe display advertising screen-19
Company Introduction
Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）
Round LCD display
Square LCD display
stretched Bar LCD display
LCD advertising machine (4.3 inch -110 inch )
LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)
LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
m2 typ boe display advertising screen-20
m2 typ boe display advertising screen-21
m2 typ boe display advertising screen-22
m2 typ boe display advertising screen-23
m2 typ boe display advertising screen-24
m2 typ boe display advertising screen-25
m2 typ boe display advertising screen-26
m2 typ boe display advertising screen-27
m2 typ boe display advertising screen-28
m2 typ boe display advertising screen-29
m2 typ boe display advertising screen-30
FAQ
1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
