1.BOE 23.6 inch Circular LCD screen 1280x1280 brightness 1500 cd/m2.
2.AUO 23.6 inch Circular LCD screen 848x848 brightness 700cd/m2.

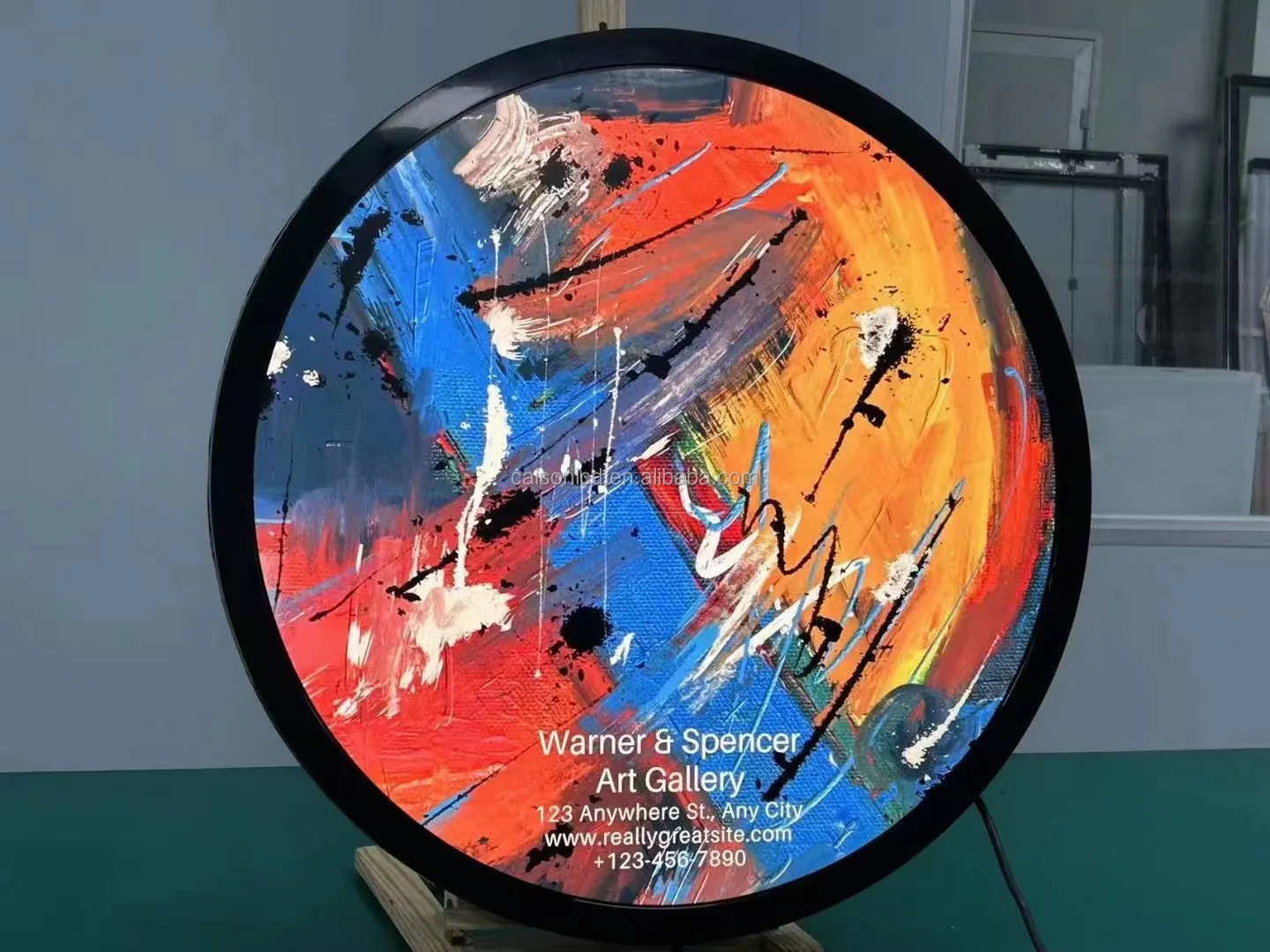

Industrial Round LCD Monitor 700nits High Brightness LVDS Interface 23.6 Inch



Brand |
AUO |
Model |
P236RVN01.0 |
Diagonal Size |
23.6 inch |
Type |
a-Si TFT-LCD , LCM |
Pixel Format |
848(RGB)×848, 35PPI |
Configuration |
RGB Vertical Stripe |
Active Area |
600.384(W)×600.384(H) mm |
Outline Dim. |
663.781(W)×663.781(H) ×27.43(D) mm |
Bezel Area |
604.384(W)×604.384(H) mm |
Treatment |
Antiglare, Hard coating (3H) |
Luminance |
700 cd/m² (Typ.) |
Contrast Ratio |
4000:1 (Typ.) (TM) |
View Direction |
Symmetry |
Response Time |
8 (Typ.)(G to G) |
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Operating Mode |
AMVA3, Normally Black, Transmissive |
Support Color |
16.7M 72% NTSC |
Light Source |
WLED , 50K hours , With LED Driver |
Frame Rate |
60Hz |
Power Supply |
12.0V (Typ.) |
Interface Type |
LVDS (2 ch, 8-bit) , 51 pins Connector |
Environment |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |























We are a professional factory with over 16 years of experience in the LCD and display peripheral accessories industry, covering R&D, design, production and assembly, and we have been deeply engaged in this field for years to provide high-quality products and services.
Our Core Products

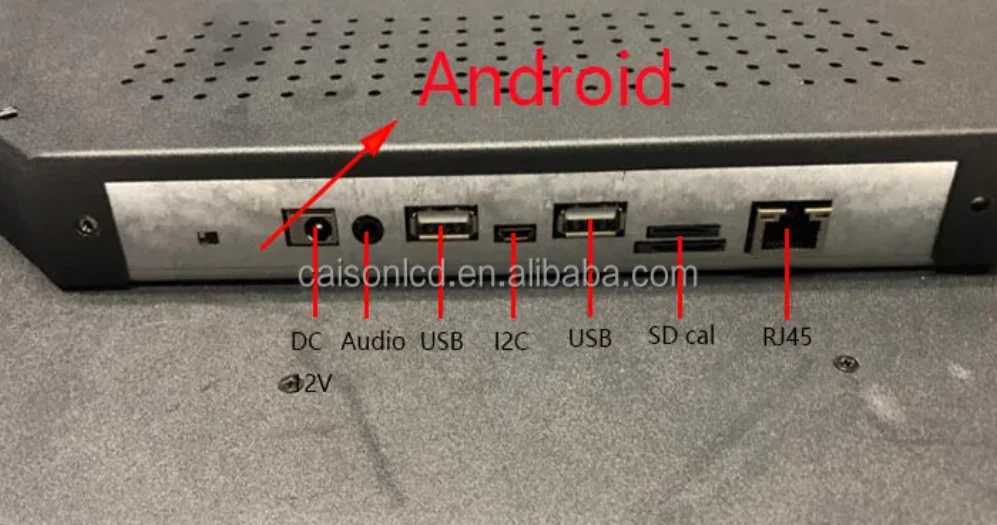

1. LCD Modules: Integrated with display panel, Android/HDMI/Windows mainboard, touch screen and power supply.
2. Full Series Digital Signage: Including hanging window displays, wall-mounted advertising displays, floor-standing advertising displays and mobile cart models, all support touch function.
3. Indoor & Outdoor High-Brightness Screens: Brightness ranges from 300 to 5000 nits, perfectly suitable for various indoor and outdoor applications.
4. Cutting-Edge Technology: Transparent OLED displays, the world’s most advanced display technology.
Six Core Strengths
1. Direct Factory Source: Authorized as a first-class agent for many top international LCD brands, ensuring stable supply.
2. Strong Production Capacity: Million-level clean workshop, specialized in high-end projects for high-brightness and touch displays.
3. Fast Customization: Own sheet metal fabrication factory with full control over materials and design; drawings can be finished in as fast as 1 day.
4. Professional Team: 107 employees in total, including 20 sales staff, 7 R&D engineers and 10 technical support members.
5. Quality Assurance: Certified by SGS and long-term supplier for many Fortune Global 500 companies.
6. Complete Certifications:Our products support certifications including UL, CE, KC, 3C, PSE, RoHS, FCC and UKCA.
Cooperation Commitments
1. Support 24-hour online video factory audit; we can hang your brand logo during the audit to build trust.
2. Accept non-quality-related returns after receipt, provided the goods do not affect resale.
3. Provide on-site team service for partners with annual turnover over USD 2,000,000.
Welcome to visit our website: www.caisonlcd.com to view our full product range.
We look forward to establishing long-term cooperation with you. Thank you!
