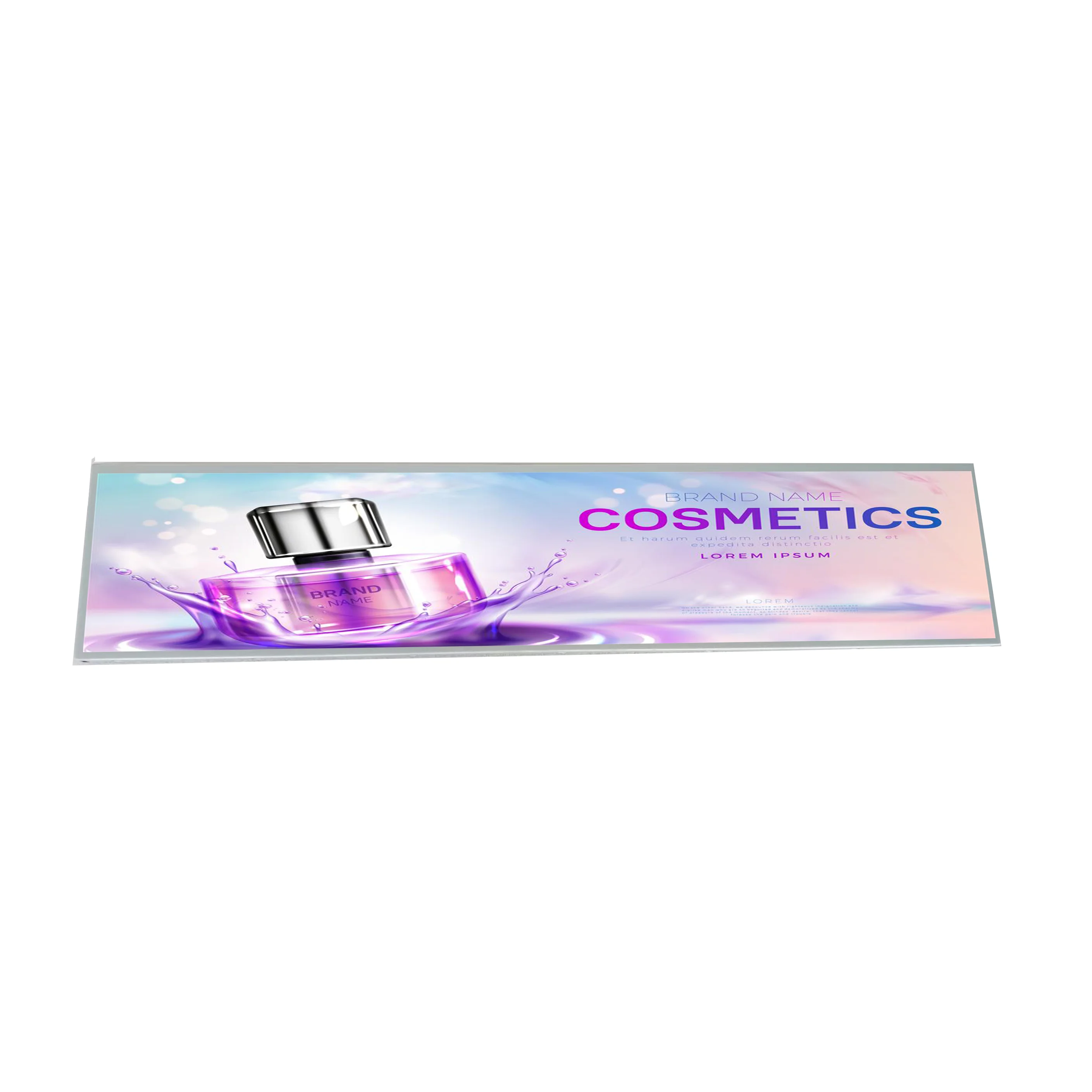

stretched bar lcd display 24 inch dv240fbm nb0 lvds interface commercial digital signage








The description of LCD screen |
||||||
Brand |
BOE |
Model |
DV240FBM-NB0 |
|||
Diagonal Size |
24.0" (1/3 cut of 27.0") |
Panel Type |
a-Si TFT-LCD, LCM |
|||
Resolution |
1920(RGB)×360 81PPI |
Pixel Format |
RGB Vertical Stripe |
|||
Active Area |
597.888(W)×112.104(H) mm |
Bezel Opening |
- |
|||
Outline Size |
612.7(W)×132.1(H)×12.8(D) mm |
Brightness |
300 cd/m² (Typ.) |
|||
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Contrast Ratio |
1200:1 (Typ.) (TM) |
|||
Response Time |
30 (Typ.)(G to G) |
Lamp Type |
WLED , 30K hours , W/O Driver |
|||
Signal Interface |
LVDS (2 ch, 8-bit) 30 pins Connector |
Input Voltage |
5.0V (Typ.) |
|||
Environment |
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
|||||
