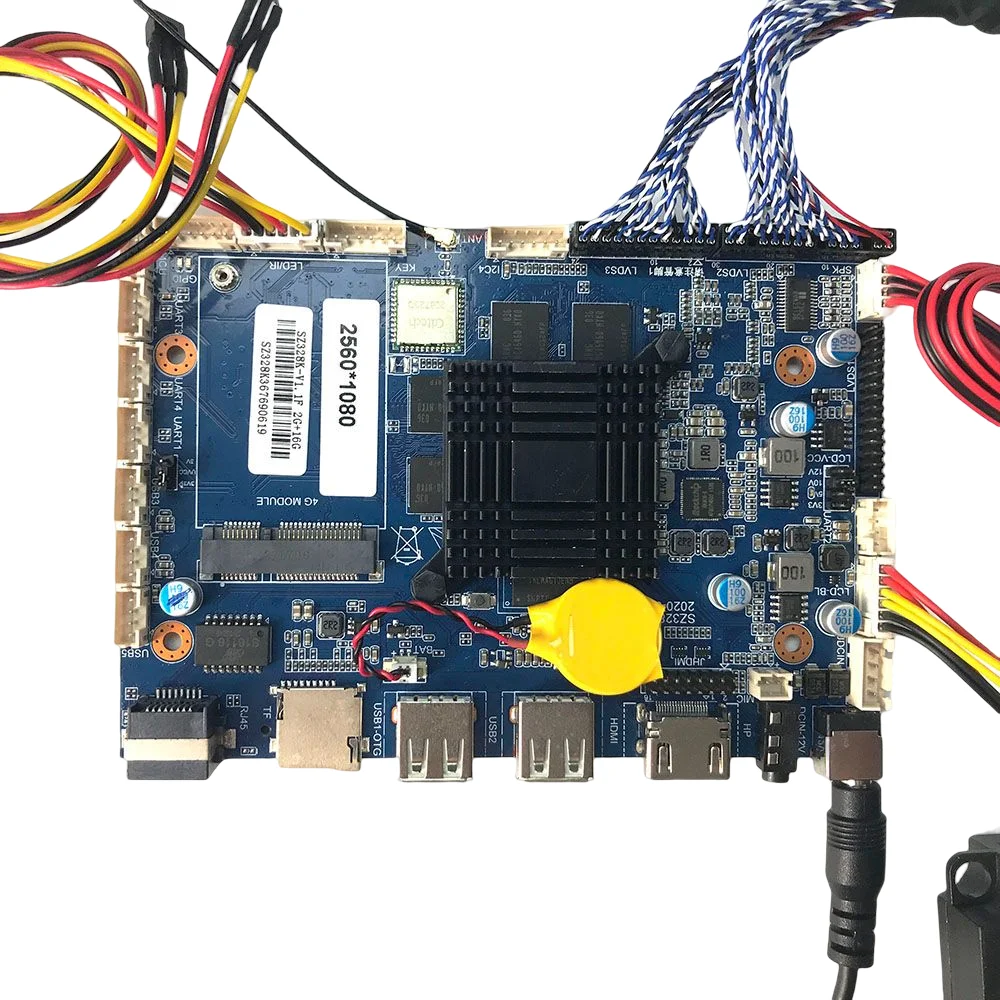

CPU |
RK3288/RK3399 optional |
OS |
Android 7.1/Android 9.0 optional |
RAM |
2GB DDR3(4GB is option |
Network |
Support RJ45 Ethernet, 2.4GHz WIFI,4.0 Bluetoot 4G SIM card |
Internal Storage |
8GB/16G/32G EMMC Flash (Extensible |
Video Format |
RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4, etc |
Decoding Ability |
MAX. 2160P(3840X2160@60HZ) |
Image Format |
BMP/JPEG/PNG/GIF, et |
USB2.0 Port |
Port 5 USB HOST,1 USB OTG/HO |
Ethernet |
10M/100M s |
LVDS Output |
Support 60Hz 6Bit/8Bit Single or Dual Channel LVDS Max Resolution :3840X2160@60H |
eDP Output |
Support 1/2Lanes eDP signal output Max Resolution :1920X1080@60Hz |
Power For Boar |
12V or 12V/5VSB/STB |
Power To LCD pane |
3.3V/5V/12V |
HDMI Output |
Support HDMI2.0 4K@60HZ output |
Audio Outpu |
L&R audio-out（2X8Ω/5W speaker） Earphone(3.5mm Audio jack or PH 4pin Heade |
System Updat |
Support USB/TF Card updat |
Panel Brand |
LG |

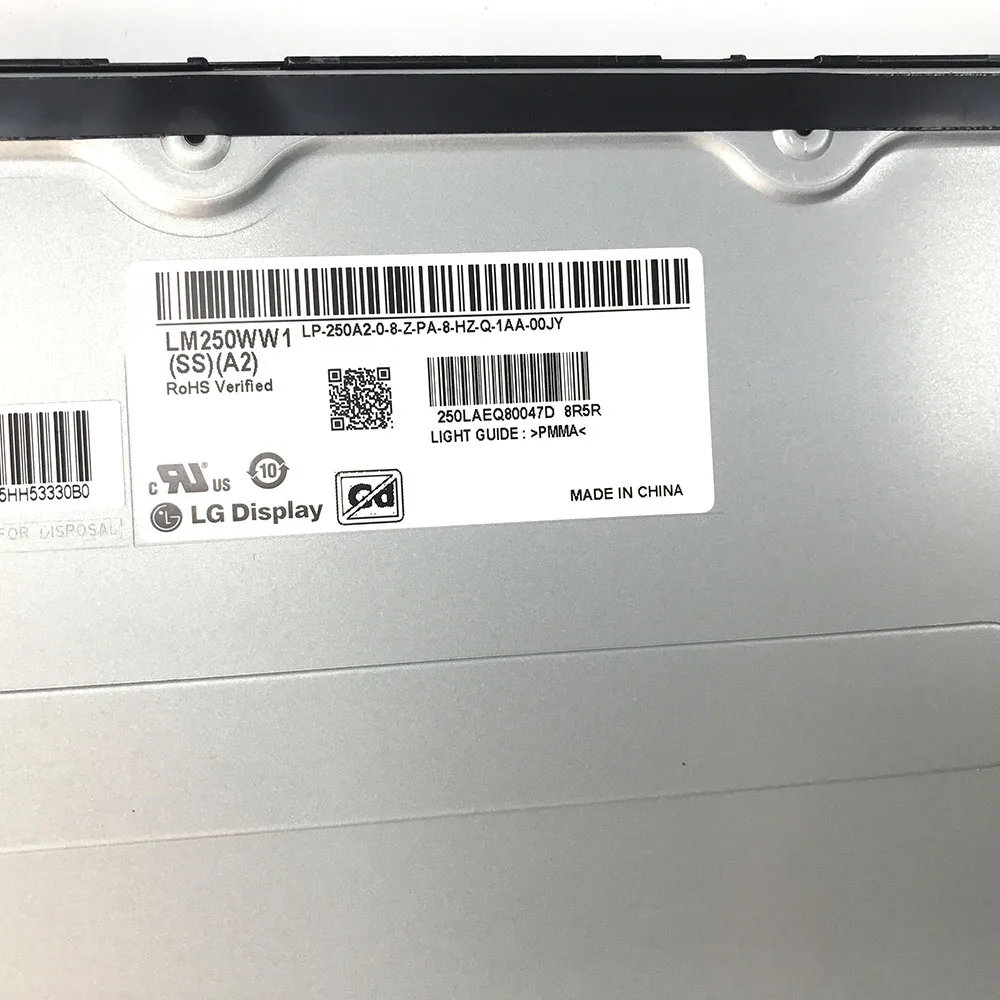

Panel Model |
LM250WW1-SSA3 |
||
Panel Size |
25 inch |
Panel Type |
a-Si TFT-LCD, LCM |
||
Resolution |
2580(RGB)×1080 |
Pixel Format |
RGB Vertical Stripe |
||
Active Area |
585.216(H)×246.888(V) mm |
Outline Dim |
602.2(H)×271.2(V) ×16.5(D) mm |
||
Brightness |
250 cd/m² (Typ.) |
Contrast Ratio |
1000:1 (Typ.) (TM) |
||
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Display Mode |
8(Typ.)(G to G) |
||

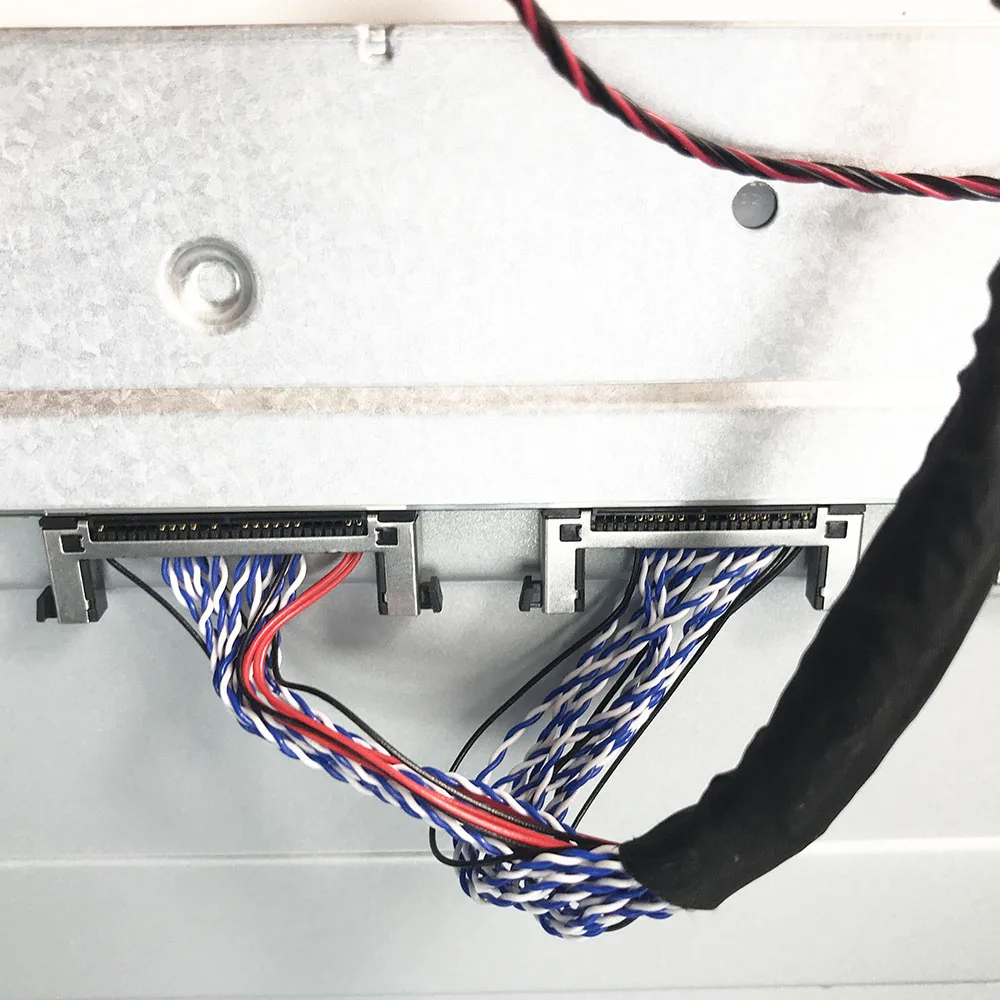

Interface Type |
LVDS (2 ch, 8-bit) , 92 pins Connector |
Power Supply |
10V |
||
Environment |
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
||||
