CS 238FHM N30 1920x1080 High Brightness TFT LCD Panel Industrial Display Screen Module
Specification of the LCD panel |
||||||
Panel Brand |
CAISON |
Panel Model |
CS-270FHB-N20 |
|||
Panel Size |
27 inch |
Panel Type |
a-Si TFT-LCD, LCM |
|||
Resolution |
1920(RGB)×1080, FHD 81PPI |
Pixel Format |
RGB Vertical Stripe |
|||
Brightness |
1000-3000 cd/m² (Typ.) |
Contrast Ratio |
1000:1 (Typ.) (TM) |
|||
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Response Time |
14 (Typ.)(G to G) |
|||
Interface Type |
Single 8bit LVDS |
Power Supply |
5.0V (Typ.) |
|||
Environment |
0℃ To +50℃ |
|||||

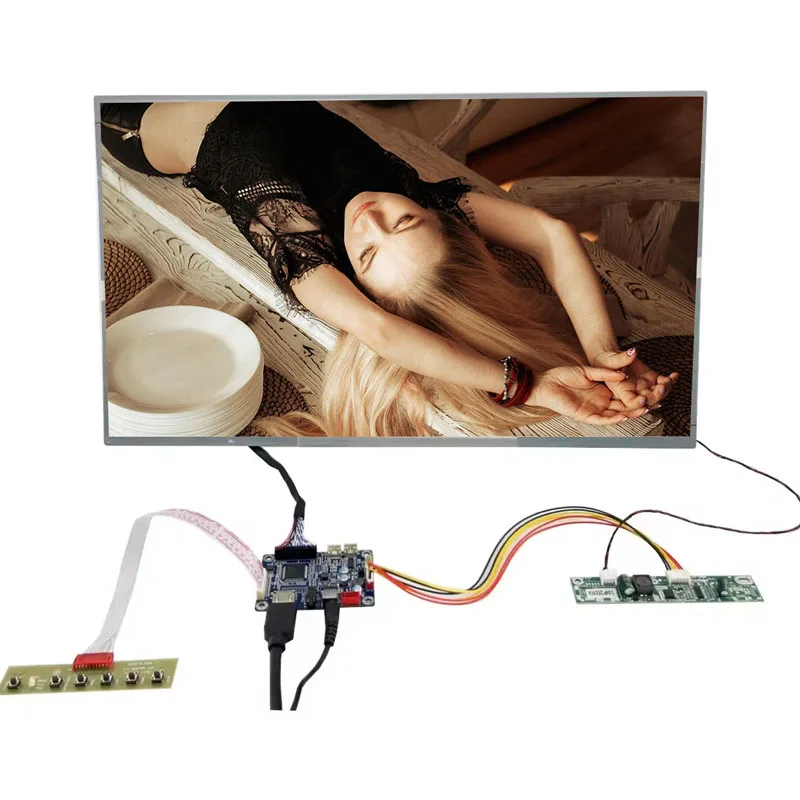

Specification of the board |
||||||
Model No. |
RTD2513A |
Signal Interface |
Dual Channel 8 bit LVDS |
|||
Power for Board |
12V |
Keypad |
6 Keys |
|||
Input Source |
HDM-I 1.4A |
Outline Dimention |
80.5(L)×56.5(W)X9(H)mm |
|||
Speaker |
8Ω/2W |
Operating Temperature |
-20℃ To +70℃ |
|||
