32 Inch High Brightness Lcd Screen 1920x1080 with 2500 Nits, P320HVN07.0 /1/2 Advertising Screen Outdoor

Product Description

Auo High Brightness 32 inch Lcd screen Resolution 1920x1080 Brightness 2500(typ.)P320HVN07.0/P320HVN07.1/P320HVN07.2 Advertising Screen Outdoor

Diagonal Size	32.0"	Panel Type	a-Si TFT-LCD,LCM
Resolution	1920(RGB)×1080,FHD 69PPI	Pixel Format	RGB Vertical Stripe
Active Area	698.4(W)×392.85(H)mm	Bezel Opening	701.4(W)×395.85(H)mm
Outline(mm)	721.2×415.65×58.5(H×V×D)	Treatment	Antiglare(Haze 28%),Hard coating(3H)
Luminance	2500 cd/m²(Typ.)	Contrast Ratio	4000:1(Typ.)(TM)
Viewing Angle	89/89/89/89(Typ.)(CR≥10)	Response	8(Typ.)(G to G)ms
Good View at	Symmetry	Work Mode	AMVA3,Normally Black,Transmissive
Color Depth	16.7M 72%sRGB	Backlight	WLED,70K hours,With LED Driver
Mass	5.20Kgs	Touchscreen	Without
Refresh Rate	60Hz
Signal Type	LVDS(2ch,8-bit),51 pins Connector
Voltage Supply	12.0V(Typ.)
Max.Ratings	Storage Temp.:-20～60℃ Operating Temp.:-20～60℃

Details Images

We can also provide high-brightness screens in the following sizes and related accessories. We accept customization for any brightness level of high-brightness screens：

Brand	Size	Resolution	Brightness	Appearance Size	Operating Temperature
Caison	7	1024*600	500-1000	1651005.7MM	-10-70℃
Caison	10.1	1280*800	1000-1500	229.46149.17.2MM	-20-70℃
Caison	12.1	1280*800	1000-1500	277.7180.69.1MM	-20-70℃
Caison	12.1	1024*768	1000-1500	260.52048.6MM	-20-70℃
Caison	13.3	1920*1080	1000-1500	307.6183.57.4MM	-20-70℃
Caison	15.6	1920*1080	1000-1500	360212.35.7MM	-30-70℃
Caison	17	1280*1024	1000	358.5296.510.8MM	0-50℃
Caison	17.3	1920*1080	1000-1500	40324013MM	0-70℃
Caison	18.5	1920*1080	1000-1500	414.96239.141.05MM	-30-80℃
Caison	19	1280*1024	1000	39632411.7MM	-30-85℃
Caison	21.5	1920*1080	1000-2000	495.6292.2105MM	-20-85℃
Caison	23.8	1920*1080	1000-1500	544.8320.511.5MM	-20-50℃
Caison	27	1920*1080	1000-1500	630368.211.3MM	-20-40℃
Caison	27	1920*1080	700-1500	630368.213MM	-20-60℃
Caison	32	1920*1080	1000-2500	731.9431.451.5MM	-20-70℃
Caison	32	1920*1080	1000-2500	731.9431.451.5MM	0-50℃
Caison	43	1920*1080	1000-2500	973.856743MM	-20-70℃
Caison	49	1920*1080	1000-2500	1106.4641.661.8MM	0-50℃
Caison	55	1920*1080	1000-2500	1242.171857.9MM	-30-80℃
Caison	55	3840*2160	1000-2500	1242.171857.9MM	-20-60℃
Caison	55	1920*1080	1000-2500	1242.171857.9MM	-20-60℃
Caison	75	3840*2160	1000-2500	1684.7972.448.9MM	0-50℃
Caison	75	3840*2160	1000-2500	1684.7972.448.9MM	0-50℃
Caison	98	3840*2160	1000-2500	2192.81248.452.3MM	-20-60℃
Caison	98	3840*2160	500-700	2192.81248.452.3MM	-20-60℃

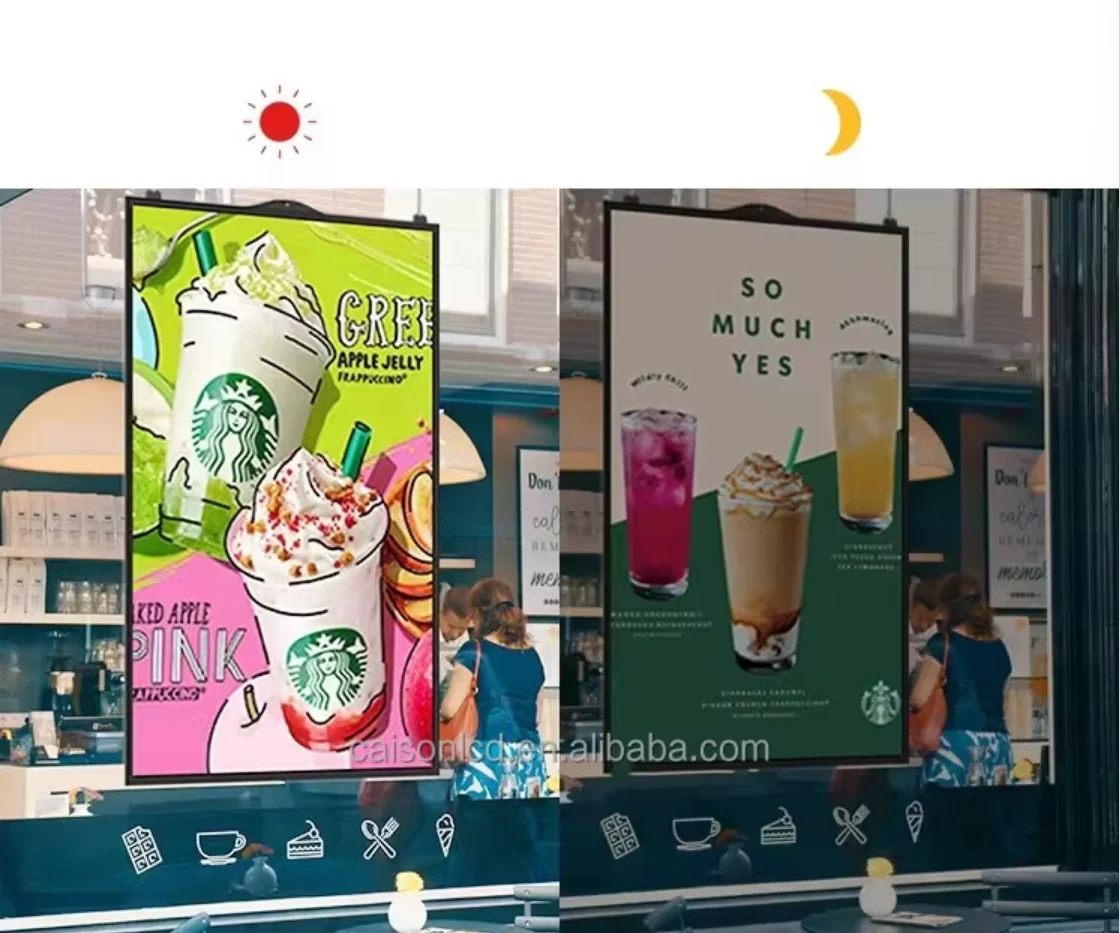

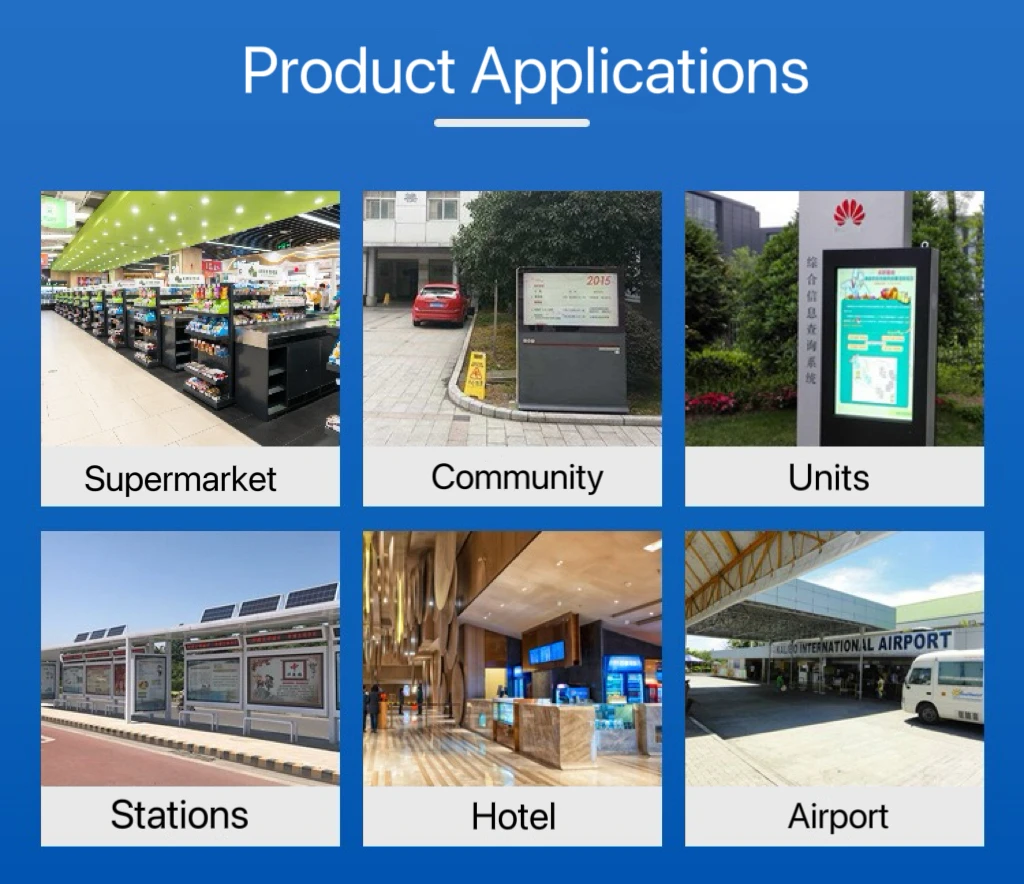

Product Usage

Related Products

Packing&Shipping

1.About the test

2.About the Packing

EPE with Carton with Carton & Plywood case EPE with Carton&Pallet

3.About the Shipping

Company Introduction

Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch/77inch）

Round LCD display

Square LCD display

stretched Bar LCD display

LCD advertising machine (4.3 inch -110 inch )

LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -4000 brightness)

LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!

FAQ

1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
