33 inch DV332X2M Square advertising display 1920x1920 high brightness 550 cd/m2 (Typ.) with HDM1 VGA controller board
33 inch DV332X2M Square advertising display 1920x1920 high brightness 550 cd/m2 (Typ.) with HDM1 VGA controller board
33 inch DV332X2M Square advertising display 1920x1920 high brightness 550 cd/m2 (Typ.) with HDM1 VGA controller board
33 inch DV332X2M Square advertising display 1920x1920 high brightness 550 cd/m2 (Typ.) with HDM1 VGA controller board
33 inch DV332X2M Square advertising display 1920x1920 high brightness 550 cd/m2 (Typ.) with HDM1 VGA controller board
33 inch DV332X2M Square advertising display 1920x1920 high brightness 550 cd/m2 (Typ.) with HDM1 VGA controller board

33 inch DV332X2M Square advertising display 1920x1920 high brightness 550 cd/m2 (Typ.) with HDM1 VGA controller board

Get a Quote
Product Description
Product Picture
m2 typ with hdm1 vga controller board-1
m2 typ with hdm1 vga controller board-2
m2 typ with hdm1 vga controller board-3
m2 typ with hdm1 vga controller board-4
m2 typ with hdm1 vga controller board-5
m2 typ with hdm1 vga controller board-6

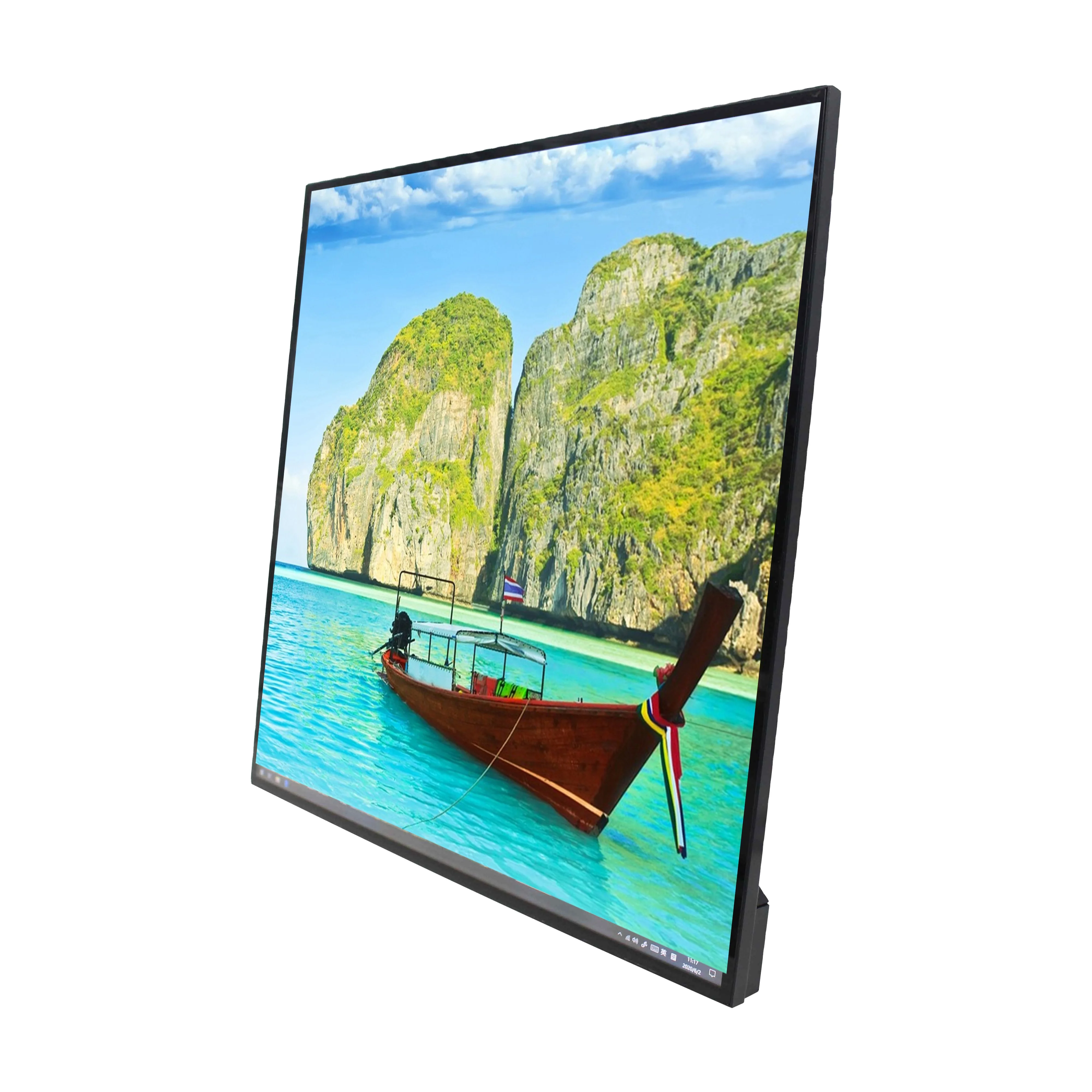

33 inch Square LCD monitor support 1920*1920 (RGB) and 420 nits, 619.46(W)*619.46(H) for digital signage
m2 typ with hdm1 vga controller board-7
m2 typ with hdm1 vga controller board-8
m2 typ with hdm1 vga controller board-9
The size of the display:
Outline size:619.46(W)*619.46(H)mm
Display size:597.16(W)*597.16(H)mm
m2 typ with hdm1 vga controller board-10
The lcd module inside the display
Two options:Control board or Android board
Product Description
The description of LCD screen
Brand
BOE
Model
DV332X2M-NV0
Diagonal Size
33 inch
Type
LCM, a-Si TFT-LCD
Pixel Format
1920(RGB)×1920
Configuration
RGB Vertical Stripe
Lamp Type
Flat Rectangle
Outline Dim.
619.46 × 619.46 × 30.4 (H×V×D)
Luminance
420 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
8 (Typ.)(G to G)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
ADS, Normally Black, Transmissive
Aspect Ratio
1:1(W:H)
Surface Treatment
Antiglare (Haze 25%), Hard coating (3H)
Interface Type
LVDS (4 ch, 8-bit) , 92 pins Connector
Power Supply
5.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
The description of the board
Model No.
MST8757TL V1.0
Brightness Control
DC & PWM
Signal Interface
Dual 6/8/10 bit LVDS interface
Outline Dimention
80.5(L)×56.5(W)X9(H)mm
Temperature
0℃ To +60℃
Power for Board
12V
Details Images
m2 typ with hdm1 vga controller board-11
m2 typ with hdm1 vga controller board-12
m2 typ with hdm1 vga controller board-13
m2 typ with hdm1 vga controller board-14
m2 typ with hdm1 vga controller board-15
m2 typ with hdm1 vga controller board-16
Product Usage
m2 typ with hdm1 vga controller board-17
Related Products
Packing&Shipping

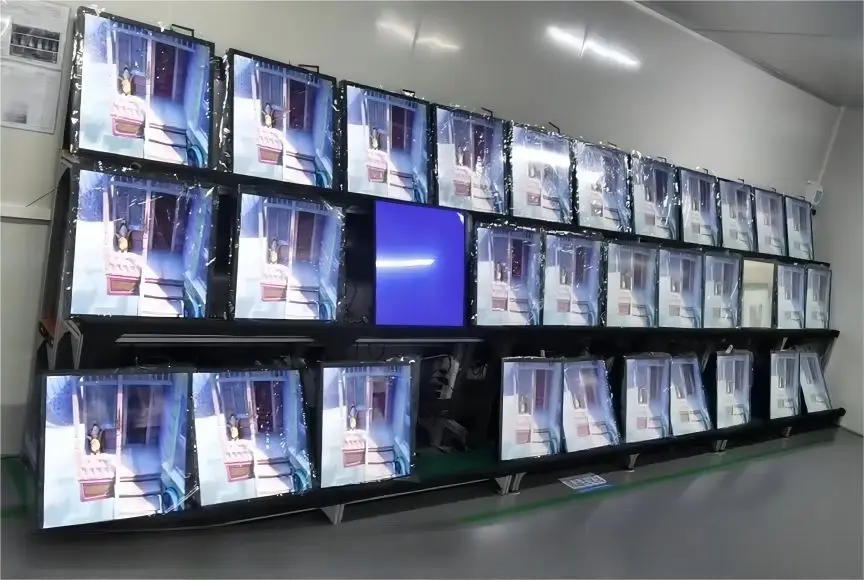

1.About the test
m2 typ with hdm1 vga controller board-18
m2 typ with hdm1 vga controller board-19
2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
m2 typ with hdm1 vga controller board-20
m2 typ with hdm1 vga controller board-21
m2 typ with hdm1 vga controller board-22
m2 typ with hdm1 vga controller board-23
m2 typ with hdm1 vga controller board-24
m2 typ with hdm1 vga controller board-25
m2 typ with hdm1 vga controller board-26
3.About the Shipping
m2 typ with hdm1 vga controller board-27
Company Introduction
Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）
Round LCD display
Square LCD display
stretched Bar LCD display
LCD advertising machine (4.3 inch -110 inch )
LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)
LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
m2 typ with hdm1 vga controller board-28
m2 typ with hdm1 vga controller board-29
m2 typ with hdm1 vga controller board-30
m2 typ with hdm1 vga controller board-31
m2 typ with hdm1 vga controller board-32
m2 typ with hdm1 vga controller board-33
m2 typ with hdm1 vga controller board-34
m2 typ with hdm1 vga controller board-35
m2 typ with hdm1 vga controller board-36
m2 typ with hdm1 vga controller board-37
m2 typ with hdm1 vga controller board-38
FAQ
1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
