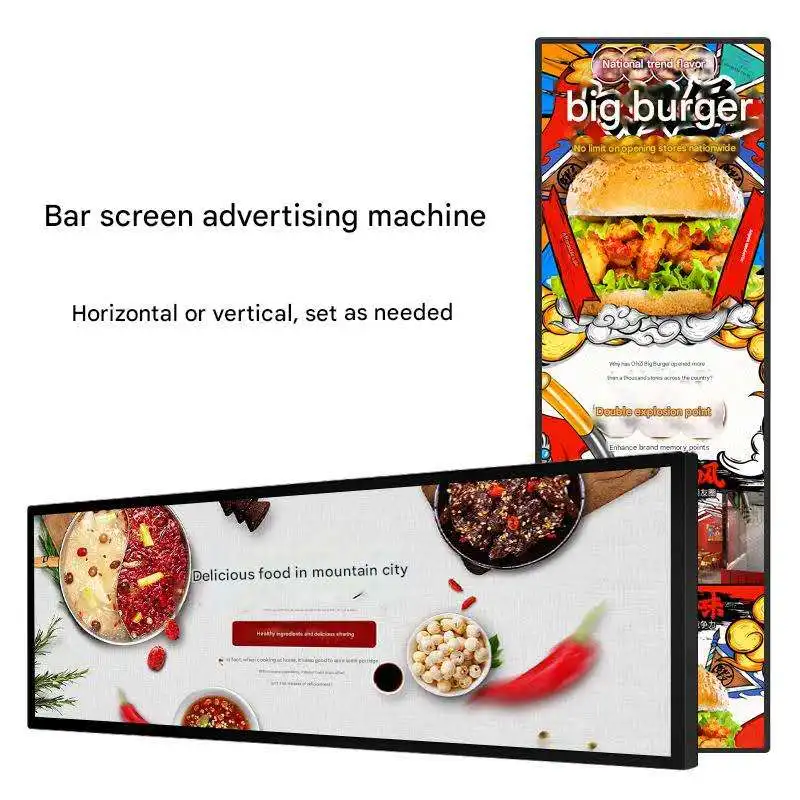

37 Inch Commercial Digital Signage Stretched Bar LCD Display
System
|
CPU |
Allwinner V40,Quad core ARM Cortex A7 1.5 GHz |
RAM |
LPDDR3 1GB/2GB |
|
Internal memory |
EMMC 8GB/16G/32G optional(standard 8GB) |
|
Operation system |
Google Android 6.0 system |
|
Panel |
37"bar monitor |
|
Resolution |
1920*540 |
|
Outline Dim |
909.2*237*45mm |
|
Viewing angle |
89/89/89/89(L/R/U/D) |
|
Display mode |
Nomally black ,IPS |
|
Contrast ratio |
3000:1 |
|
Luminance |
450cd/m2 type |
|
Aspect Ratio |
Bar monitor |
|
Network
|
WiFi |
802.11b/g/n |
Ethernet |
RJ45 , hundred megabytes Ethernet interface, supports Ethernet |
|
Bluetooth |
It has bluetooth |
|
2 4PIN 2.0 spacing seat sub-interfaces USB HOST, |
USB 2.0 |
|
Interface
|
Power Jack |
DC input |
RJ45 |
Ethernet |
|
MIPI |
max support 1920×1080 |
|
HDMI |
HDMI 1.4 output1080P |
|
LVDS |
LVDS(signal 6 bit, dual 8bit) Max resolution 1920×1080 |
|
Media plays
|
Audio format |
Support MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV play,support song lists function |
Support Video playback up to 1080P @60fps Support Multi-Format video playback,including Mpeg1,Mpeg2, |
||
Mpeg4 SP/ASP GMC,H.263 including sorenson spark,H.264 BP/MP/HP,VP8,WMV9/VC1,JPEG/MJPEG,etc |
||
Photo |
Support JPG,BMP,PNG,GIF etc Browse and support rotation/slideshow,up to 4096*4096 resolution |
|
Language |
Multi-language |
|
Working temp |
Storage temperature: -10~60°C. |
We are a professional factory with over 16 years of experience in the LCD and display peripheral accessories industry, covering R&D, design, production and assembly, and we have been deeply engaged in this field for years to provide high-quality products and services.
Our Core Products
1. LCD Modules: Integrated with display panel, Android/HDMI/Windows mainboard, touch screen and power supply.
2. Full Series Digital Signage: Including hanging window displays, wall-mounted advertising displays, floor-standing advertising displays and mobile cart models, all support touch function.
3. Indoor & Outdoor High-Brightness Screens: Brightness ranges from 300 to 5000 nits, perfectly suitable for various indoor and outdoor applications.
4. Cutting-Edge Technology: Transparent OLED displays, the world’s most advanced display technology.
Six Core Strengths
1. Direct Factory Source: Authorized as a first-class agent for many top international LCD brands, ensuring stable supply.
2. Strong Production Capacity: Million-level clean workshop, specialized in high-end projects for high-brightness and touch displays.
3. Fast Customization: Own sheet metal fabrication factory with full control over materials and design; drawings can be finished in as fast as 1 day.
4. Professional Team: 107 employees in total, including 20 sales staff, 7 R&D engineers and 10 technical support members.
5. Quality Assurance: Certified by SGS and long-term supplier for many Fortune Global 500 companies.
6. Complete Certifications：Our products support certifications including UL, CE, KC, 3C, PSE, RoHS, FCC and UKCA.
Cooperation Commitments
1. Support 24-hour online video factory audit; we can hang your brand logo during the audit to build trust.
2. Accept non-quality-related returns after receipt, provided the goods do not affect resale.
3. Provide on-site team service for partners with annual turnover over USD 2,000,000.
Welcome to visit our website: www.caisonlcd.com to view our full product range.
We look forward to establishing long-term cooperation with you. Thank you!
