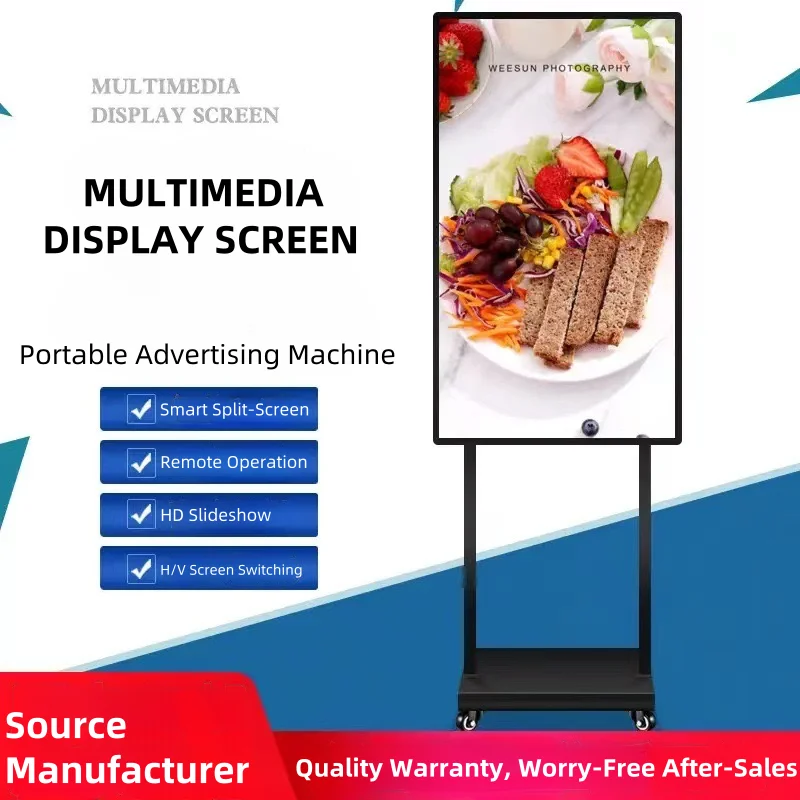

shopping mall digital display Advertising Machine high brightness lcd advertising signage
The details of screen |
||||||
Model P/N |
CS490A01 |
Diagonal Size |
49 inch |
|||
Resolution |
1920×1080 |
Panel Type |
a-Si TFT-LCD |
|||
Display area |
1073.78*604mm\ |
Color support |
16.7M , 72% NTSC |
|||

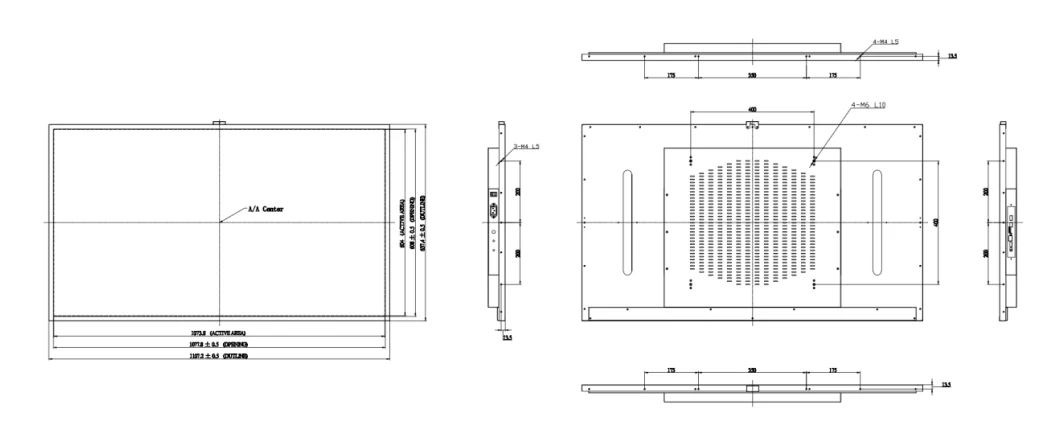

outline size |
11107.2*637.4*55.5mm |
Installation |
Wall mounted, floor mounted, or embedded |
|||
environment |
-20-70° |
Pixel Layout |
RGB Vertical Bar |
|||
Viewing angle |
89/89/89/89 |
Frame frequency |
60HZ |
|||
Display mode |
S-IPS, Normally Black |
Response Time |
6 ms |
|||
Contrast ratio |
1000:1 |
Luminance |
2000-3000cd/㎡ |
|||
The details of board |
||||||
mainboard |
Android |
chip |
RK3288 |
|||
Running memory |
2/4G |
RJ45 |
1pcs |
|||

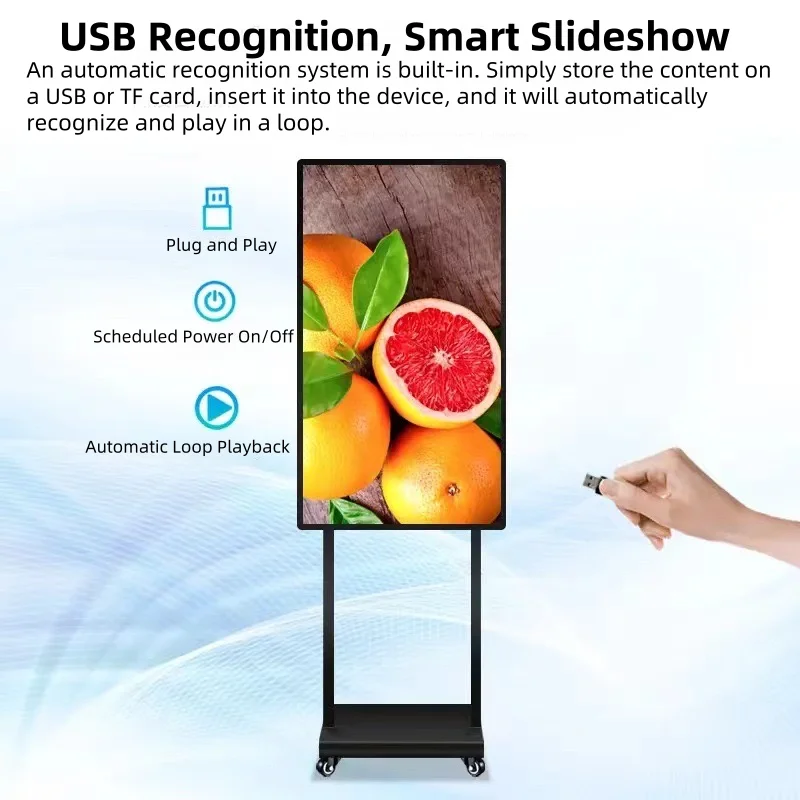

USB |
2*USB2.0 |

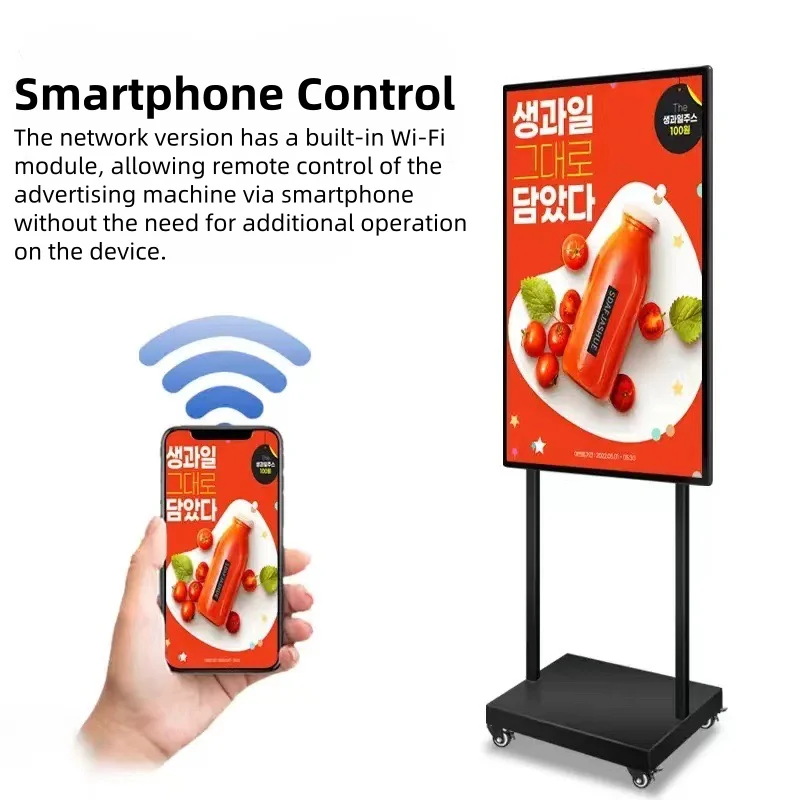

WIFI |
IEEE 802.11 b/g/n |
|||
system |
Android 7.1 |
input voltage |
AC110-220V |
|||
Glass protection level |
IK10 |
Protection grade |
IP67 |
|||
Maximum power consumption |
280W（2500cd/m²） |
authentication |
- |
|||
