4K BOE 48 Inch Stretched bar LCD Display Panel DV480FBM-N01 with 3840(RGB)*720,1000 Nits,stretch bar Display
4K BOE 48 Inch Stretched bar LCD Display Panel DV480FBM-N01 with 3840(RGB)*720,1000 Nits,stretch bar Display
4K BOE 48 Inch Stretched bar LCD Display Panel DV480FBM-N01 with 3840(RGB)*720,1000 Nits,stretch bar Display
4K BOE 48 Inch Stretched bar LCD Display Panel DV480FBM-N01 with 3840(RGB)*720,1000 Nits,stretch bar Display
4K BOE 48 Inch Stretched bar LCD Display Panel DV480FBM-N01 with 3840(RGB)*720,1000 Nits,stretch bar Display
4K BOE 48 Inch Stretched bar LCD Display Panel DV480FBM-N01 with 3840(RGB)*720,1000 Nits,stretch bar Display
4K BOE 48 Inch Stretched bar LCD Display Panel DV480FBM-N01 with 3840(RGB)*720,1000 Nits,stretch bar Display
4K BOE 48 Inch Stretched bar LCD Display Panel DV480FBM-N01 with 3840(RGB)*720,1000 Nits,stretch bar Display
4K BOE 48 Inch Stretched bar LCD Display Panel DV480FBM-N01 with 3840(RGB)*720,1000 Nits,stretch bar Display
4K BOE 48 Inch Stretched bar LCD Display Panel DV480FBM-N01 with 3840(RGB)*720,1000 Nits,stretch bar Display
4K BOE 48 Inch Stretched bar LCD Display Panel DV480FBM-N01 with 3840(RGB)*720,1000 Nits,stretch bar Display
4K BOE 48 Inch Stretched bar LCD Display Panel DV480FBM-N01 with 3840(RGB)*720,1000 Nits,stretch bar Display

4K BOE 48 Inch Stretched bar LCD Display Panel DV480FBM-N01 with 3840(RGB)*720,1000 Nits,stretch bar Display

Get a Quote
Product Description
Product Description
Model No.
Stretched Bar LCD Display
Brand
Caison
Size
48"
Signal Interface
V-by-One 8 lane , 51 pins Connector
Resolution
3840(RGB)×720
Brightness
1000nits(Typ.)(Center)
View Angle
89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio
1000:1 (Typ.) (TM)
Response Time
10 (Typ.)(G to G)
Display Mode
ADS, Normally Black, Transmissive
Surface Treatment
Antiglare (Haze 1%), Hard coating (3H)
Lamp Type
WLED , 50K hours , Without Driver
Outline Dimention
1217.85 × 248.18 × 30.58 (H×V×D)
Operating Temperature
0 ~ 50 °C
Power for Display
AC 110V To 240V
Details Images
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-1




BOE DV480FBM-N01 High brightness 1000nits 4K resolution lcd display panel modules with VbyOne tft bar ultra wide thin monitor
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-2
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-3
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-4
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-5
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-6
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-7
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-8
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-9
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-10
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-11

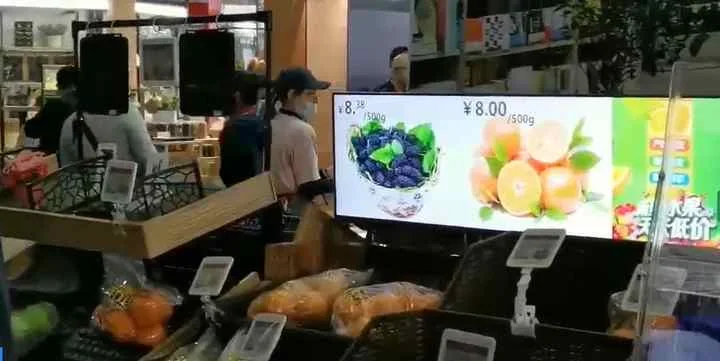

Product Usage
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-12
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-13
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-14
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-15
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-16
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-17
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-18
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-19
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-20
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-21
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-22
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-23
Related Products
Packing&Shipping

1.About the test
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-24
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-25
2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-26
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-27
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-28
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-29
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-30
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-31
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-32
3.About the Shipping
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-33
Company Introduction
Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）
Round LCD display
Square LCD display
stretched Bar LCD display
LCD advertising machine (4.3 inch -110 inch )
LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)
LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-34
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-35
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-36
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-37
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-38
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-39
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-40
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-41
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-42
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-43
product 4k boe 48 inch stretched bar lcd display panel dv480fbm n01 with 3840rgb7201000 nitsstretch bar display-44
FAQ
1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
