Android OS 11 Network player board 4K output support Simultaneous playback V-BY-ONE LVDS EDP screens Digital Signage
Android OS 11 Network player board 4K output support Simultaneous playback V-BY-ONE LVDS EDP screens Digital Signage
Android OS 11 Network player board 4K output support Simultaneous playback V-BY-ONE LVDS EDP screens Digital Signage
Android OS 11 Network player board 4K output support Simultaneous playback V-BY-ONE LVDS EDP screens Digital Signage
Android OS 11 Network player board 4K output support Simultaneous playback V-BY-ONE LVDS EDP screens Digital Signage
Android OS 11 Network player board 4K output support Simultaneous playback V-BY-ONE LVDS EDP screens Digital Signage
Android OS 11 Network player board 4K output support Simultaneous playback V-BY-ONE LVDS EDP screens Digital Signage
Android OS 11 Network player board 4K output support Simultaneous playback V-BY-ONE LVDS EDP screens Digital Signage
Android OS 11 Network player board 4K output support Simultaneous playback V-BY-ONE LVDS EDP screens Digital Signage
Android OS 11 Network player board 4K output support Simultaneous playback V-BY-ONE LVDS EDP screens Digital Signage

Android OS 11 Network player board 4K output support Simultaneous playback V-BY-ONE LVDS EDP screens Digital Signage

Get a Quote
Product Description
Product Description
Android OS 11 Network player board 4K output support Simultaneous playback V-BY-ONE LVDS EDP screens Digital Signage

GENERAL DESCRIPTION
➢ CS-020E V1.0 Four-core application processor with high performance and low power consumption, and is equipped with Android 11.0 system with main frequency up to 2.0GHz

➢ CS-020E V1.0 Support screen synchronization display of V-By-one signals, LVDS and EDP output of 4K LCD panel, and 4K ultra-high definition

➢ CS-020E V1.0 monitor,infrared remote control, touch screen Printer bar-code scanner, etc. It is convenient to use it for digital signage , All-in-one field application.
Specification
CPU
Rockchip RK3568
GPU
Mali-G52-2EE
ROM
2GB DDR3(4GB is optional)
RAM
eMMC 8GB (16G/32G/64G/128G/256G option
Decoding Ability
MAX. 2160P(3840X2160@60HZ)
OS
Android 11
Network
Support RJ45 Ethernet, 2.4GHz WIFI,4.0 Bluetooth
Video Format
RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4, etc
Audio Format
MP3,WMA,APE,FLAC, etc
Image Format
BMP/JPEG/PNG/GIF, etc
USB2.0 Port
4 internal pinholder USB, 1 external TF holder, 1 Type-C 2.0
Ethernet
100M/1000M self-adaption Ethernet
LVDS Output
Support 60Hz 6Bit/8Bit Single or Dual Channel LVDS
Max Resolution :1920X1080@60Hz
eDP Output
Up to 1920x1200
V-By-one
Up to3840x2160
Power
For Board
12V or 12V/5VSB/STB
To LCD panel
3.3V/5V/12V
Audio Output
L&R audio-out（2X8Ω/2.5W speaker）
RTC
Real-Time Clock Available
Timer
Available
System Update
Support USB/TF Card update
Products Description

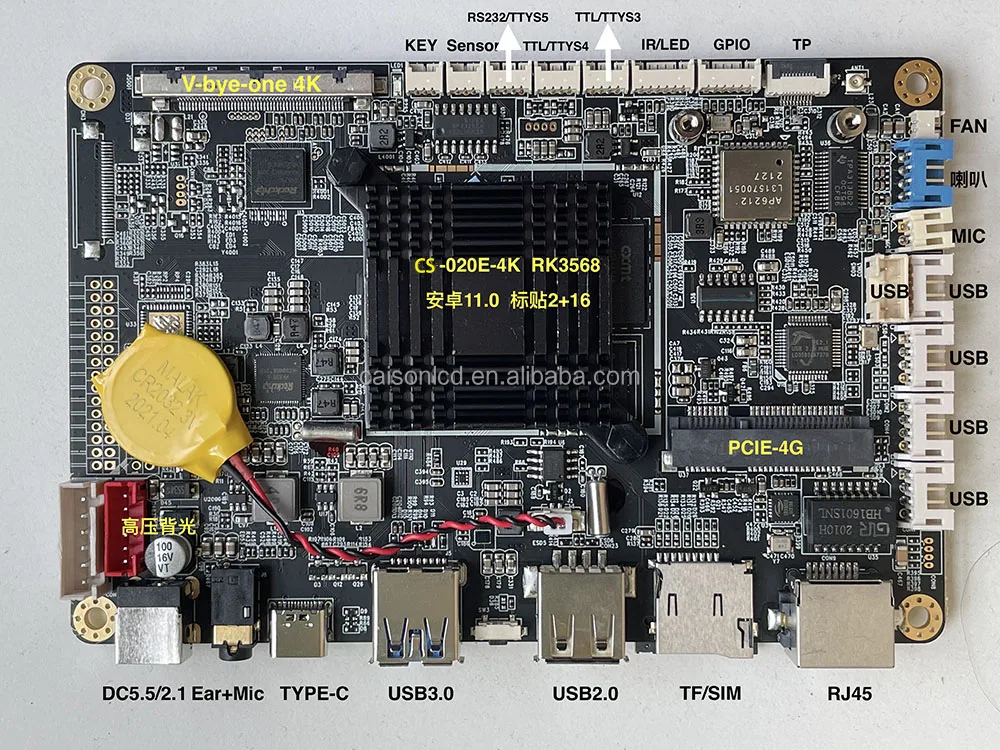

Interface Picture
product android os 11 network player board 4k output support simultaneous playback v by one lvds edp screens digital signage-1

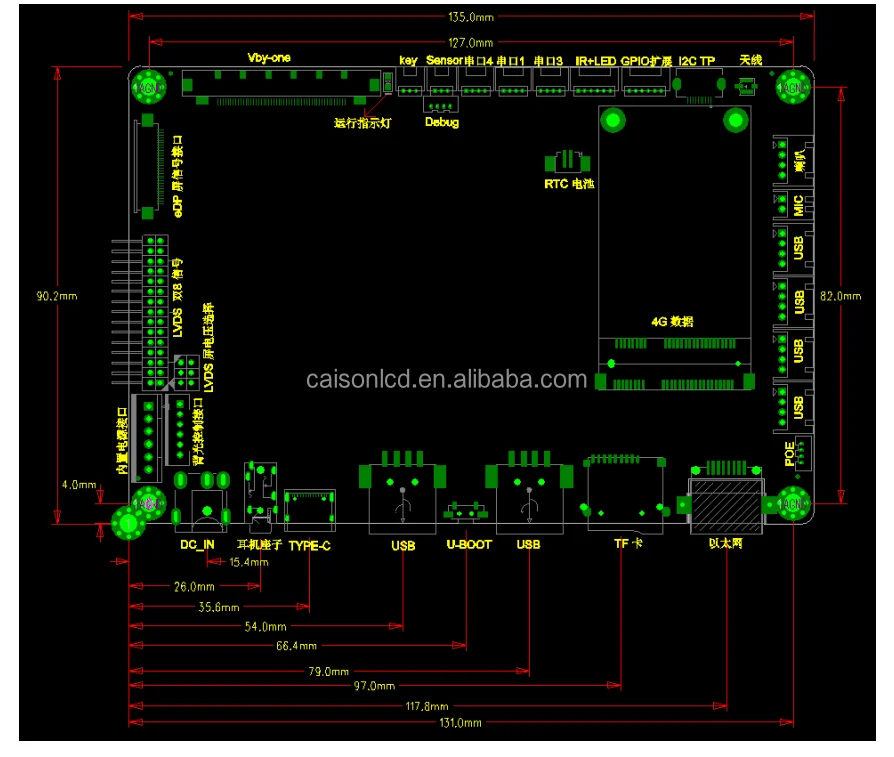

Size of the board
product android os 11 network player board 4k output support simultaneous playback v by one lvds edp screens digital signage-2
product android os 11 network player board 4k output support simultaneous playback v by one lvds edp screens digital signage-3
Product size：135*90*11mm
Screw hole specification:：∮3.5mm x 4
product android os 11 network player board 4k output support simultaneous playback v by one lvds edp screens digital signage-4
