Android System 9.0 Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board
Android System 9.0 Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board
Android System 9.0 Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board
Android System 9.0 Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board
Android System 9.0 Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board
Android System 9.0 Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board
Android System 9.0 Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board
Android System 9.0 Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board
Android System 9.0 Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board
Android System 9.0 Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board
Android System 9.0 Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board
Android System 9.0 Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board

Android System 9.0 Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board

Get a Quote
Product Description
Stretch bar screen advertising machine I2C CTP USB TF card RJ45 RS323 LVDS V-By-one 4K Android board
Product Description
GENERAL DESCRIPTION
➢ WST11 WST11 is an Android smart motherboard, mainly used to support cropping of all sizes and resolutions

➢WST11 uses a Crystal Morning T972 chip, a quad-core Cortex-A55 processor, with a master frequency up to 1.9
GHz.Adopt Mali-G31 GPU;Supports 4K, H.265 hard decoding;Android 9.0 is available Series;Supports multi - channel video output and input

➢WST11 Applicable to intelligent shelves, door head advertising, commercial display, intelligent display terminal products, visual Frequency terminal products, industrial automation terminal products

➢ WST11 Maximum support 8K*4K@24Hz and LVDS/ V-by-One interface LCD display, cropped screen.Support Android system customization, provide system call interface API reference code
Products Description

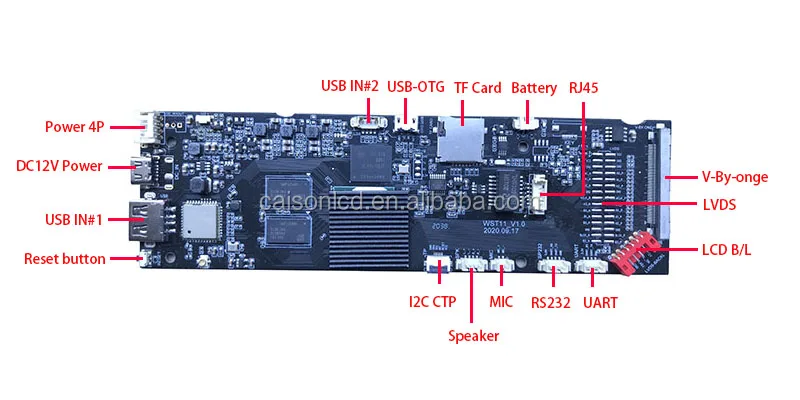

Interface Picture
product android system 90 stretch bar screen advertising machine i2c ctp usb tf card rj45 rs323 lvds v by one 4k android board-1
product android system 90 stretch bar screen advertising machine i2c ctp usb tf card rj45 rs323 lvds v by one 4k android board-2
product android system 90 stretch bar screen advertising machine i2c ctp usb tf card rj45 rs323 lvds v by one 4k android board-3
product android system 90 stretch bar screen advertising machine i2c ctp usb tf card rj45 rs323 lvds v by one 4k android board-4
product android system 90 stretch bar screen advertising machine i2c ctp usb tf card rj45 rs323 lvds v by one 4k android board-3
specification
CPU
T972 quad-core A55, main frequency up to 1.9ghz, Android 9.0
system version
Android 9.0
RAM
2G
ROM
EMMC 8G (16G/32G/ 64GB optional)
OS
Android 9.0
Decoding resolution
Maximum support: 2160P
LVDS
1080P@60Hz
V-By-One
3840x2160 4k@60Hz
USB2.0 interface
1 USB OTG 、1 USB2.0
Video Format
Support RM/RMVBI, MKV, TS, FLV, AVI, VOB, MOV, wMV, MP4
picture format
Support BMP, JPEG, PNG, GIF
Play Mode
Support loop, timing, interrupt and other playback modes
Web support
Ethernet
Built-in WIFI (default 2.4g single frequency, can be configured as 2.4g /5G dual frequency),
BT4.2
rtc clock
Support
PShutDown
Support
System Update
Support network upgrade, USB/TF card upgrade, computer upgrade

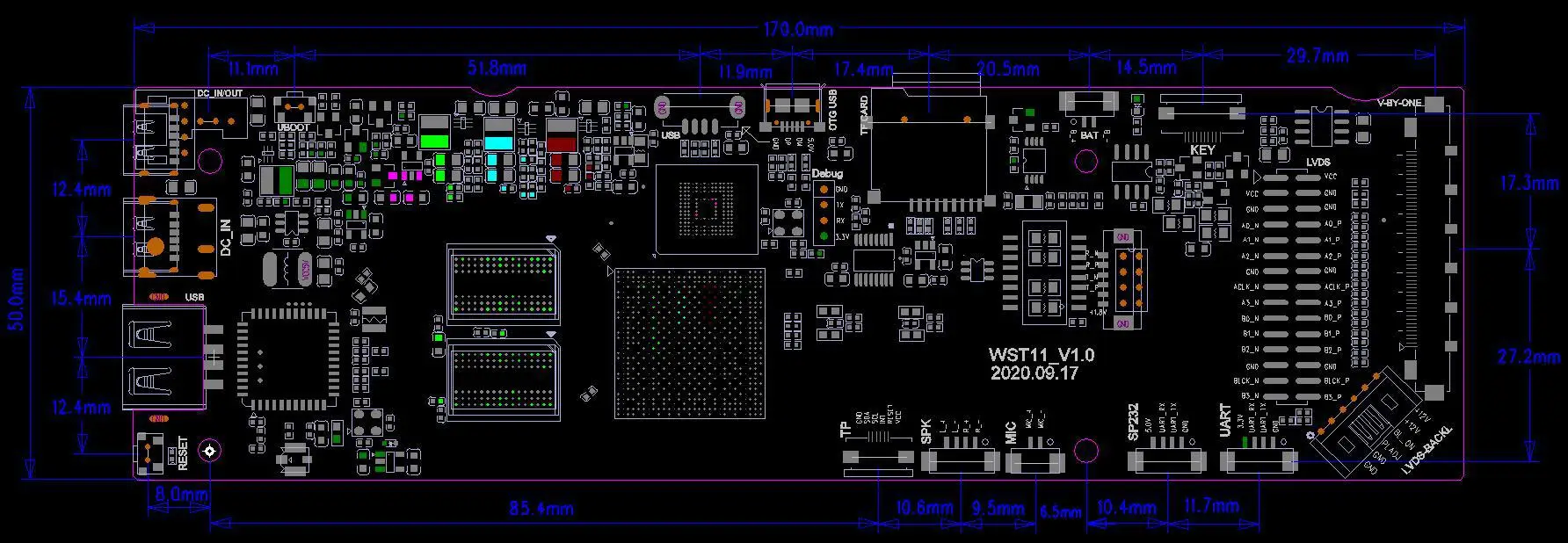

Size of the board
PCB: 4-ply board
Size: 50mm*170mm, plate thickness: 1.2mm
Screw holes specifications: Φ 3.0 mm x 4

product android system 90 stretch bar screen advertising machine i2c ctp usb tf card rj45 rs323 lvds v by one 4k android board-6
