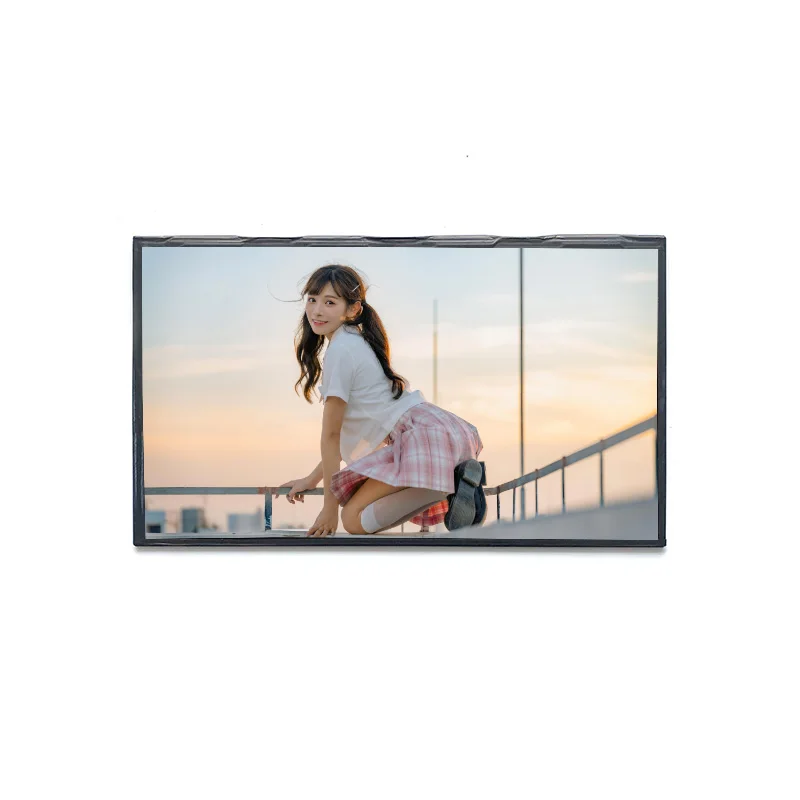

AUO 10.1-Inch TFT LCD Display Modules Outdoor Digital Signage with Resolution 1024*576 Model B101AW01 V0 HW0A
AUO 10.1-Inch TFT LCD Display Modules Outdoor Digital Signage with Resolution 1024*576 Model B101AW01 V0 HW0A
AUO 10.1-Inch TFT LCD Display Modules Outdoor Digital Signage with Resolution 1024*576 Model B101AW01 V0 HW0A
AUO 10.1-Inch TFT LCD Display Modules Outdoor Digital Signage with Resolution 1024*576 Model B101AW01 V0 HW0A
AUO 10.1-Inch TFT LCD Display Modules Outdoor Digital Signage with Resolution 1024*576 Model B101AW01 V0 HW0A
AUO 10.1-Inch TFT LCD Display Modules Outdoor Digital Signage with Resolution 1024*576 Model B101AW01 V0 HW0A
AUO 10.1-Inch TFT LCD Display Modules Outdoor Digital Signage with Resolution 1024*576 Model B101AW01 V0 HW0A
AUO 10.1-Inch TFT LCD Display Modules Outdoor Digital Signage with Resolution 1024*576 Model B101AW01 V0 HW0A
AUO 10.1-Inch TFT LCD Display Modules Outdoor Digital Signage with Resolution 1024*576 Model B101AW01 V0 HW0A
AUO 10.1-Inch TFT LCD Display Modules Outdoor Digital Signage with Resolution 1024*576 Model B101AW01 V0 HW0A
AUO 10.1-Inch TFT LCD Display Modules Outdoor Digital Signage with Resolution 1024*576 Model B101AW01 V0 HW0A
AUO 10.1-Inch TFT LCD Display Modules Outdoor Digital Signage with Resolution 1024*576 Model B101AW01 V0 HW0A

AUO 10.1-Inch TFT LCD Display Modules Outdoor Digital Signage with Resolution 1024*576 Model B101AW01 V0 HW0A

Get a Quote
Product Description
Product Description
Brand
AUO
Model

B101AW01 V0 HW0A
Diagonal Size
10.1inch
Type

a-Si TFT-LCD , LCM
Pixel Format

1024(RGB)×576, WSVGA, 116PPI
Configuration
RGB Vertical Stripe
Active Area

222.72(W)×125.28(H) mm
Outline Dim.
235(W)×143(H) ×5.2(D) mm
Bezel Area
224.72(W)×127.28(H) mm
Treatment
Antiglare, Hard coating (3H)
Luminance
200 cd/m² (Typ.)
Contrast Ratio

500:1 (Typ.) (TM)
View Direction
6 o'clock
Response Time
8 (Typ.)(Tr+Td)
Viewing Angle
45/45/15/35 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Support Color
262K 45% NTSC
Light Source
WLED , 10K hours , With LED Driver
Frame Rate
60Hz
Touch Panel
Without
Power Supply
3.3V (Typ.)
Interface Type
LVDS (1 ch, 6-bit) , 40 pins Connector
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Details Images

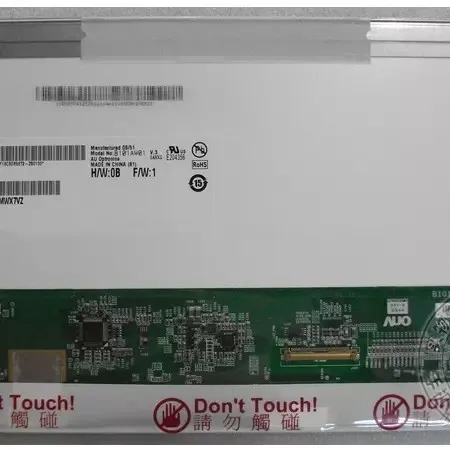

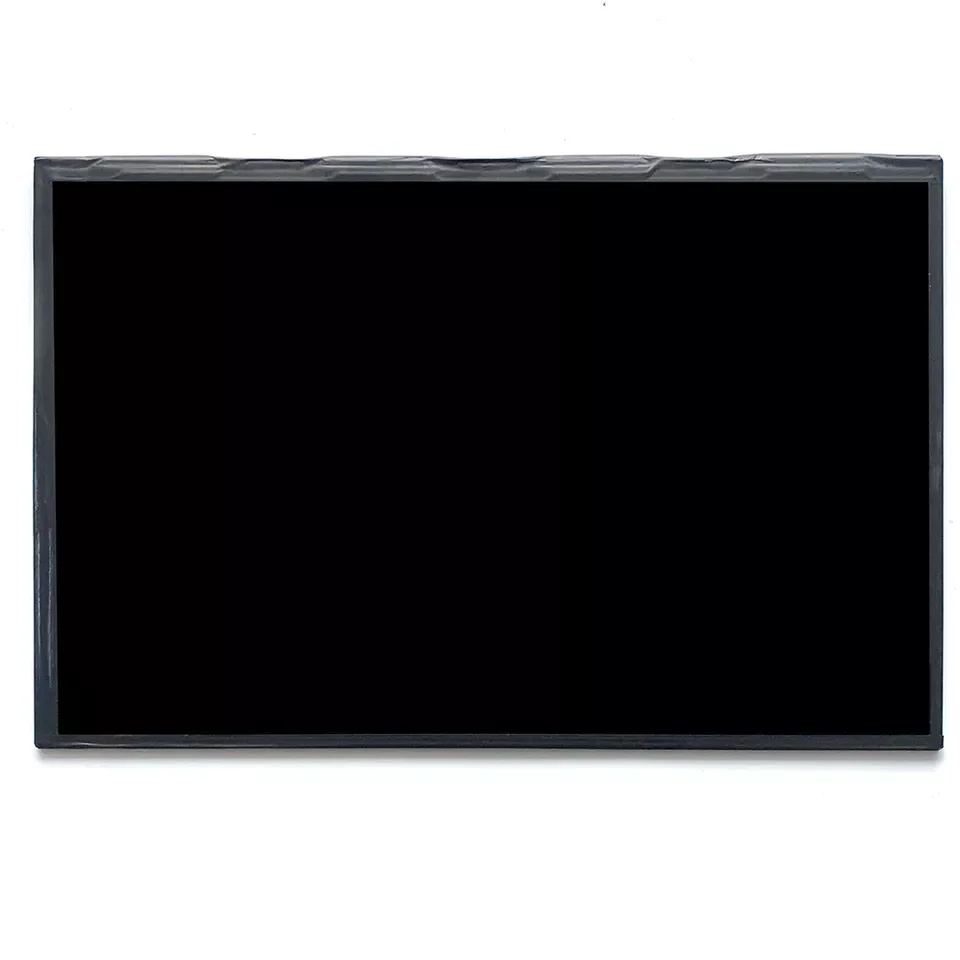

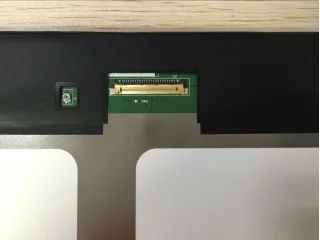

B101AW01 V0 HW0A AUO 10.1 inch with Resolution1024*576, Lcd screen Outdoor digital signage
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-1
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-2
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-3

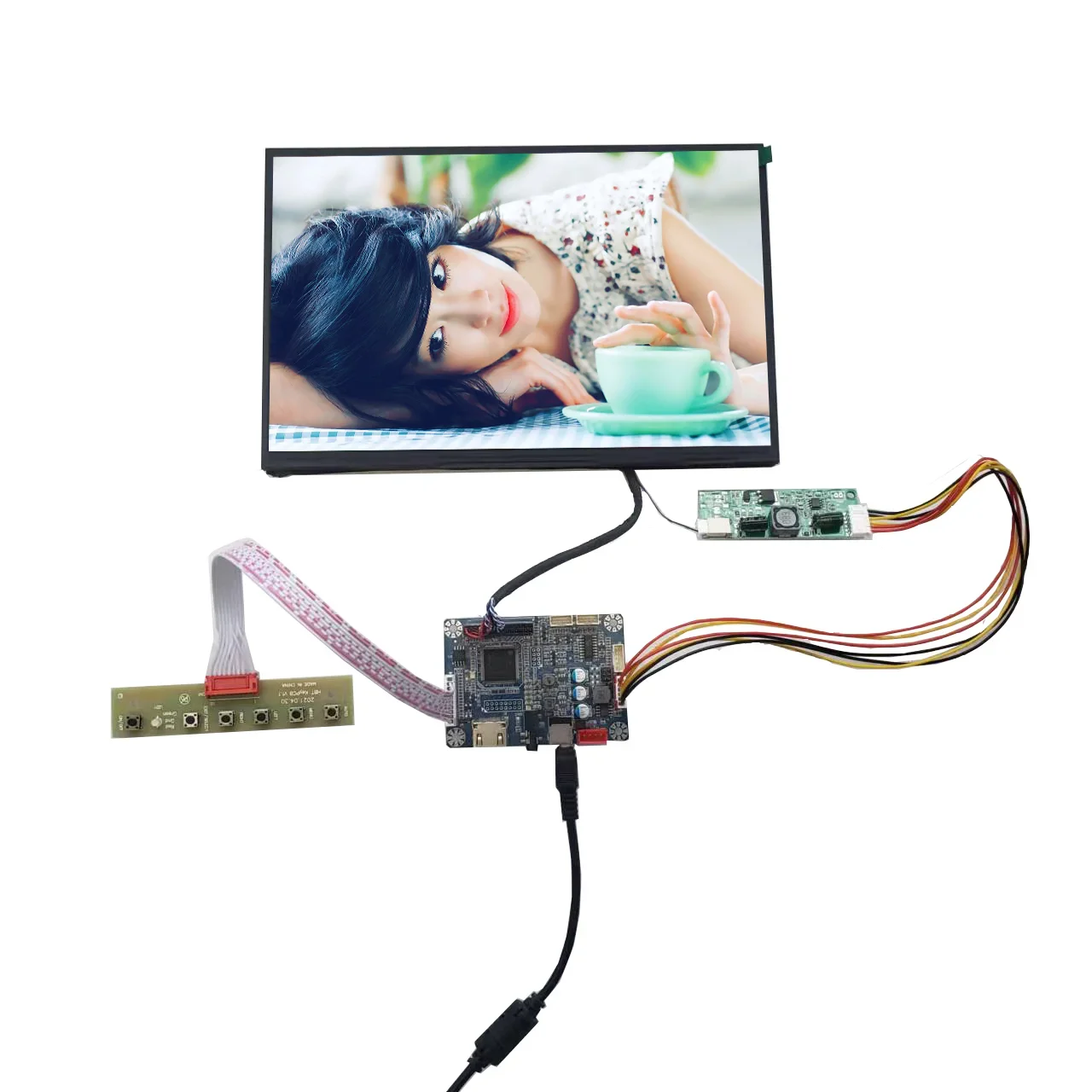

Product Usage
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-4
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-5
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-6
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-7
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-8
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-9
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-10
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-11
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-12
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-13
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-14
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-15
Related Products
Packing&Shipping

1.About the test
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-16
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-17
2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-18
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-19
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-20
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-21
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-22
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-23
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-24
3.About the Shipping
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-25
Company Introduction
Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）
Round LCD display
Square LCD display
stretched Bar LCD display
LCD advertising machine (4.3 inch -110 inch )
LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)
LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-26
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-27
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-28
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-29
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-30
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-31
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-32
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-33
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-34
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-35
product auo 101 inch tft lcd display modules outdoor digital signage with resolution 1024576 model b101aw01 v0 hw0a-36
FAQ
1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
