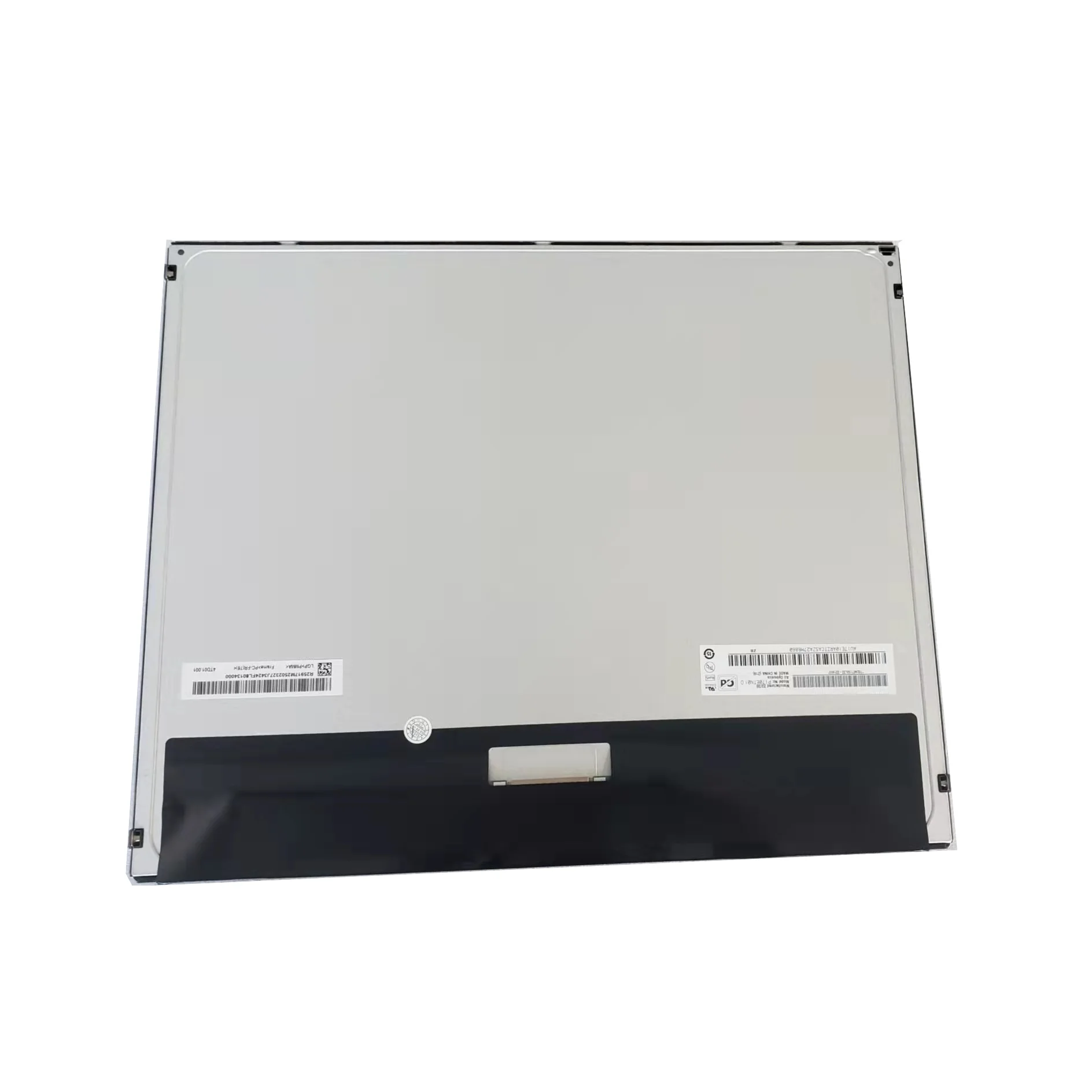

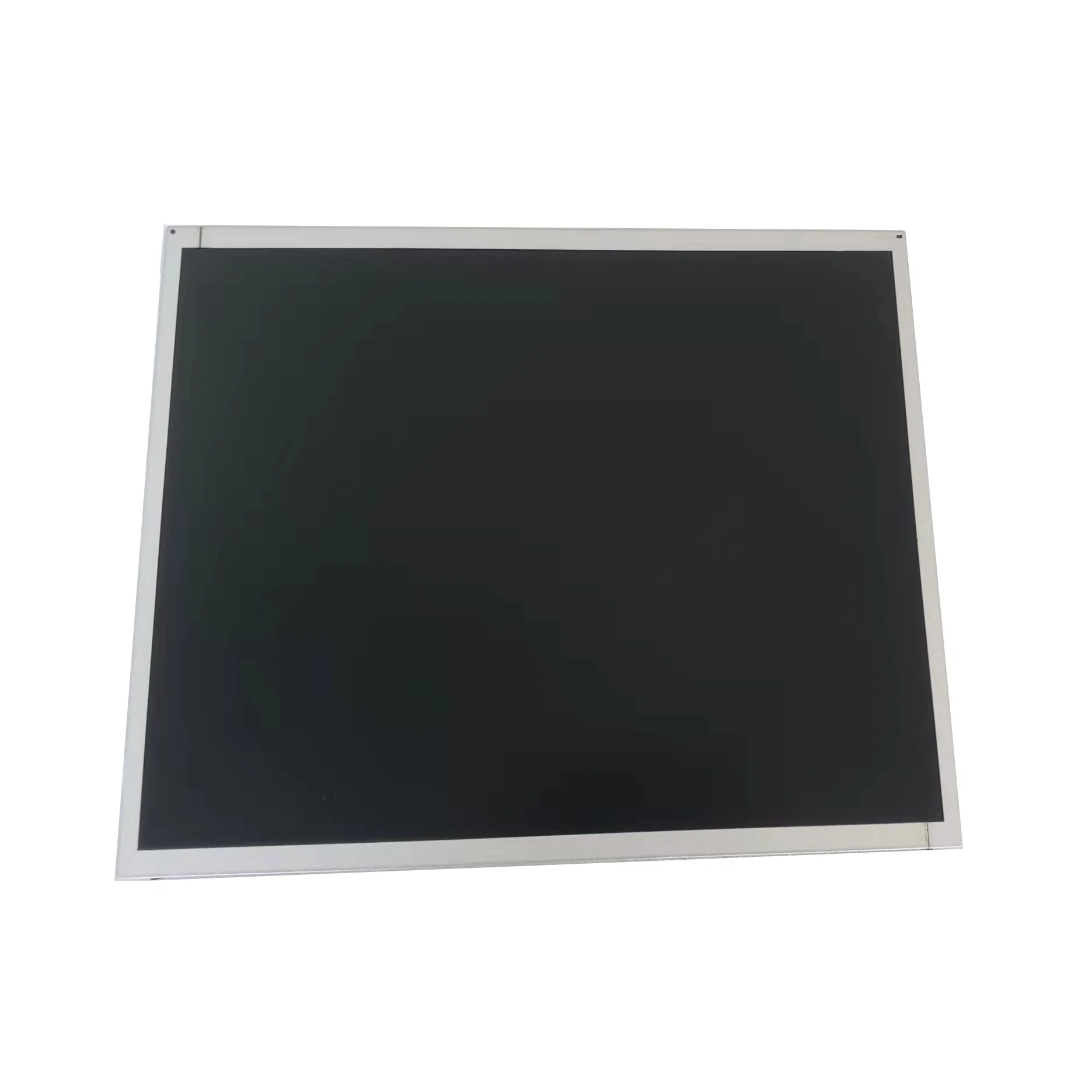

AUO 17 Inch TFT LCD Display Panel P170ETN01.0 Support 1280(RGB)x1024 Resolution, 250 Nits, LCD Screen,Digital Signage

Product Description

AUO 17 inch high quality LCD Display Panel P170ETN01 support 1280(RGB)x1024 resolution, 250 nit Backlight

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-1

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-2

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-3

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-4

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-5

Specification

Panel Brand	AUO	Panel Model	P170ETN01
Panel Size	17 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)x1024	Pixel Format	RGB Vertical Stripe
Active Area	337.92(W)×270.336(H) mm	Outline Dim	358.5 × 296.5 × 10.8 (H×V×D)
Brightness	250 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Display Mode	3.8/1.2 (Typ.)(Tr/Td) ms
Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector	Power Supply	5.0V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Related Products

Packing&Shipping

1.About the test

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-6

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-7

2.About the Packing

EPE with Carton with Carton & Plywood case EPE with Carton&Pallet

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-8

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-9

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-10

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-11

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-12

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-13

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-14

3.About the Shipping

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-15

Company Introduction

Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）

Round LCD display

Square LCD display

stretched Bar LCD display

LCD advertising machine (4.3 inch -110 inch )

LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)

LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-16

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-17

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-18

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-19

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-20

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-21

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-22

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-23

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-24

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-25

product auo 17 inch tft lcd display panel p170etn010 support 1280rgbx1024 resolution 250 nits lcd screendigital signage-26

FAQ

1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
