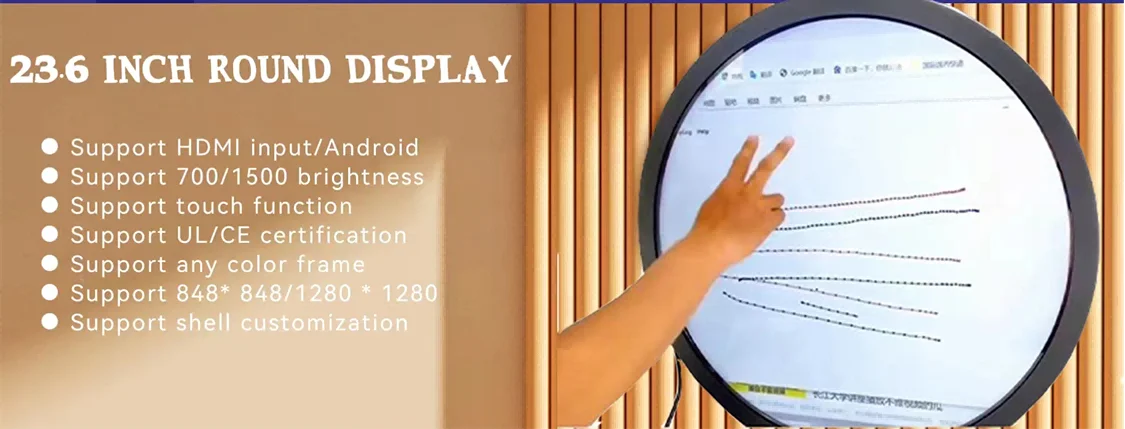

There are two version options
1.BOE 23.6 inch Circular LCD screen 1280x1280 brightness 1500 cd/m2.
2.AUO 23.6 inch Circular LCD screen 848x848 brightness 700cd/m2.

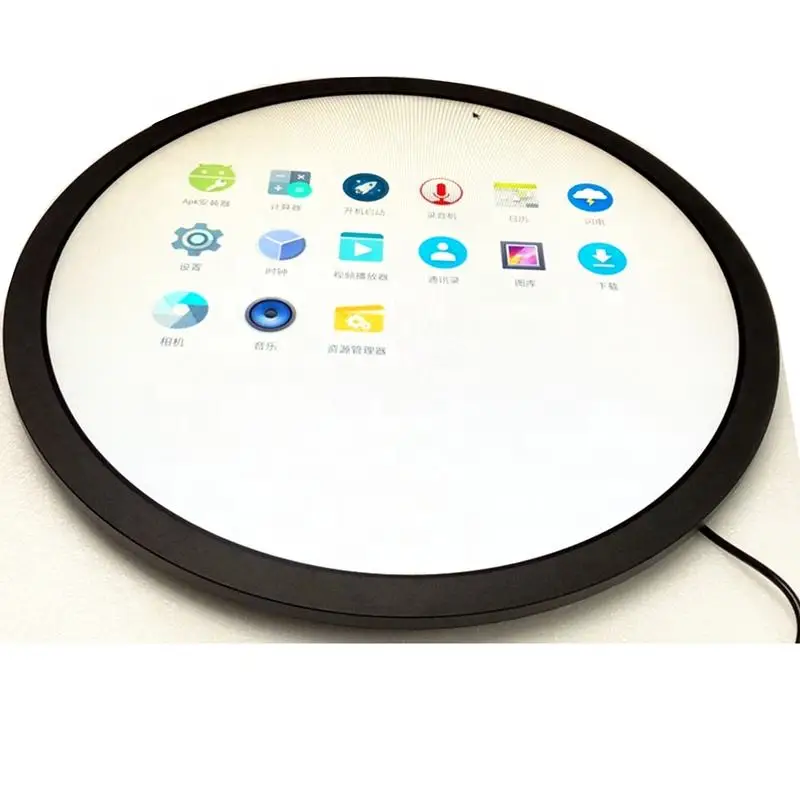

AUO Round Display P236RVN01.0 High Brightness 1500nits LVDS Industrial LCD Screen
Brand |
BOE |
Model |
P236RVN01.0 |
Diagonal Size |
23.6 inch |
Type |
a-Si TFT-LCD , LCM |
Pixel Format |
1920(RGB)×1080, FHD, 102PPI |
Configuration |
RGB Vertical Stripe |
Active Area |
848(RGB)×848, 35PPI |
Outline Dim. |
663.781(W)×663.781(H) ×27.43(D) mm |
Bezel Area |
604.384(W)×604.384(H) mm |
Treatment |
Antiglare, Hard coating (3H) |
Luminance |
700 cd/m² (Typ.) |
Contrast Ratio |
4000:1 (Typ.) (TM) |
View Direction |
Symmetry |
Response Time |
8 (Typ.)(G to G) |
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Operating Mode |
AMVA3, Normally Black, Transmissive |
Support Color |
16.7M 72% NTSC |
Light Source |
WLED , 50K hours , With LED Driver |
Frame Rate |
60Hz |
Power Supply |
Power Supply |
Interface Type |
LVDS (2 ch, 8-bit) , 51 pins Connector |
Environment |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
