AUO 23.8 inch lcd panel resolution 1920(RGB)x1080 Brightness 250cd/m2 digital signage and display M238HVN01.0

Product Description
AUO 23.8 inch lcd panel resolution 1920(RGB)x1080 Brightness 250cd/m2 digital signage and display M238HVN01.0
Product Description
Details Images
m2  digital signage and display m238hvn010-1
m2  digital signage and display m238hvn010-2
m2  digital signage and display m238hvn010-3
m2  digital signage and display m238hvn010-4
2.Specification LCD panel
Panel Brand
AUO
Panel Model
M238HVN01.0
Panel Size
23.8 inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1080
Pixel Format
RGB Vertical Stripe
Active Area
527.04(W)×296.46(H) mm
Outline Dim
543(W)×317.4(H)×11.7(D) mm
Brightness
250 cd/m² (Typ.)
Contrast Ratio
3000:1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
20 (Typ.)(G to G) ms
Interface Type
LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply
5V
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Related Products
Packing&Shipping

1.About the test
m2  digital signage and display m238hvn010-5
m2  digital signage and display m238hvn010-6

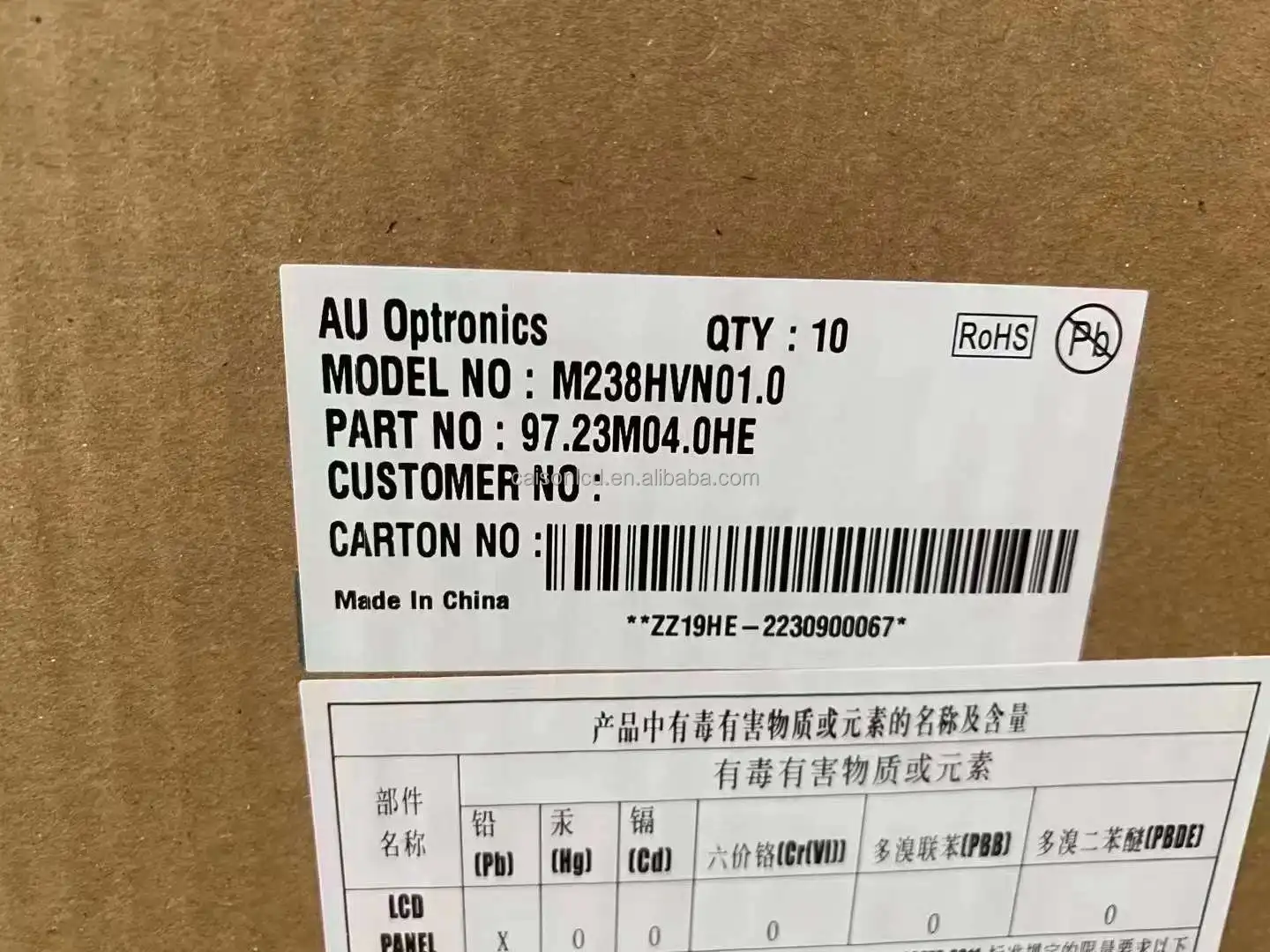

2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
m2  digital signage and display m238hvn010-7
m2  digital signage and display m238hvn010-8
m2  digital signage and display m238hvn010-9
m2  digital signage and display m238hvn010-10
m2  digital signage and display m238hvn010-11
m2  digital signage and display m238hvn010-12
m2  digital signage and display m238hvn010-13
3.About the Shipping
m2  digital signage and display m238hvn010-14
Company Introduction
Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
LCD/LED panel(4.3 inch -110 inch );
LCD kits(1080P-5K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);
High brightness panel;
We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
m2  digital signage and display m238hvn010-15
m2  digital signage and display m238hvn010-16
m2  digital signage and display m238hvn010-17
m2  digital signage and display m238hvn010-18
m2  digital signage and display m238hvn010-19
m2  digital signage and display m238hvn010-20
m2  digital signage and display m238hvn010-21
m2  digital signage and display m238hvn010-22
m2  digital signage and display m238hvn010-23
m2  digital signage and display m238hvn010-24
m2  digital signage and display m238hvn010-25
FAQ
1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
