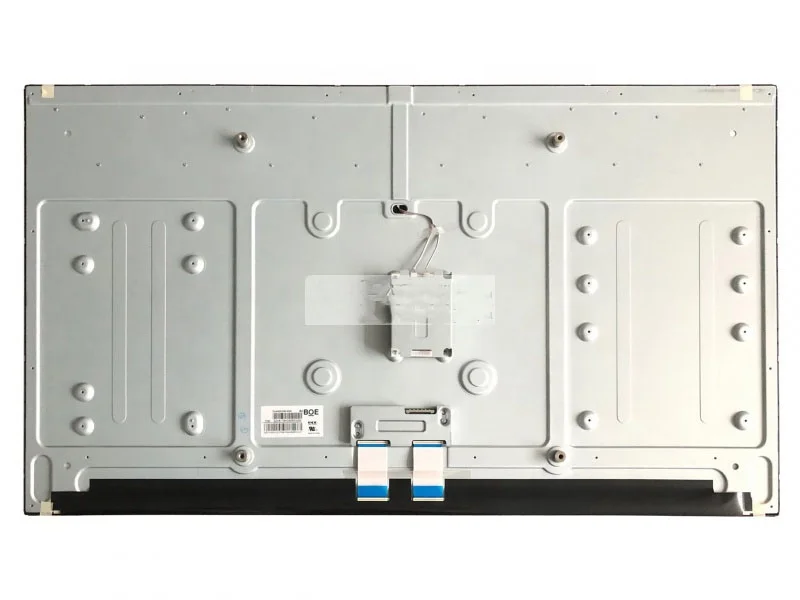

BOE 43 inch LCD Screen DV430FHM-NN0 resolution 1920x1080 Brightness 400 cd/m2 screen lvds LCD Panel Digital signage

Product Description
Specification
BOE 43 inch LCD Screen DV430FHM-NN0 resolution 1920x1080 Brightness 400 cd/m2 screen lvds LCD Panel Digital signage
Panel Brand
BOE
Panel Model
DV430FHM-NN0
Panel Size
43 inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1080
Pixel Format
RGB Vertical Stripe
Interface Type
LVDS (2 ch, 8-bit) , 51 pins Connector
Outline Dim
961.7(W)×550.1(H)×27.7(D) mm
Brightness
400 cd/m² (Typ.)
Contrast Ratio
1200:1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
8(Typ.)(G to G)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Product Description
m2 screen  lvds lcd panel digital signage-1
m2 screen  lvds lcd panel digital signage-2
m2 screen  lvds lcd panel digital signage-3
m2 screen  lvds lcd panel digital signage-4
m2 screen  lvds lcd panel digital signage-5
Related Products
Packing&Shipping

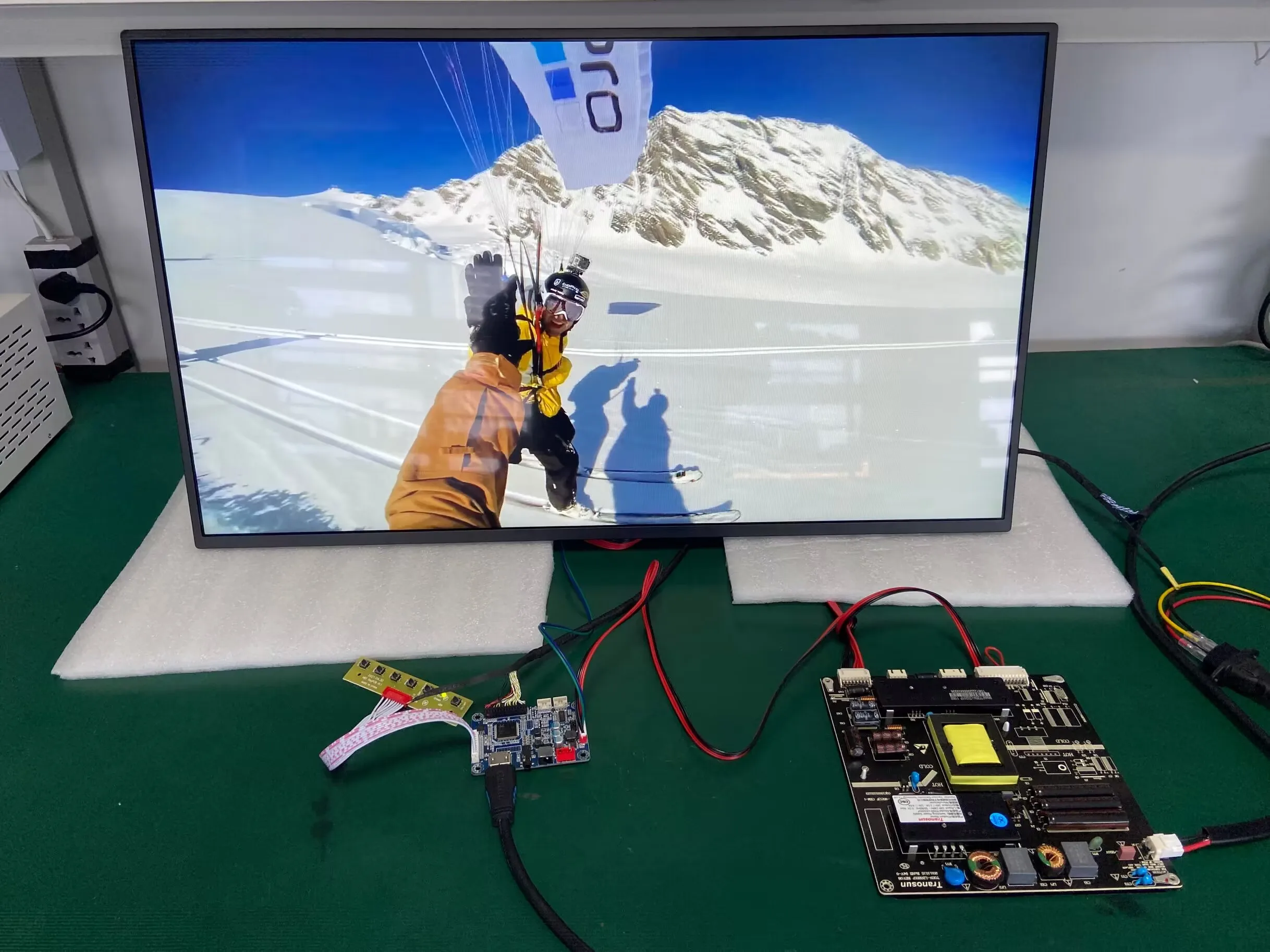

1.About the test
m2 screen  lvds lcd panel digital signage-6
m2 screen  lvds lcd panel digital signage-7

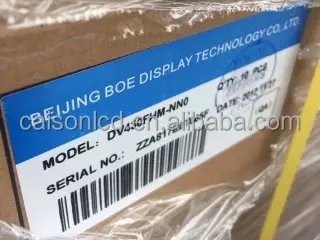

2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
m2 screen  lvds lcd panel digital signage-8
m2 screen  lvds lcd panel digital signage-9
m2 screen  lvds lcd panel digital signage-10
m2 screen  lvds lcd panel digital signage-11
m2 screen  lvds lcd panel digital signage-12
m2 screen  lvds lcd panel digital signage-13
m2 screen  lvds lcd panel digital signage-14
3.About the Shipping
m2 screen  lvds lcd panel digital signage-15
Company Introduction
Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
LCD/LED panel(4.3 inch -110 inch );
LCD kits(1080P-5K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);
High brightness panel;
We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
m2 screen  lvds lcd panel digital signage-16
m2 screen  lvds lcd panel digital signage-17
m2 screen  lvds lcd panel digital signage-18
m2 screen  lvds lcd panel digital signage-19
m2 screen  lvds lcd panel digital signage-20
m2 screen  lvds lcd panel digital signage-21
m2 screen  lvds lcd panel digital signage-22
m2 screen  lvds lcd panel digital signage-23
m2 screen  lvds lcd panel digital signage-24
m2 screen  lvds lcd panel digital signage-25
m2 screen  lvds lcd panel digital signage-26
FAQ
1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
