BOE 49 Inch TFT-LCD Display Panel DV490FHM-NN3 Support 1920(RGB)*1080,400 Nits,WLED Backlight,LCD Screen,Digital Signage

Product Description

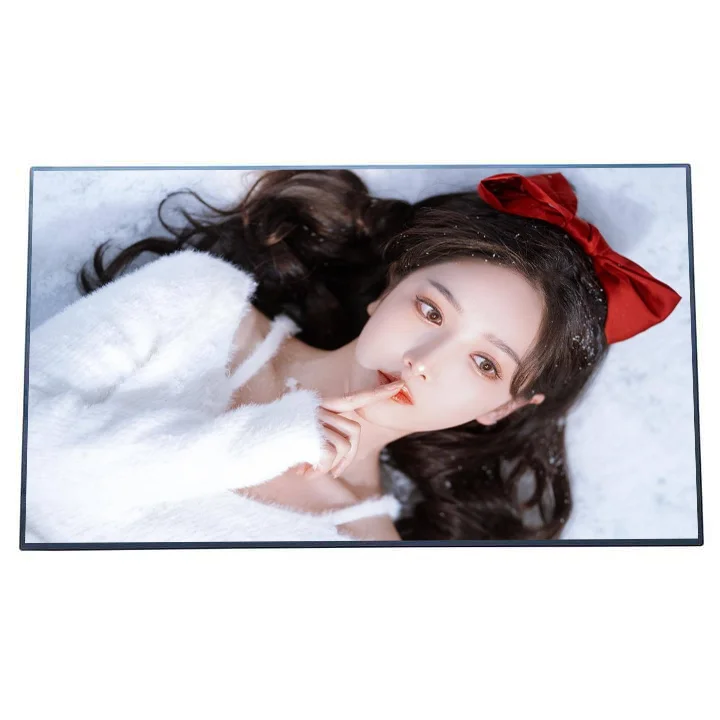

Product Picture

BOE 49 inch LCD panel DV490FHM-NN3 support 1920(RGB)*1080, FHD 45PPI,400 nits,LCD screen

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-1

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-2

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-3

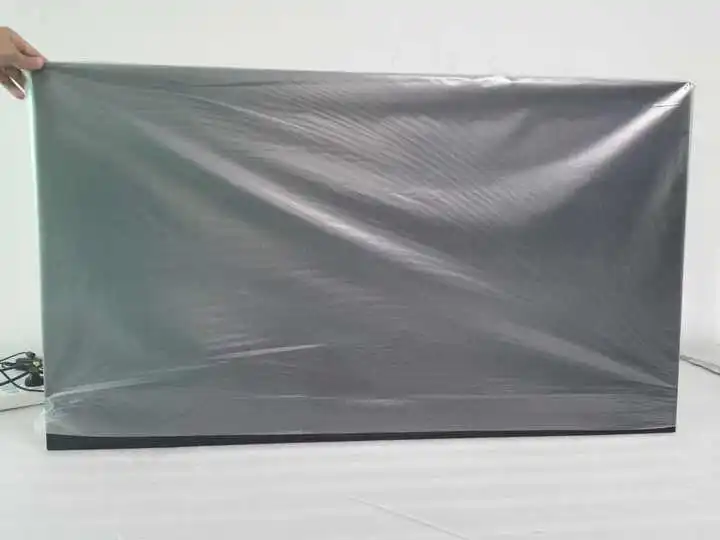

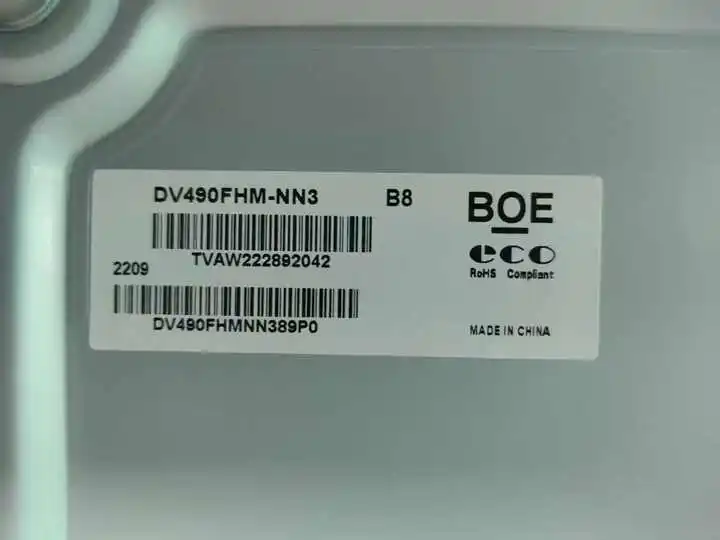

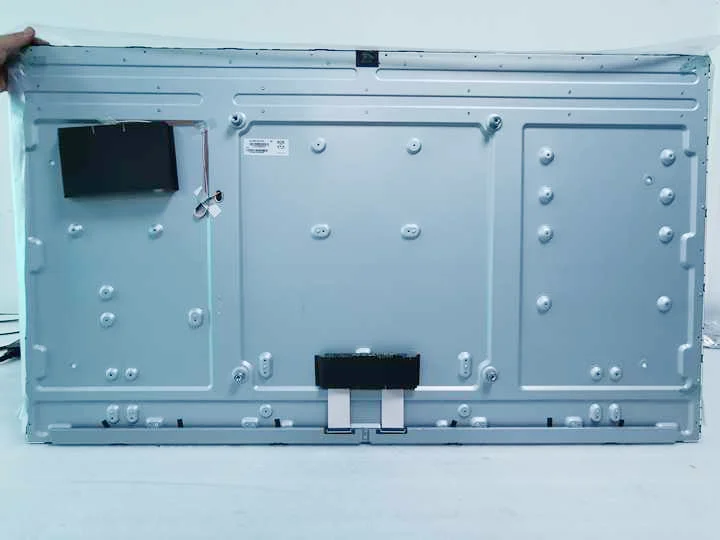

Real pictures

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-4

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-5

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-6

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-7

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-8

More details

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-9

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-10

Product Description

Panel	DV490FHM-NN3	Diagonal Size	49 inch
Resolution	1920(RGB)×1080, FHD 45PPI	Backlight	WLED , 15K hours , With LED Driver
Active area	1073.78(W)×604(H) mm	Voltage Supply	12.0V (Typ.)
Outline Size	1090.4(W)×621.3(H) ×27.36(D) mm	Display Mode	ADS, Normally Black, Transmissive
Viewing angle	89/89/89/89 (Min.)(CR≥10)	Response	8 (Typ.)(Tr+Td)
Display Colors	16.7M 68% NTSC	Signal Type	LVDS (2 ch, 8-bit) , 51 pins Connector
Contrast ratio	1200:1 (Typ.) (TM)	Luminance	400 cd/m² (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

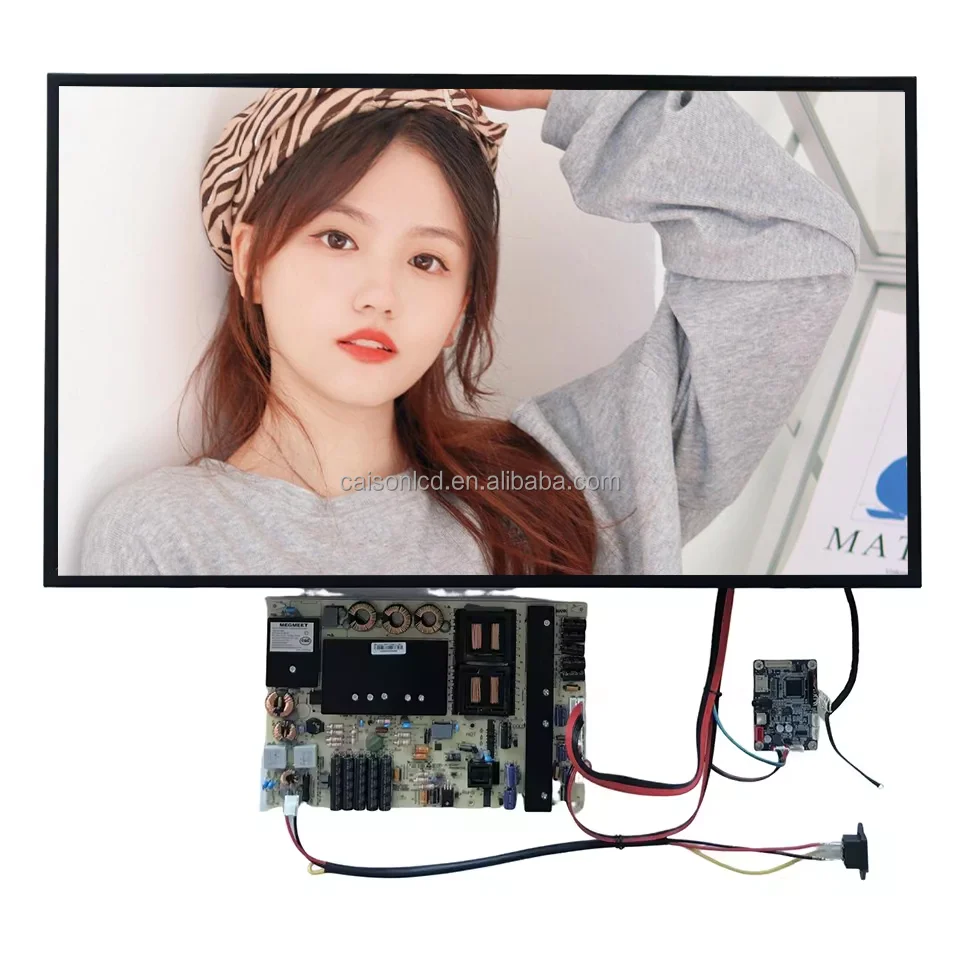

Product Usage

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-11

Related Products

Packing&Shipping

1.About the test

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-12

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-13

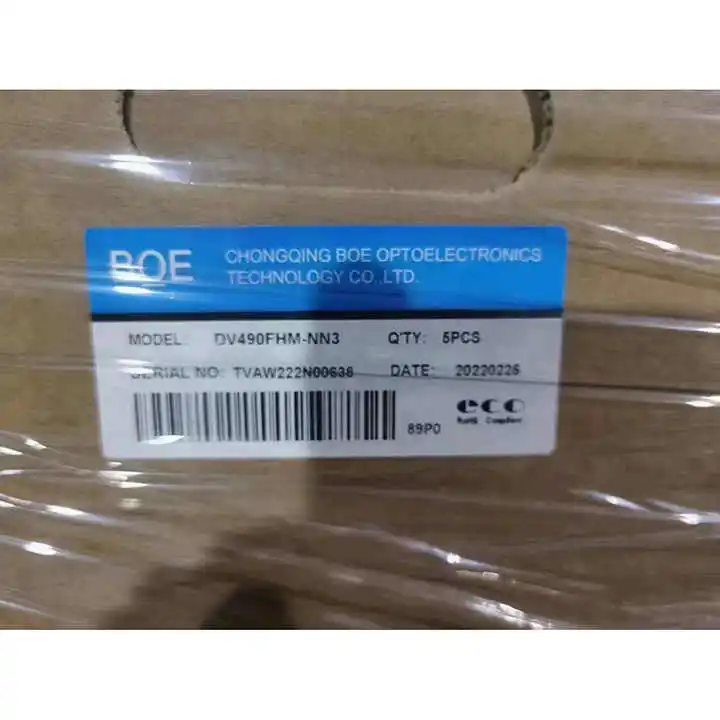

2.About the Packing

EPE with Carton with Carton & Plywood case EPE with Carton&Pallet

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-14

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-15

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-16

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-17

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-18

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-19

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-20

3.About the Shipping

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-21

Company Introduction

Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）

Round LCD display

Square LCD display

stretched Bar LCD display

LCD advertising machine (4.3 inch -110 inch )

LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)

LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-22

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-23

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-24

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-25

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-26

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-27

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-28

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-29

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-30

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-31

product boe 49 inch tft lcd display panel dv490fhm nn3 support 1920rgb1080400 nitswled backlightlcd screendigital signage-32

FAQ

1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
