BOE 55 Inch High Brightness Display LCD Panel EV550QUM-N10 with 3840(RGB)*2160 800 Nits Digital Signage Outdoor Digital Screens

Product Description

Product details

BOE 55 Inch High Brightness Display LCD Panel EV550QUM-N10 with 3840(RGB)*2160 800 Nits Digital Signage Outdoor Digital Screens

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-3

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-4

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-5

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-6

Hot sales BOE 55 Inch High Brightness Display LCD Panel EV550QUM-N10 with 3840(RGB)*2160 800 Nits Digital Signage Outdoor Digital Screens

Resolution3840(RGB)*2160, Support for HDMI input and Android.

We support for all colors of the entire shell customization.

We support for a variety of certification.

Model P/N	EV550QUM-N10	Brand	BOE
Active area	1209.6(W)×680.4(H) mm	Resolution	3840(RGB)×2160, UHD, 80PPI
Outline (mm)	1238.4(W)×713.4(H)×32.57(D) mm	Bezel Opening	-
Treatment	Antiglare (Haze 1%)，Hard coating (3H)	Color Depth	1.07B , 100% sRGB
Viewing angle	89/89/89/89 (Typ.)(CR≥10)	Diagonal Size	55 inch
Display mode	ADS, Normally Black, Transmissive	Interface Type	V-by-One 8 lane, 51 pins Connector
Contrast ratio	1200 : 1 (Typ.) (TM)	Power Supply	12.0V (Typ.)
Luminance	800 cd/m² (Typ.)	Response Time	8 (Typ.)(G to G) ms
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-7

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-8

Products Description

BOE 55 Inch High Brightness Display LCD Panel EV550QUM-N10 with 3840(RGB)*2160 800 Nits Digital Signage Outdoor Digital Screens

Brightness Test

Enlarged close-up of the luminometer

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-12

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-13

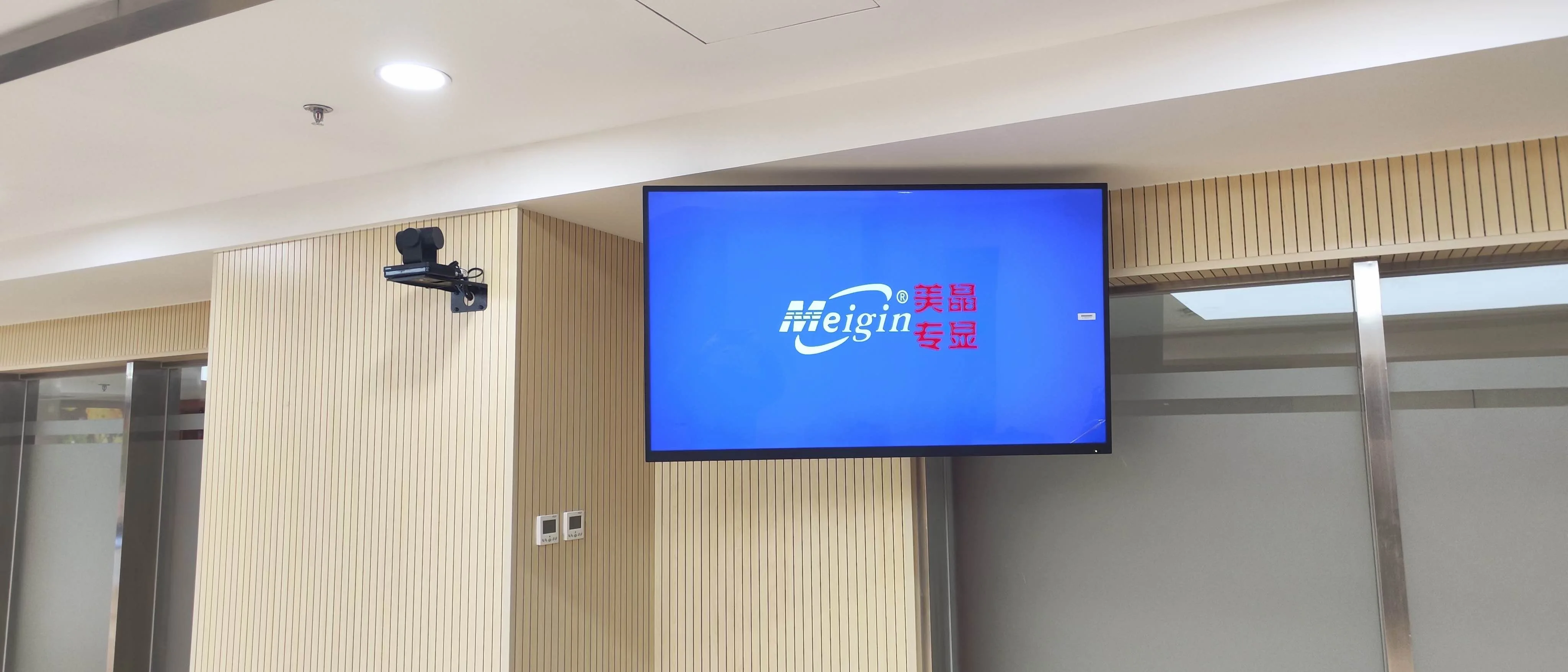

Product Usage

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-14

Related Products

Packing&Shipping

1.About the test

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-15

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-16

2.About the Packing

EPE with Carton with Carton & Plywood case EPE with Carton&Pallet

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-17

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-18

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-19

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-20

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-21

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-22

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-23

3.About the Shipping

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-24

Company Introduction

Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）

Round LCD display

Square LCD display

stretched Bar LCD display

LCD advertising machine (4.3 inch -110 inch )

LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)

LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-25

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-26

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-27

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-28

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-29

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-30

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-31

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-32

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-33

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-34

product boe 55 inch high brightness display lcd panel ev550qum n10 with 3840rgb2160 800 nits digital signage outdoor digital screens-35

FAQ

1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
