Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel
Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel
Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel
Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel
Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel
Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel
Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel
Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel
Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel
Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel
Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel
Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel

Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel

Get a Quote
Product Description
Product Description
Boe 65 Inch 4K TFT LCD Module Panel DV650QUM-N00 500 Nits Brightness WLED Backlight Digital Signage 3840x2160 LCD Panel
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-1
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-2
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-3
Panel
DV650QUM-N00
Brand
BOE
Resolution
3840(RGB)×2160, UHD 68PPI
Diagonal Size
65 inch
Active area
1428.48(W)×803.52(H) mm
Response Time
8 (Typ.)(G to G)
Viewing angle
89/89/89/89 (Typ.)(CR≥10)
Interface Type
V-by-One 8 lane , 51 pins Connector
Display mode
ADS, Normally Black, Transmissive
Power Supply
12V (Typ.)
Backlight
5 strings WLED , 50K hours , With LED Driver
Treatment
Antiglare (Haze 1%), Hard coating (3H)
Contrast ratio
1200:1 (Typ.) (TM)
Luminance
500 cd/m² (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

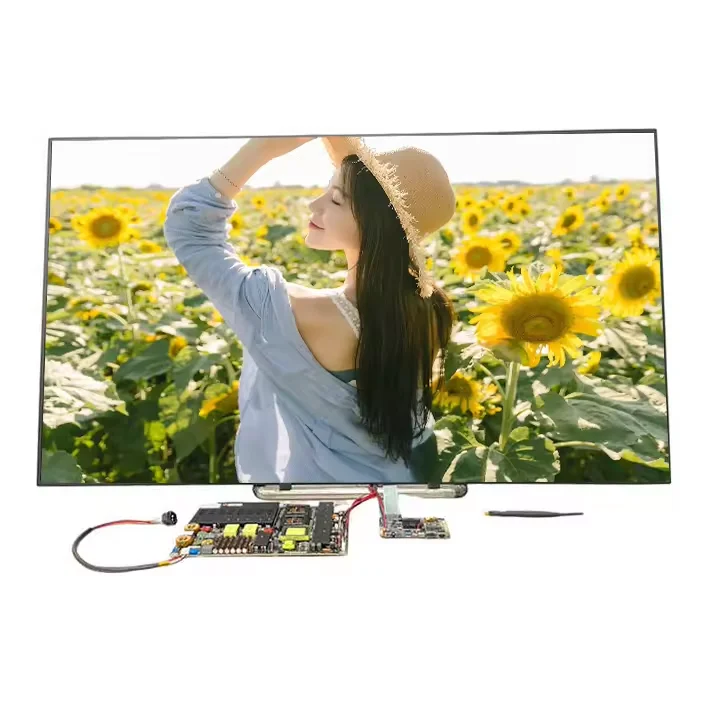

Display effect
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-4
Front View
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-5

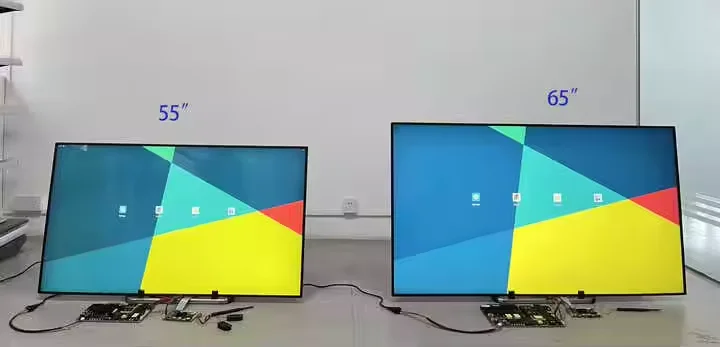

Size comparison of 55'' and 65''
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-6

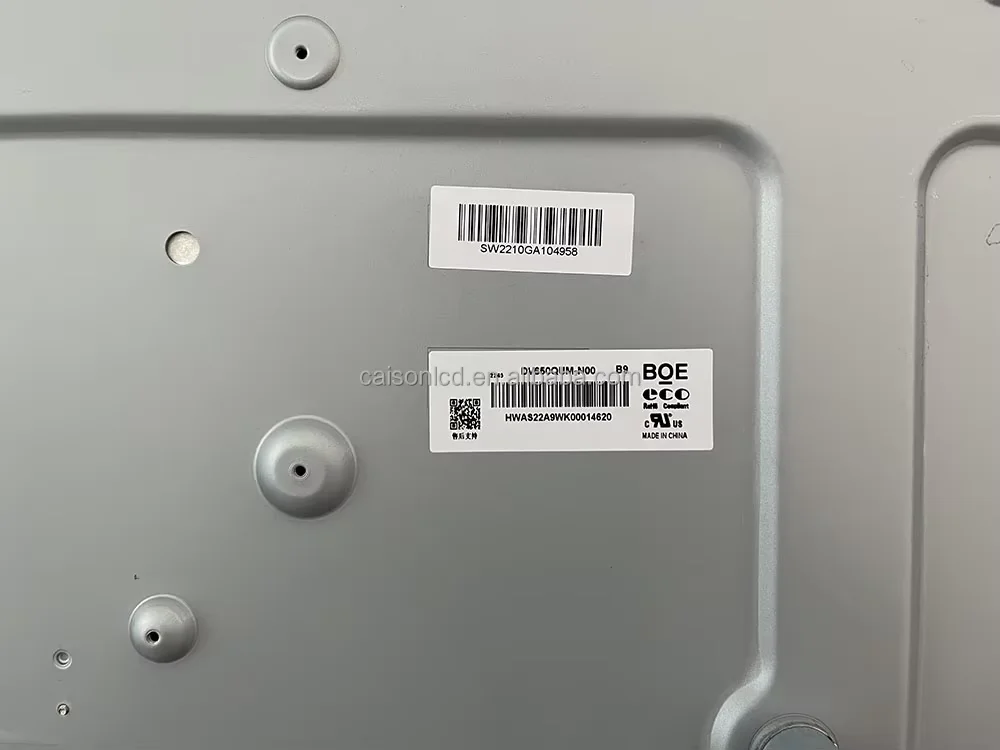

More details of the panel
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-7
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-8
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-9
The details of the board---RTD2513A
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-10
Product details
Product Usage
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-11
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-12
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-13
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-14
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-15
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-16
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-17
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-18
Related Products
Packing&Shipping

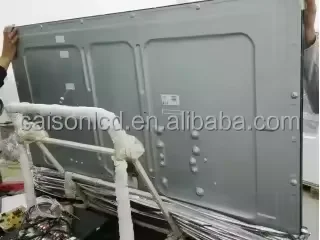

1.About the test
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-19
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-20
2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-21
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-22
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-23
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-24
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-25
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-26
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-27

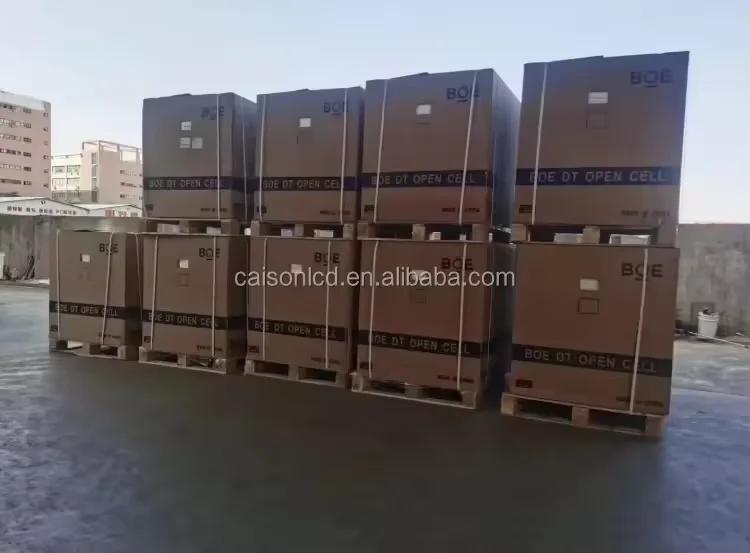

3.About the Shipping
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-28
Company Introduction
Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）
Round LCD display
Square LCD display
stretched Bar LCD display
LCD advertising machine (4.3 inch -110 inch )
LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)
LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-29
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-30
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-31
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-32
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-33
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-34
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-35
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-36
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-37
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-38
product boe 65 inch 4k tft lcd module panel dv650qum n00 500 nits brightness wled backlight digital signage 3840x2160 lcd panel-39
FAQ
1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
