BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2
BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2
BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2
BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2
BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2
BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2
BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2
BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2
BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2
BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2
BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2
BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2

BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2

Get a Quote
Product Description
BOE Icd advertising display 21.5 inch lcd panel 1920x1080 Resolution 250cd/m2 digital signage and display P215HVN01.2
Specification LCD controller board
Product Description
GENERAL DESCRIPTION
➢ RTD2513A is a multi-purpose LCD monitor controller board. It is designed to support dual/single 6/8 bit LVDS LCD panel. The supported resolution can up to 1920X1200 @60Hz.

➢ RTD2513A only support HDMI 1.4a signal input HDMI And power input connector can be use internal pin connection to instead of standard connector .

➢ RTD2513A with Audio function, Support Audio signal input form HDMI , The power of the audio amplifier’s output for speaker is 2X4Ω/3W. It also support earphone output .

➢ RTD2513A support 12V DC power input Keypad control/DDC/CI/2B protocol/UART protocol(TTL)/external sensor control(via I2C or ADC)
m2 digital signage and display p215hvn012-1
Details Images
Chipset
RTD25XX
Target Market
Industrial Display
OSD Language
English、Simplified Chinese


Panel
Voltage
3.3V/5V/12V
Panel
Interface
1-ch/2-ch 6-bit/8-bit LVDS
Resolution
1920x1200@60Hz
LED Backlight
Dimming
PWM/DC(Default is PWM)

Video Input

HDMI 1.4a
19P Type-A, Max. resolution is 1920x1080/60Hz
2.0mm 2x8P, Max. resolution is 1920x1080/60Hz


Power
Power Input
DC 12V
Normal Consumption
Max. 3W(not include panel consumption)
Standby Consumption
< 0.5W
User Key Function
Power、Menu、Right、Left、Exit(Default)

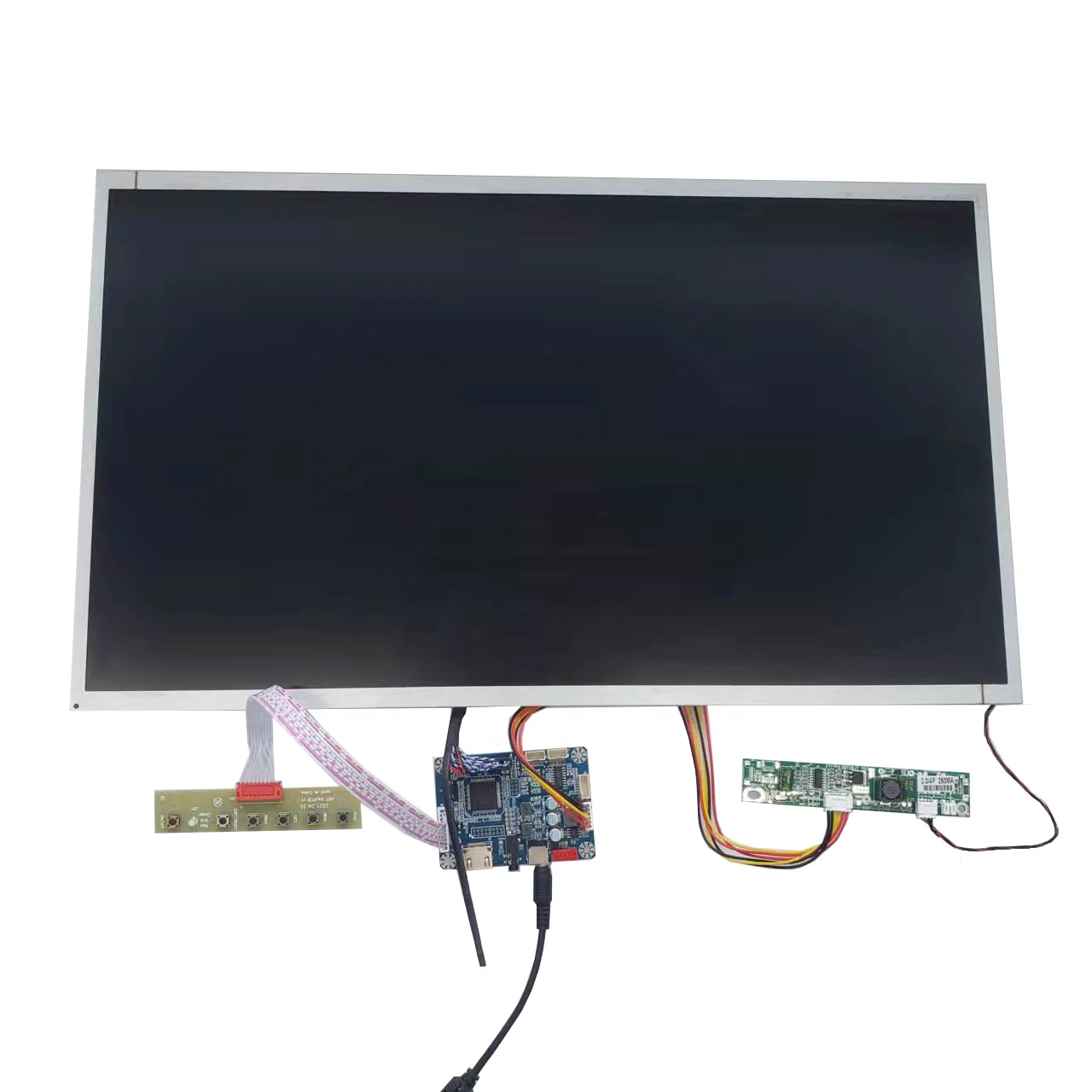

P215HVN01.2 screen with HDMI input LCD Controller board
m2 digital signage and display p215hvn012-2
m2 digital signage and display p215hvn012-3

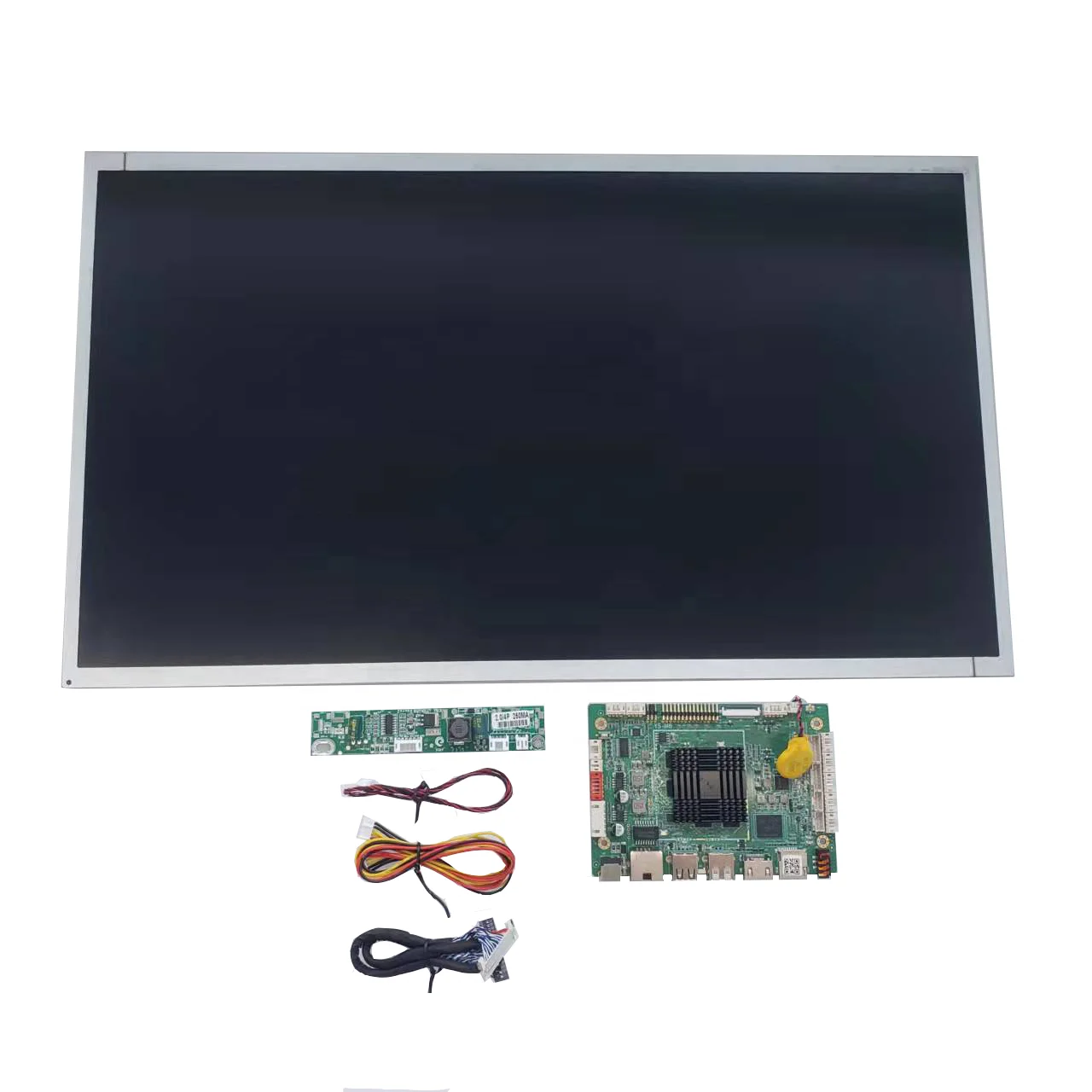

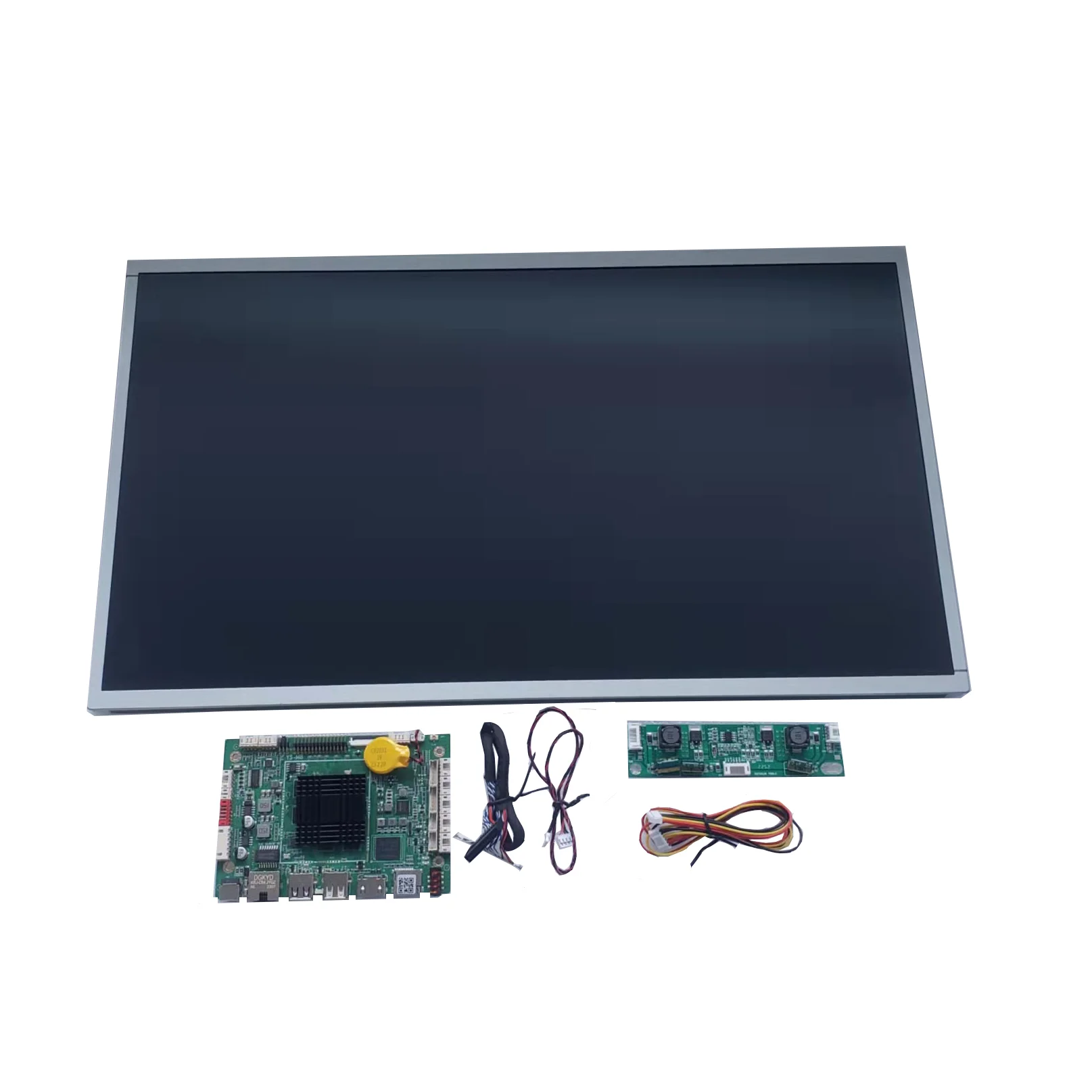

P215HVN01.2 screen with Android
m2 digital signage and display p215hvn012-4
Specification
Specification Android
m2 digital signage and display p215hvn012-5
CPU
RK3288/RK3399 optional
OS
Android 7.1/Android 9.0 optional
RAM
2GB DDR3(4GB is option
Network
Support RJ45 Ethernet, 2.4GHz WIFI,4.0 Bluetoot
Internal Storage
8GB/16G/32G EMMC Flash (Extensible
Video Format
RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4, etc
Decoding Ability
MAX. 2160P(3840X2160@60HZ)
Image Format
BMP/JPEG/PNG/GIF, et
USB2.0 Port
Port 5 USB HOST,1 USB OTG/HO
Ethernet
10M/100M s
LVDS Output
Support 60Hz 6Bit/8Bit Single or Dual Channel LVDS Max Resolution :1920X1080@60H
eDP Output
Support 1/2Lanes eDP signal output Max Resolution :1920X1080@60Hz
Power For Boar
12V or 12V/5VSB/STB
Power To LCD pane
3.3V/5V/12V
HDMI Output
Support HDMI2.0 4K@60HZ output
Audio Outpu
L&R audio-out（2X8Ω/5W speaker） Earphone(3.5mm Audio jack or PH 4pin Heade
System Updat
Support USB/TF Card updat
2.Specification LCD panel
m2 digital signage and display p215hvn012-6
Panel Brand
AUO
Panel Model

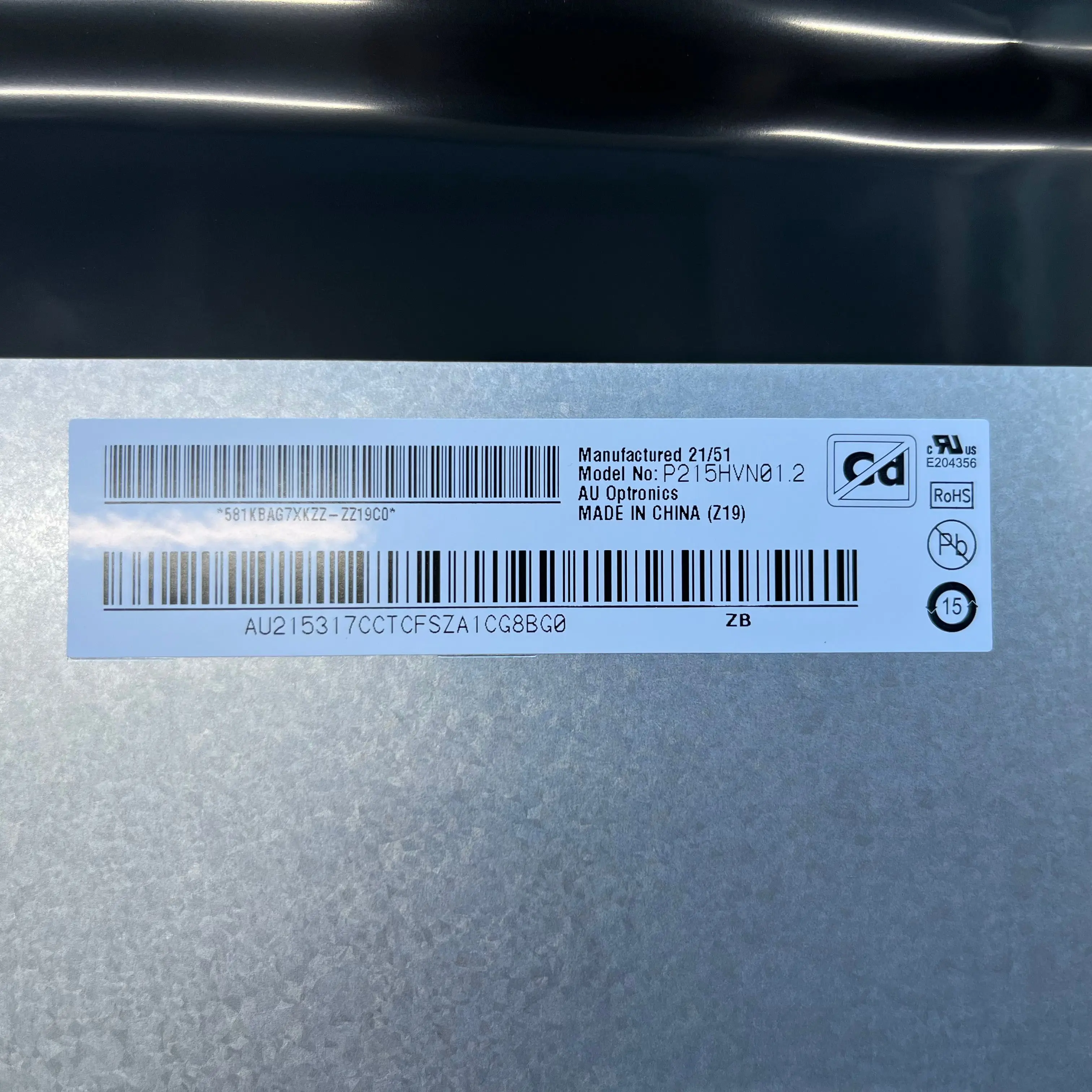

P215HVN01.2
Panel Size
21.5 inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1080
Pixel Format
RGB Vertical Stripe
Active Area
476.64(W)×268.11(H) mm
Outline Dim
495.6(W)×292.2(H) ×11(D) mm
Brightness
250 cd/m² (Typ.)
Contrast Ratio
300:1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
8(Typ.)(G to G)
Interface Type

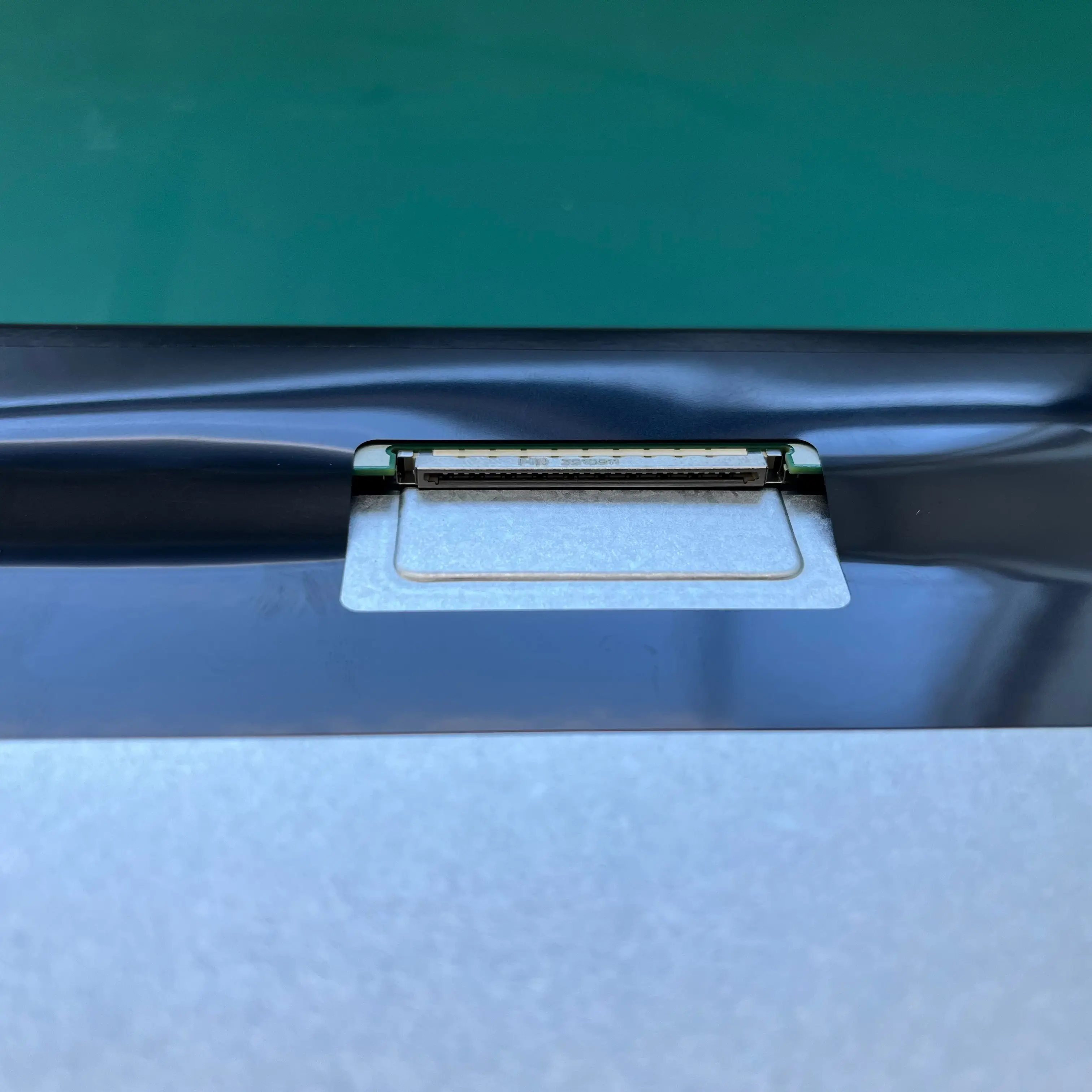

LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
