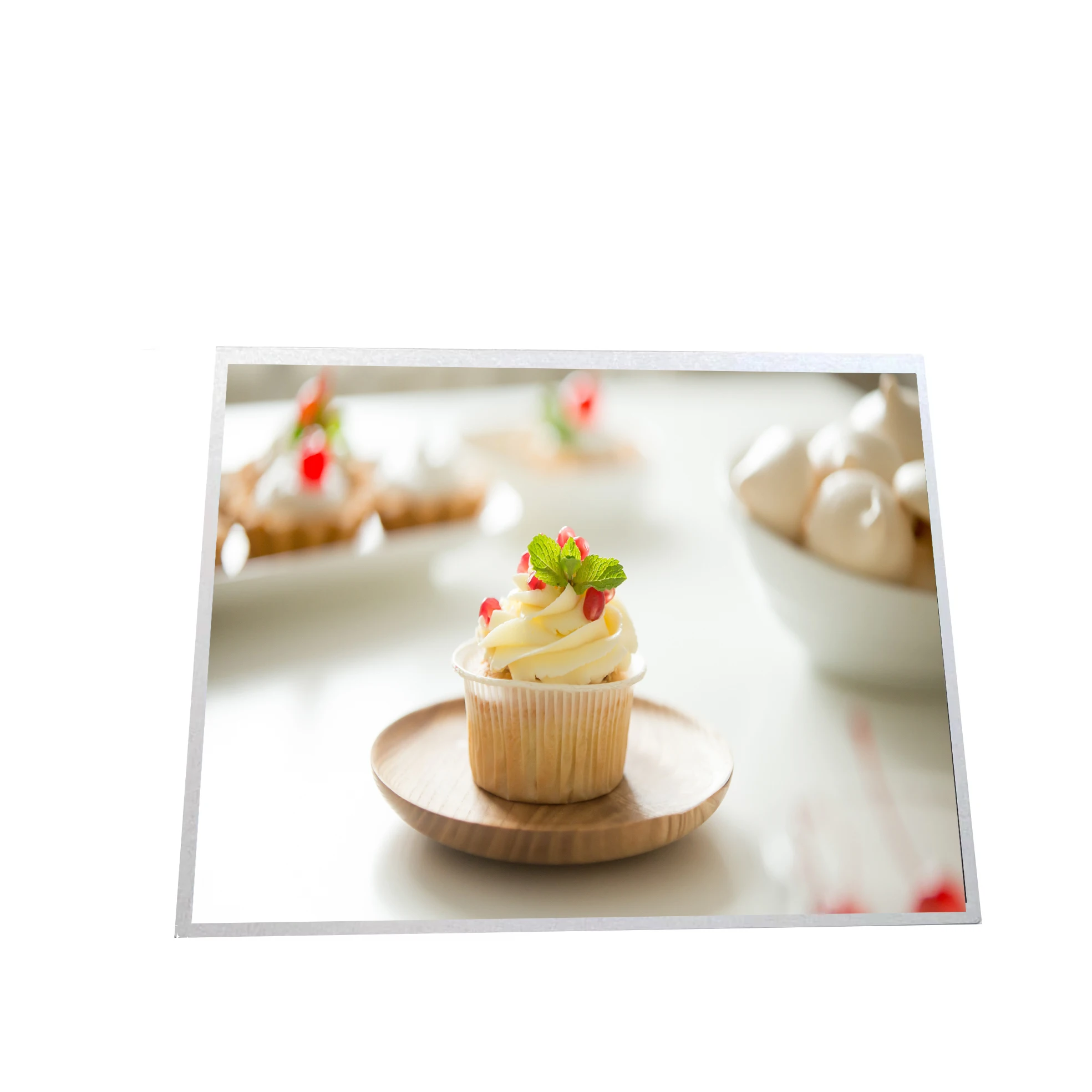

Innolux 12.1 Inch High Brightness Panel G121XCE-L02 Support 1024(RGB)x768,XGA 105PPI,500 Nits,outdoor Digital Screens

Product Description
Product Description
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-1
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-2
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-3
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-4
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-5
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-6
Innolux 12.1 inch high brightness panel G121XCE-L02 support 1024(RGB)x768,XGA 105PPI,500 nits,outdoor digital screens

Innolux 12.1 inch High brightness panel12.1 inch high brightness screenG121XCE-L02outdoor digital screens outdoor digital display digital signage outdoor

Support for HDMI input and Android. We support for all colors of the entire shell customization. We support for a variety of certification.
Panel Brand
Innolux
Panel Model
G121XCE-L02
Panel Size
12.1 inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
1024(RGB)x768
Pixel Format
RGB Vertical Stripe
Active Area
245.76(W)×184.32(H) mm
Outline Dim
260.5(W)×204(H) ×8.9(D) mm
Brightness
500 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Response Time
13/12 (Typ.)(Tr/Td)
Interface Type
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Power Supply
3.3V
Environment
Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -40 ~ 80 °C
Details Images
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-7
12.1 inch high brightness display with 1000-5000 high brightness.
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-8
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-9
Brightness Test
Enlarged close-up of the luminometer
Product Usage
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-10
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-11
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-12
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-13
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-14
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-15
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-16
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-17
Related Products
Packing&Shipping

1.About the test
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-18
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-19

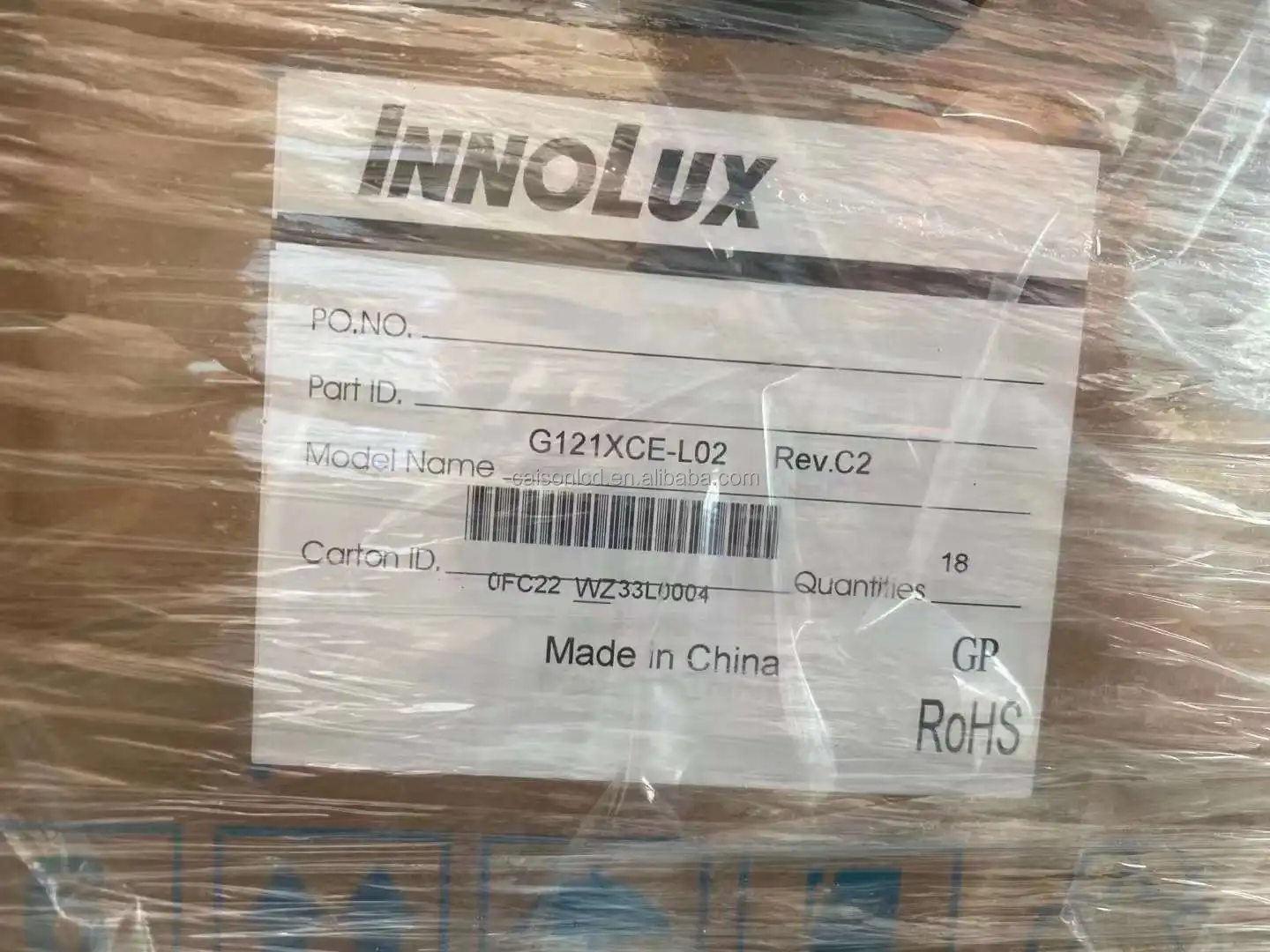

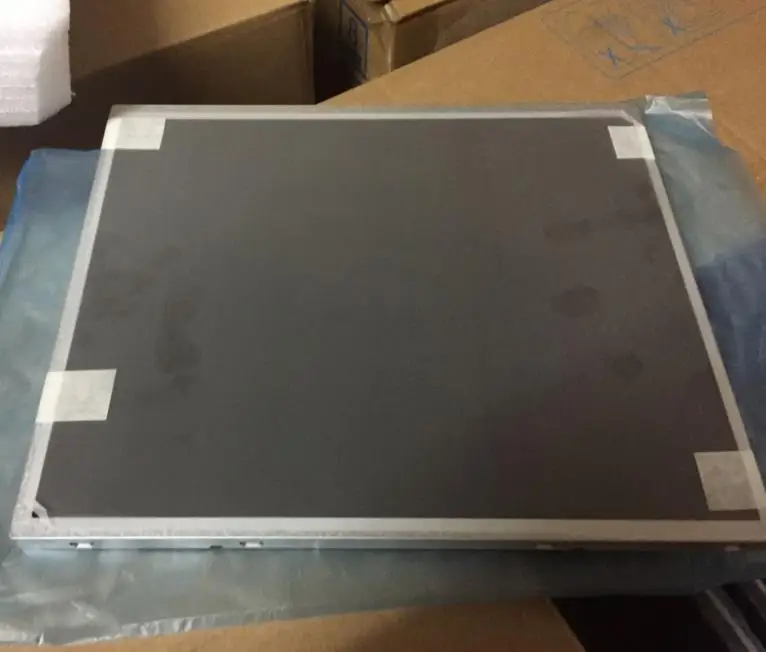

2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-20
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-21
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-22
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-23
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-24
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-25
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-26
3.About the Shipping
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-27
Company Introduction
Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
LCD/LED panel(4.3 inch -110 inch );
LCD kits(1080P-5K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);
High brightness panel;
We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-28
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-29
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-30
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-31
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-32
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-33
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-34
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-35
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-36
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-37
product innolux 121 inch high brightness panel  g121xce l02 support 1024rgbx768xga 105ppi500 nitsoutdoor digital screens-38
FAQ
1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
