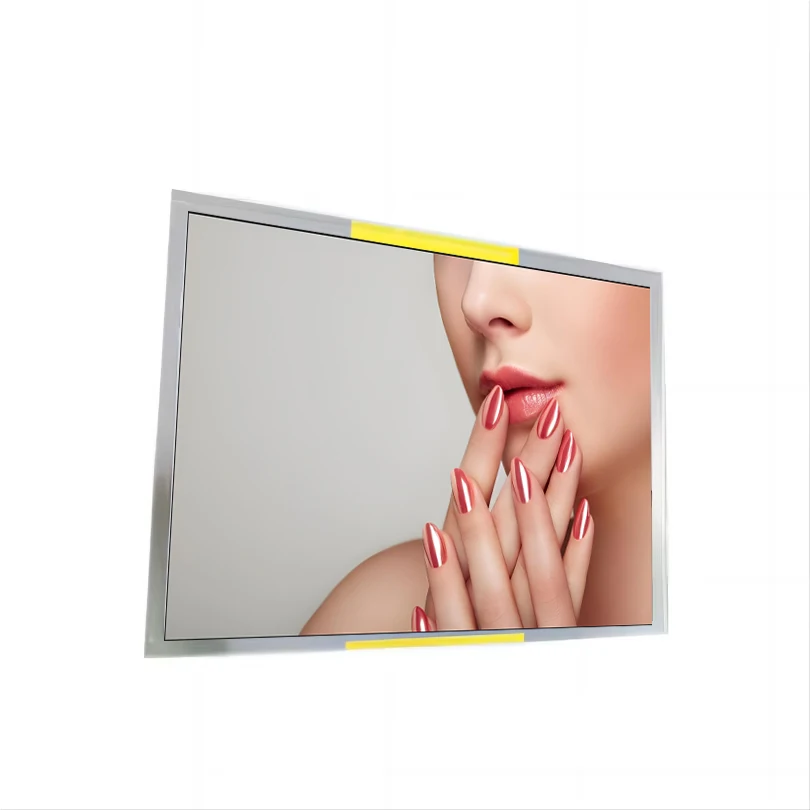

Innolux 21.3 Inch High Brightness LCD PanelR213RFE-LU2 Support 2048(RGB)*1536 QXGA 120PPI 2000 Nits Outdoor Digital Screens

Product Description

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-1

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-2

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-3

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-4

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-5

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-6

Hot sales Innolux 21.3 Inch High Brightness LCD PanelR213RFE-LU2 Support 2048(RGB)*1536 QXGA 120PPI 2000 Nits Outdoor Digital Screens

Resolution 2048(RGB)*1536, Support for HDMI input and Android.

We support for all colors of the entire shell customization.

We support for a variety of certification.

Panel	R213RFE-LU2	Brand	Innolux
Resolution	2048(LCR)×1536, QXGA, 120PPI	Diagonal Size	21.3 inch
Active area	432(W)×324(H) mm	Response Time	15/13 (Typ.)(Tr/Td) ms
Viewing angle	89/89/89/89 (Typ.)(CR≥10)	Interface Type	LVDS (4 ch, 8/10-bit) , 102 pins Connector
Display mode	IPS, Normally Black, Transmissive	Power Supply	12.0V (Typ.)
Contrast ratio	1500:1 (Typ.) (TM)	Luminance	2000 cd/m² (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Products Description

Innolux 21.3 Inch High Brightness LCD PanelR213RFE-LU2 Support 2048(RGB)*1536 QXGA 120PPI 2000 Nits Outdoor Digital Screens

Brightness Test

Enlarged close-up of the luminometer

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-10

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-11

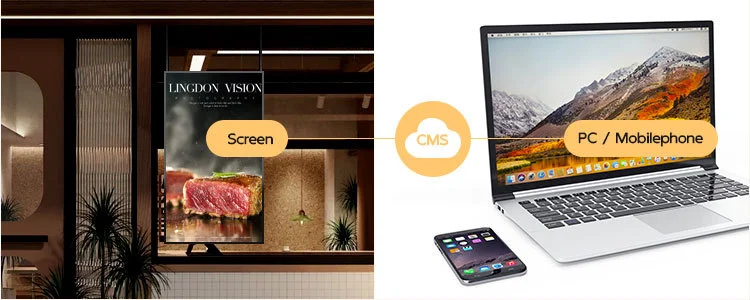

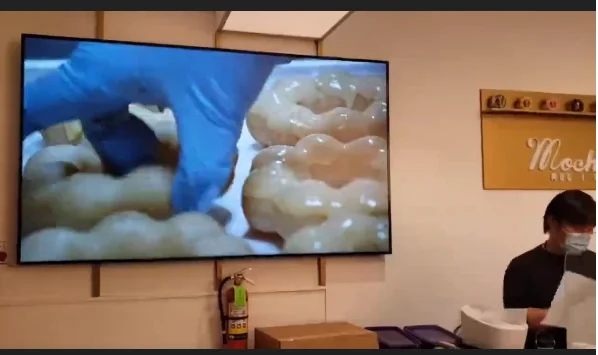

Product Usage

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-12

Related Products

Packing&Shipping

1.About the test

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-13

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-14

2.About the Packing

EPE with Carton with Carton & Plywood case EPE with Carton&Pallet

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-15

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-16

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-17

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-18

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-19

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-20

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-21

3.About the Shipping

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-22

Company Introduction

Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）

Round LCD display

Square LCD display

stretched Bar LCD display

LCD advertising machine (4.3 inch -110 inch )

LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)

LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-23

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-24

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-25

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-26

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-27

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-28

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-29

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-30

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-31

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-32

product innolux 213 inch high brightness lcd panelr213rfe lu2 support 2048rgb1536 qxga 120ppi 2000 nits outdoor digital screens-33

FAQ

1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
