LCD Controller Type-C DP USD Input 5K Resolution 5120x2880 60Hz Support V-By-one EDP Output LM270QQ2-SPA3 LM270QQ1-SDF1

Spu:
1600246516233
Product Description
Specification
R1811 Support 5K 5120 x2180@60Hz
This product support TFT LCD forVGA,SVGA, XGA,SXGA,UXGA, QHD and QQHD resolution, for example: LG、Philips、SAMSUNG、AUO.

R1811 Support HDR10 High Dynamic Range image (High Dynamic Range, HDR), compared with the ordinaryimages, can provide more Dynamic Range and image details.

R1811 HDMI interface supports HDMI2.0 protocol and supports hardware decoding signal up to 4K@60Hz
DP interface support DP1.1 ,DP1.2 ande DP1.4 protocol, support hardware decoding signal up to 5K@60Hz andsupport DP clone

R1811 Support the FreeSync 2 technology of AMD graphics card, improve the picture tear, cardan problem, improve the picture quality.Support PIP,POP and Four Screen
Products Description

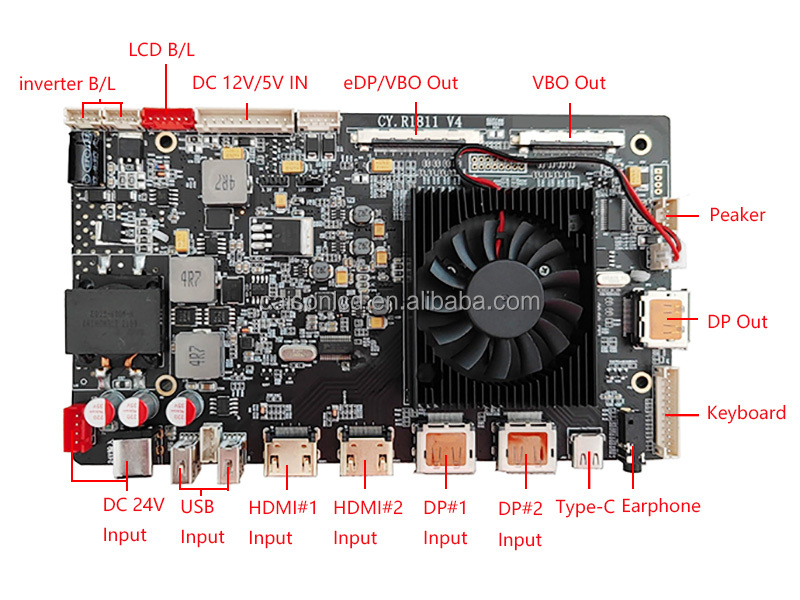

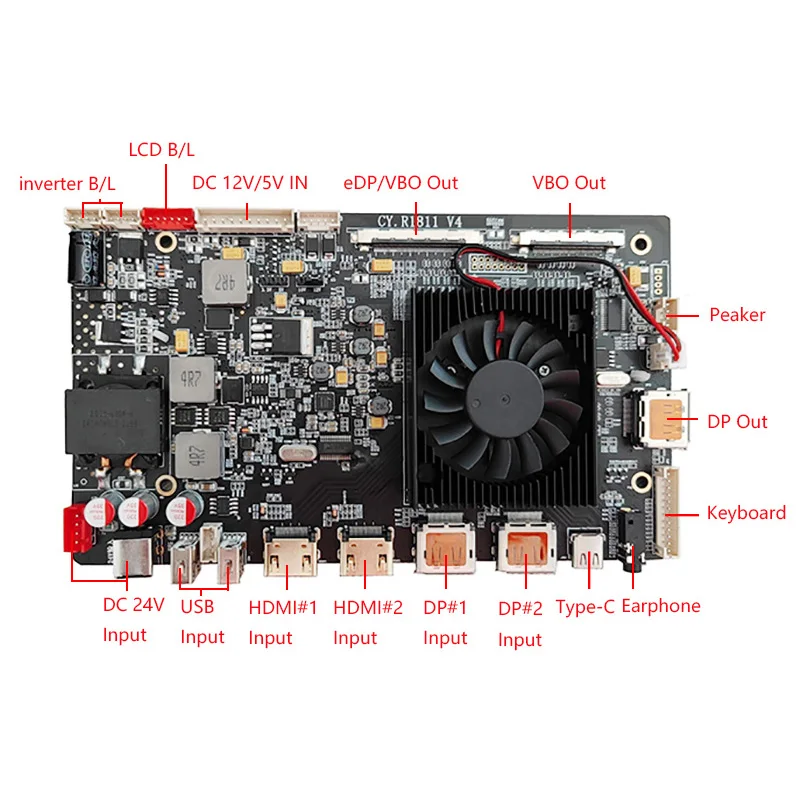

Interface Picture
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-1
Panel interface type
eDP HRB、eDP HRB2、VByOne
LCD Resolution
Up to 5120x2880
Signal interface
HDMI*2、TypeC*1、DP in*2、DP out、3.5 Earphone Output


Power
Power Input
DC12V 4A ,5V 3A ,5VSB 1.5A or single DC24V
Power Control
Normal Working Mode, Low power mode
power management
Standby Power Consumption ≤1W
OSD Menu
Picture 、Position Adjust
Brightness/Contrast/Saturation/Hue/Position Adjust
OSD Language
Chinese English(addability)
Audio output power
2 X 10W(8Ω)
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-2

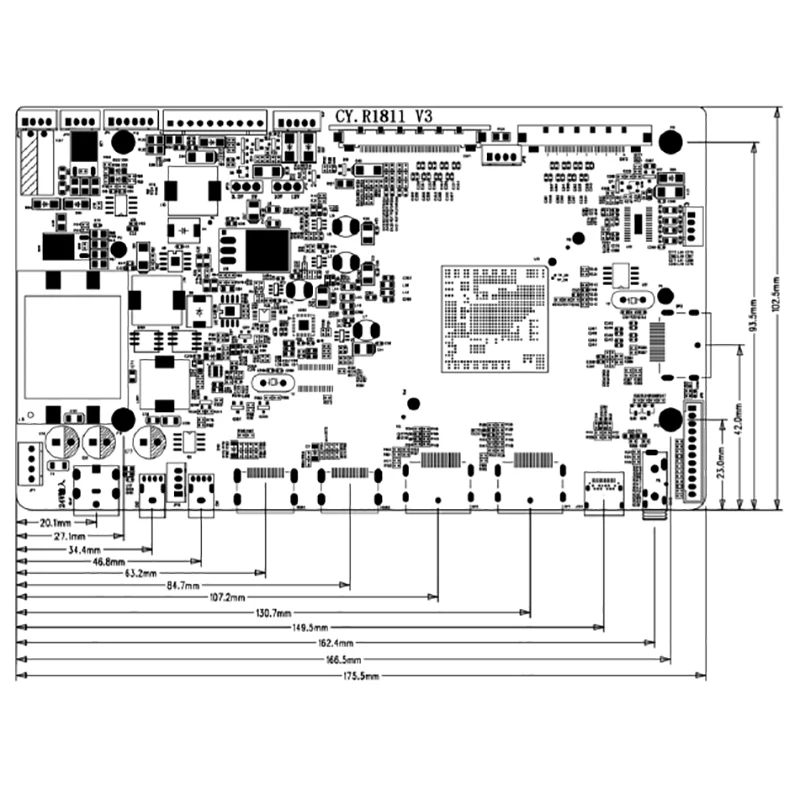

Size of the board
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-3
Related Products
Product Usage
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-4
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-5
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-6
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-7
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-8
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-9
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-10
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-11
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-12
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-13
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-14
product lcd controller type c dp usd input 5k resolution 5120x2880 60hz support  v by one edp  output lm270qq2 spa3 lm270qq1 sdf1-15
