LVDS eDP LCD Controller board with Square TFT LCD Panel 1920*1920 33 inch LCD Display DV332X2M-NV0

Product Description

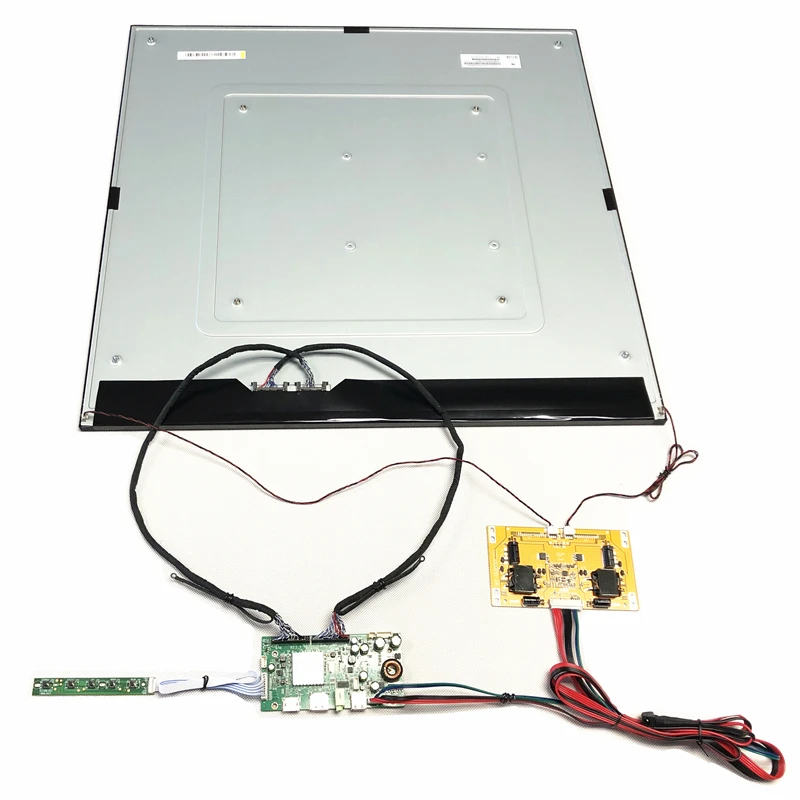

LVDS eDP LCD Controller Kits with Square TFT LCD Panel 1920*1920 33 inch LCD Display DV332X2M-NV0

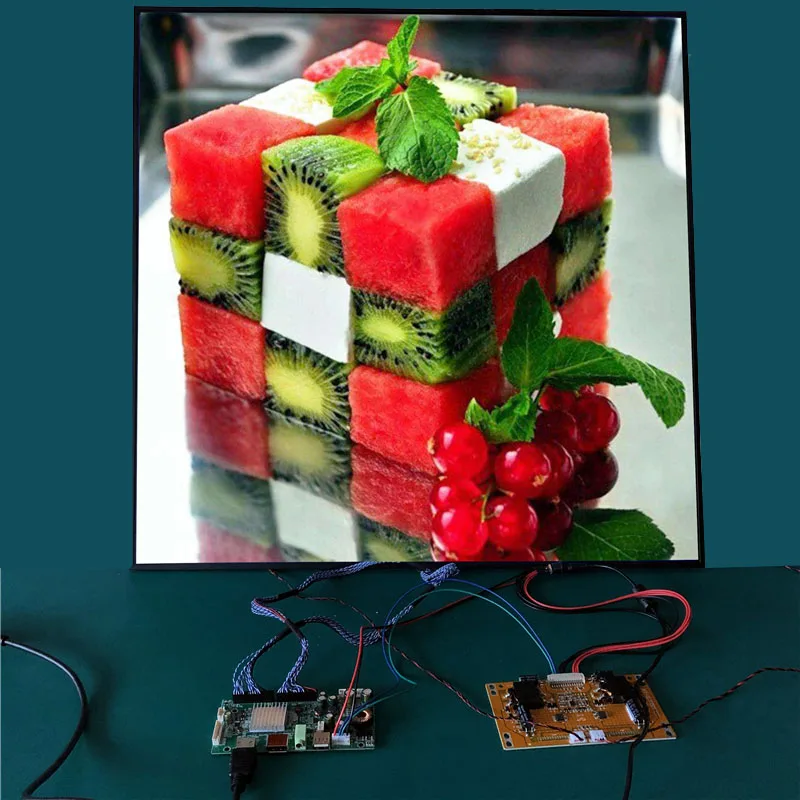

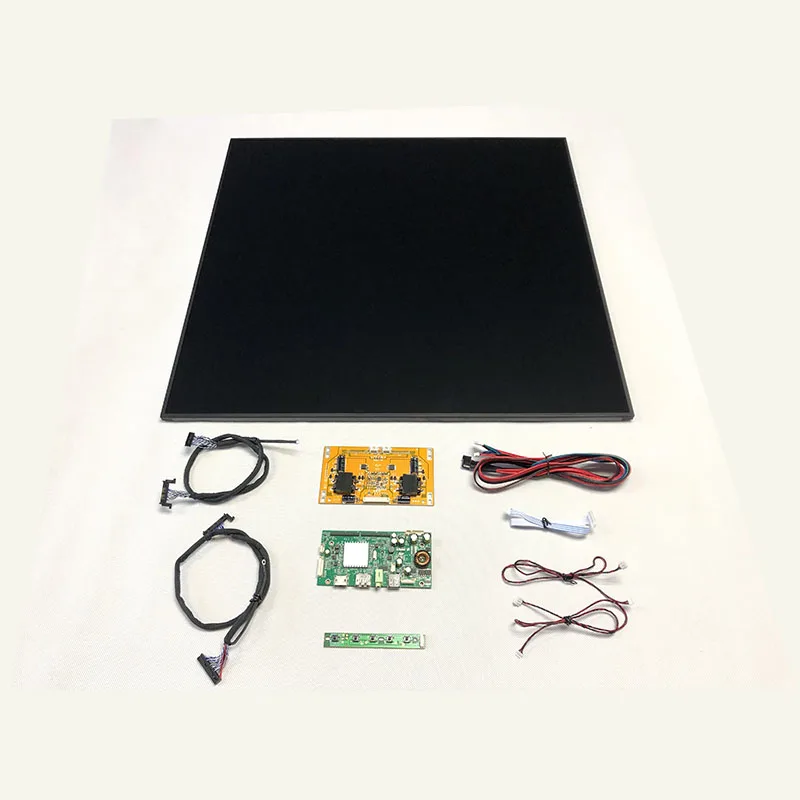

Product picture

product lvds edp lcd controller board with square tft lcd panel 19201920 33 inch lcd display dv332x2m nv0-1

product lvds edp lcd controller board with square tft lcd panel 19201920 33 inch lcd display dv332x2m nv0-2

product lvds edp lcd controller board with square tft lcd panel 19201920 33 inch lcd display dv332x2m nv0-3

product lvds edp lcd controller board with square tft lcd panel 19201920 33 inch lcd display dv332x2m nv0-4

product lvds edp lcd controller board with square tft lcd panel 19201920 33 inch lcd display dv332x2m nv0-5

product lvds edp lcd controller board with square tft lcd panel 19201920 33 inch lcd display dv332x2m nv0-6

Product Paramenters

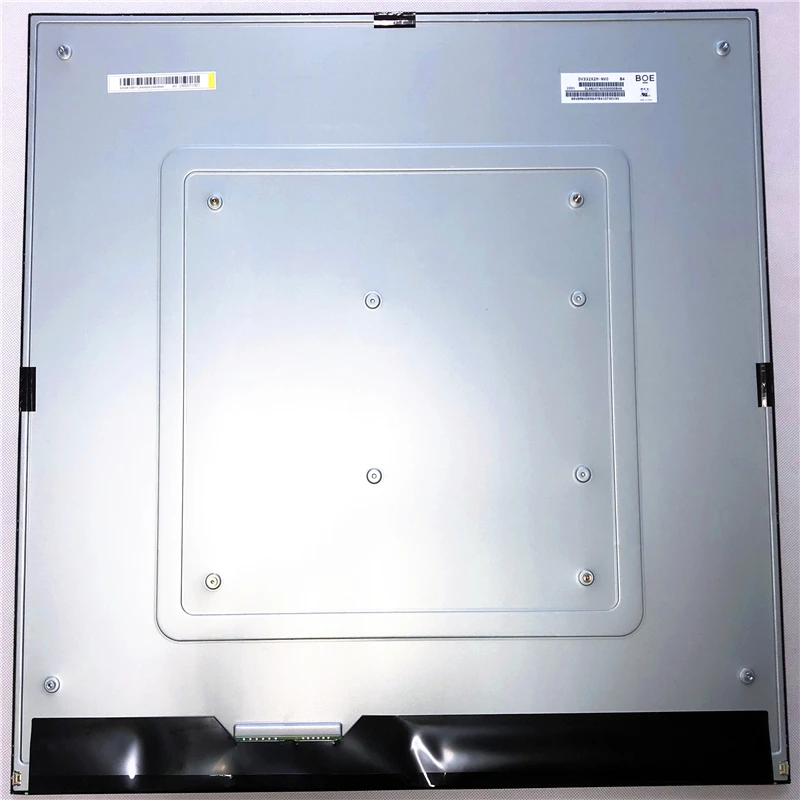

1.Specification of the 33 inch LCD panel

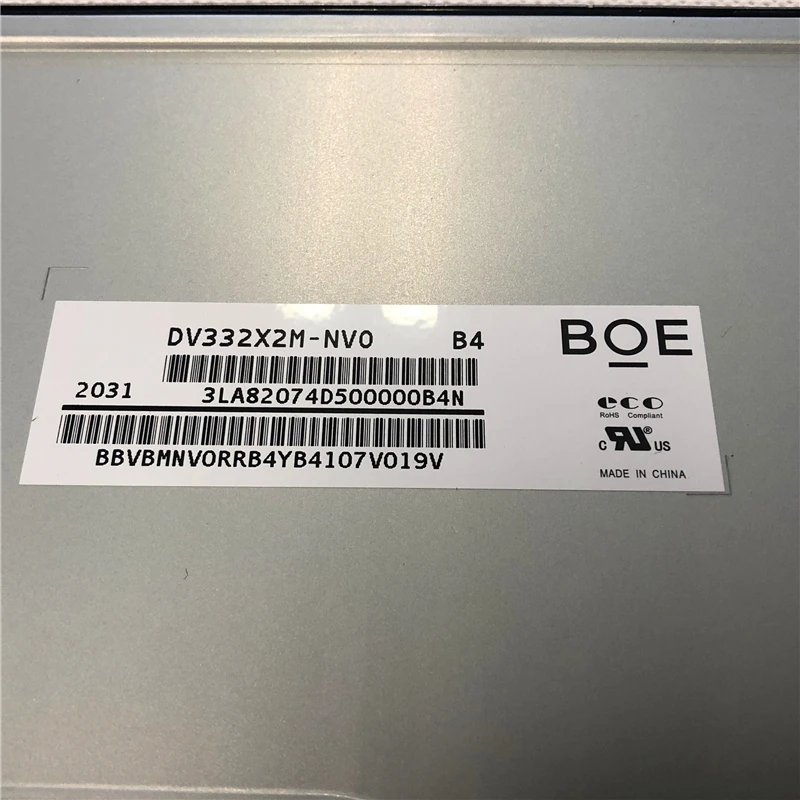

1. DV332X2M-NV0

Panel Brand	BOE	Panel Model	DV332X2M-NV0
Panel Size	33	Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1920 81PPI	Pixel Format	RGB Vertical Stripe
Display Area	596.16(H)×596.16(V) mm	Bezel Opening	601.96(H)×601.96(V) mm
Outline Size	612.96(H)×612.96(V) mm	Surface	Antiglare (Haze 25%), Hard coating (3H)
Brightness	500 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	Symmetry	Display Mode	8 (Typ.)(G to G)
Best View on	89/89/89/89 (Typ.)(CR≥10)	Response Time	IPS, Normally Black, Transmissive
Display Colors	16.7M 72% NTSC	Lamp Type	WLED , 30K hours , W/O Driver
Frequency	60Hz	Touch Screen	Without
Signal Interface	LVDS (4 ch, 8-bit) , 92 pins Connector
Input Voltage
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

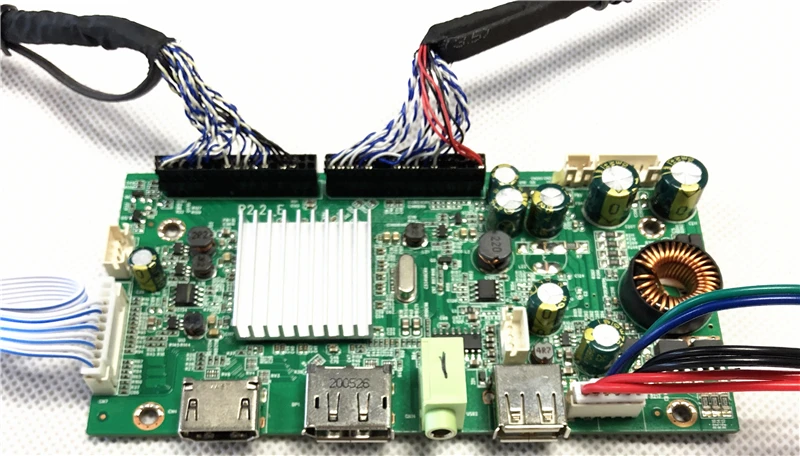

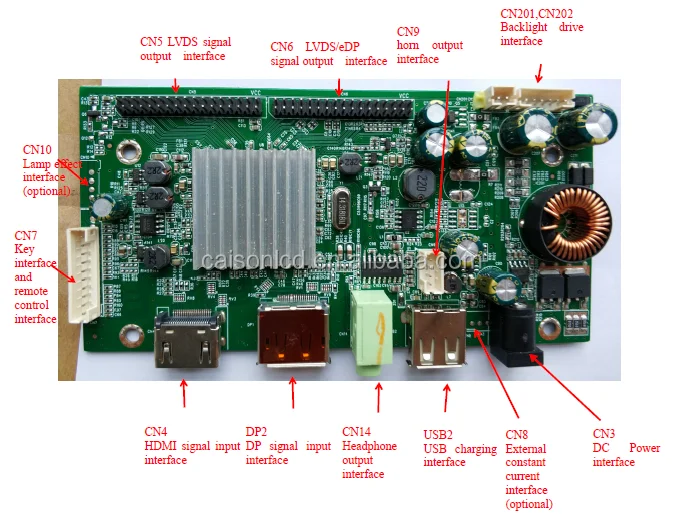

2. LCD Controller board

product lvds edp lcd controller board with square tft lcd panel 19201920 33 inch lcd display dv332x2m nv0-7

CHIPSET	RTD2483BD(Realtek)
Support LCD Panel	Interface	Single/Dual 6/8 bit LVDS
Support LCD Panel		Resolution	Up to 1920X1080@60Hz
Power	For board	12V DC Power Supply
		To LCD panel	3.3V,5V,12V
		Management	Low Power Consumption Mode
		Standby	≤0.5 W
OSD Language	Simple Chinese、English is default. Other language support customized.
Key functions	6 keys	ON/OFF,Menu,Right,Left,Exit,Auto
Video input	HDMI	480i,480p,576i,576p,720p 1080i,1080p
Video input		VGA	Analog RGB(0.7Vp-p) V-H SYNC Separator(TTL)
Audio input	0.2 – 1.5 Vrms
Audio output	2X6W (8Ω) THD+N<10%
Extend function	IR control, Brightness Control,On board several type of different firmware(Optional)
Dimension	107mm(L)65.5mm(W)17mm(H)

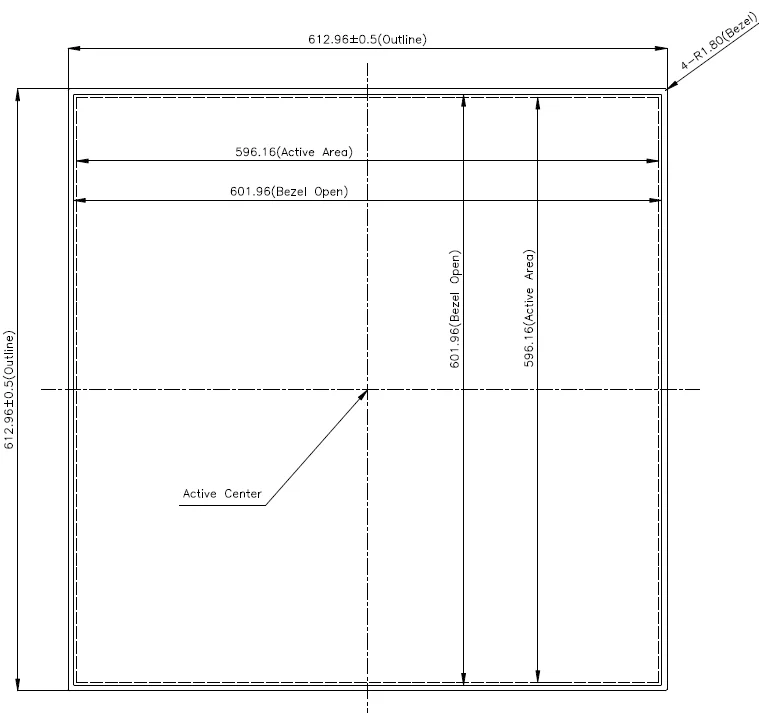

3. product size

DV332X2M-NV0
612.96x612.96mm

LCD controller board

PCB thickness + height of the highest part is 16mm
PCB length ==128. 0mm
PCB width-65. 0mm
PCB thickness=1. 2mm

Application

Related Products

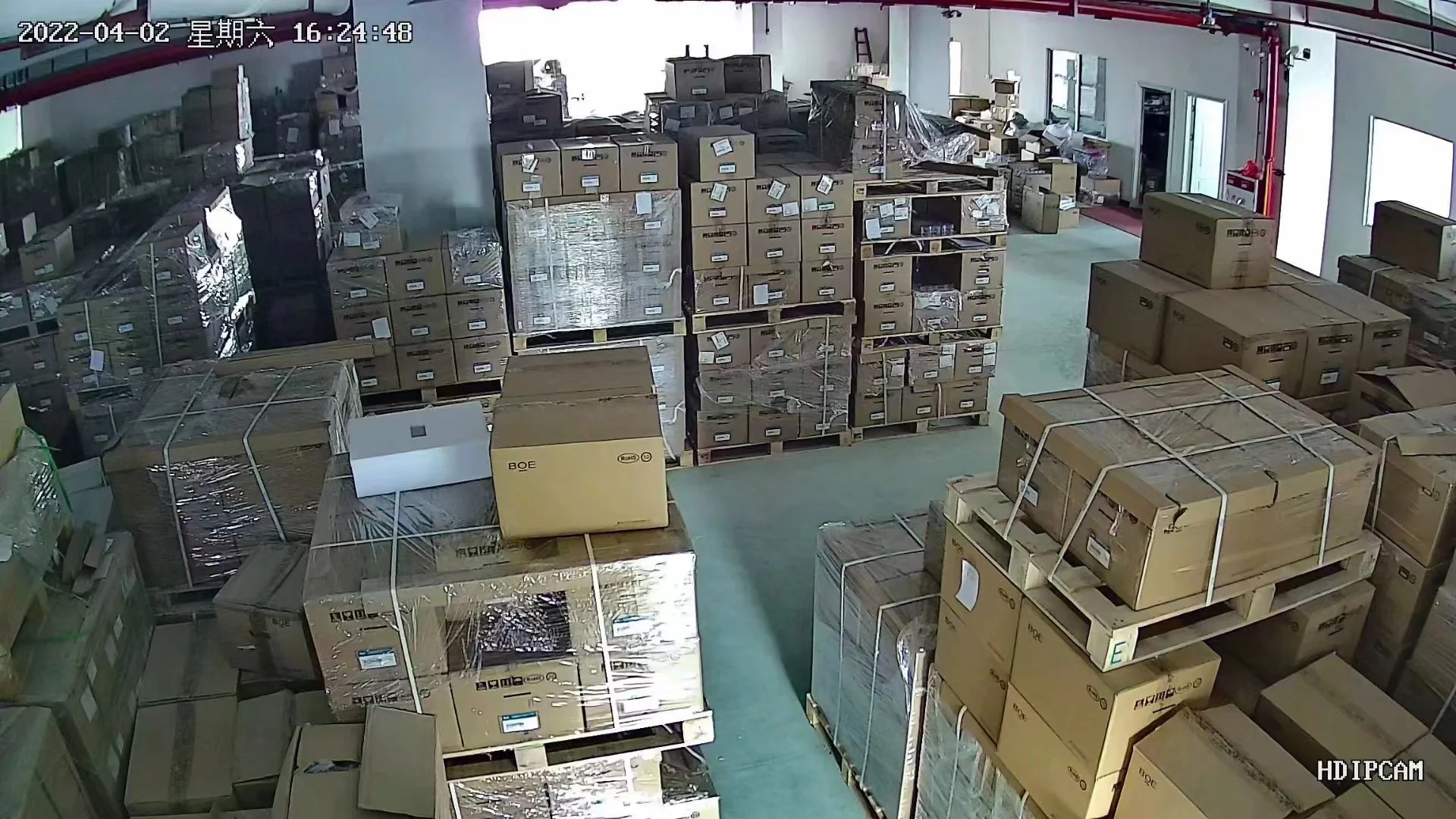

Packing & Delivery

product lvds edp lcd controller board with square tft lcd panel 19201920 33 inch lcd display dv332x2m nv0-10

product lvds edp lcd controller board with square tft lcd panel 19201920 33 inch lcd display dv332x2m nv0-11

product lvds edp lcd controller board with square tft lcd panel 19201920 33 inch lcd display dv332x2m nv0-12

product lvds edp lcd controller board with square tft lcd panel 19201920 33 inch lcd display dv332x2m nv0-13

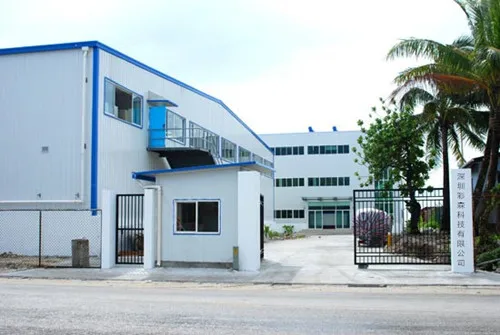

Company Profile
