NLT 21.3 Inch High Brightness LCD Panel NL256204AM16-02A Support 2560(RGB)*2048 QSXGA 153PPI 2000 Nits Digital Screens

Product Description

Product details

NLT 21.3 Inch High Brightness LCD Panel NL256204AM16-02A Support 2560(RGB)*2048 QSXGA 153PPI 2000 Nits Digital Screens

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-3

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-4

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-5

Product Description

NLT 21.3 Inch High Brightness LCD Panel NL256204AM16-02A Support 2560(RGB)*2048 QSXGA 153PPI 2000 Nits Digital Screens

Panel	NL256204AM16-02A	Brand	NLT
Resolution	2560(LCR)×2048, QSXGA, 153PPI	Diagonal Size	21.3 INCH
Active area	422.4(W)×337.92(H) mm	Power Supply	12.0 V (Typ.)
Viewing angle	88/88/88/88 (Typ.)(CR≥10)	Response Time	15/15 (Typ.)(Tr/Td) ms
Display mode	SFT2, Normally Black, Transmissive	Interface Type	LVDS (4 ch, 10-bit) , 92pins Connector
Contrast ratio	1400:1 (Typ.) (TM)	Luminance	2000cd/m² (Typ.)
Environment	Operating Temperature: 0 ~ 55°C ; Storage Temperature: -20~ 60 °C

Product Usage

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-9

Related Products

Packing&Shipping

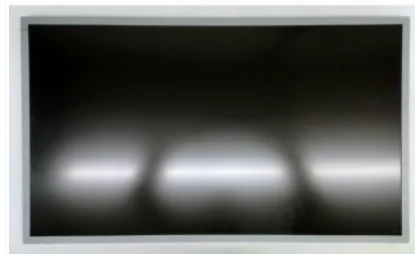

1.About the test

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-10

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-11

2.About the Packing

EPE with Carton with Carton & Plywood case EPE with Carton&Pallet

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-12

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-13

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-14

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-15

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-16

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-17

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-18

3.About the Shipping

product nlt 213 inch high brightness lcd panel nl256204am16 02a support 2560rgb2048 qsxga 153ppi 2000 nits digital screens-19
