Original BOE 15" LVDS LCD Screen DV150X0M-N16 15 Inch 600nits High Brightness Display for Outdoor Digital Signage Applications

Product Description
Product Description
Original BOE 15" LVDS LCD Screen DV150X0M-N16 15 inch 600nits High Brightness Display for Outdoor Digital Signage Applications
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-1

Specification of the LCD panel
Brand
BOE
Model
DV150X0M-N16
Diagonal Size
15 inch
Luminance
600 cd/m² (Typ.)
Resolution
1024(RGB)×768, XGA 85PPI
Frame Rate
RGB Vertical Stripe
Active Area
304.128(W)×228.096(H) mm
Outline Dim

326.5(W)×253.5(H) ×10.4(D) mm
Signal types
LVDS (1 ch, 8-bit) , 20 pins Connector
Contrast Ratio
1000:1 (Typ.) (TM)
Environment
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C

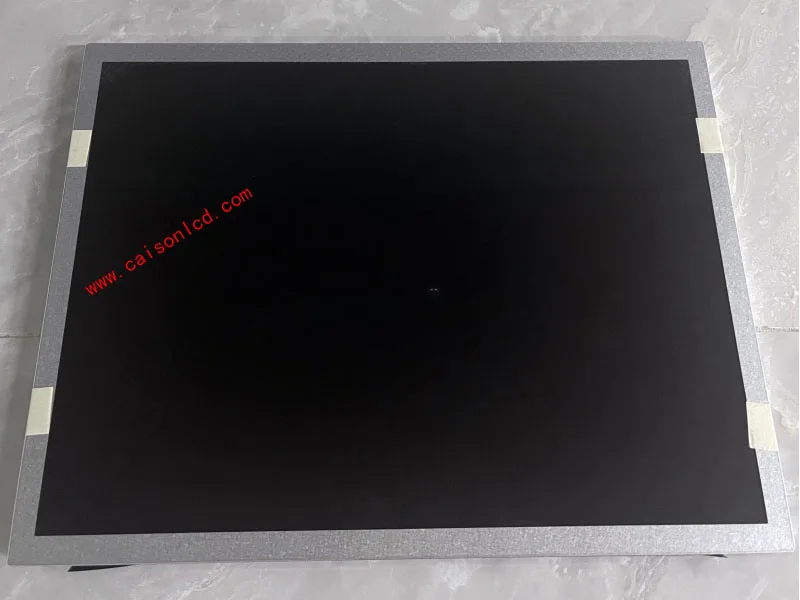

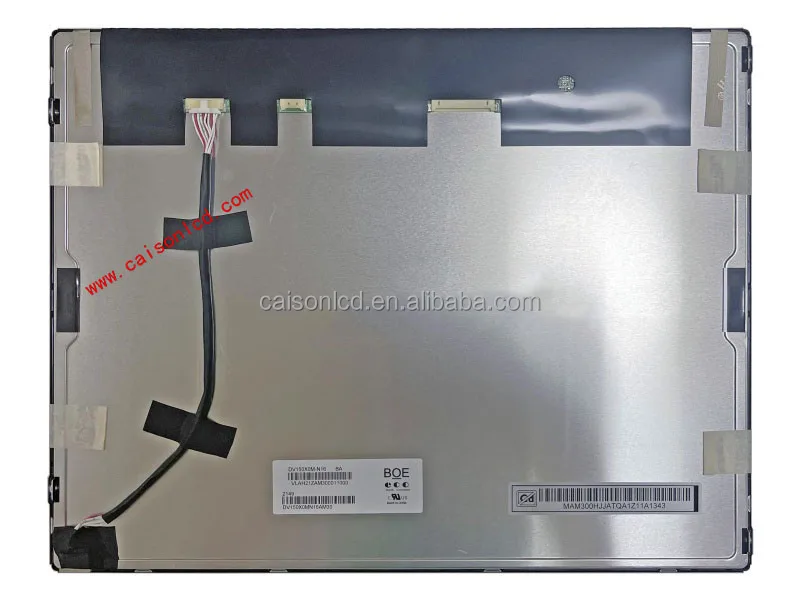

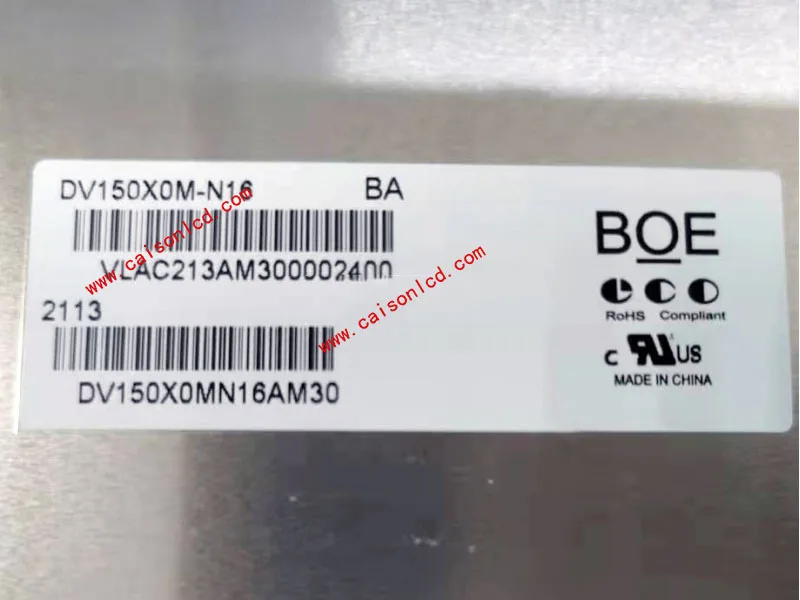

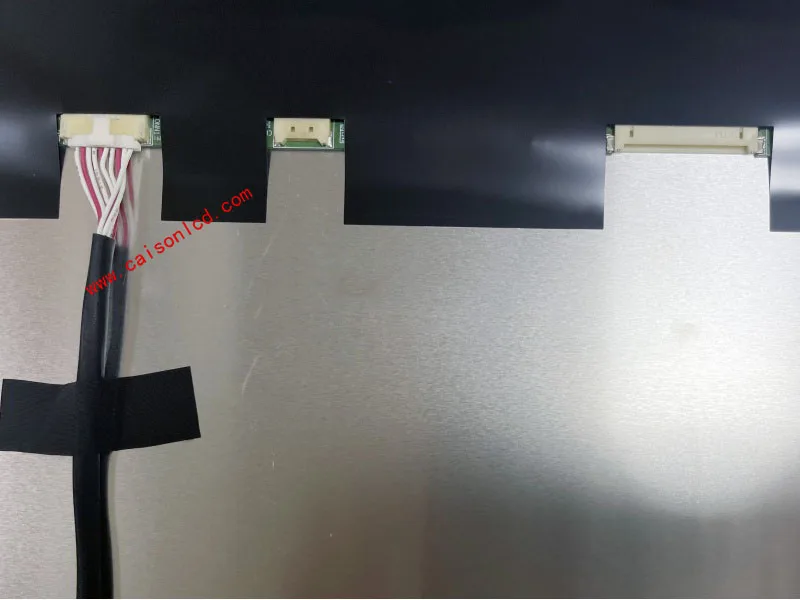

product picture
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-2
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-3
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-4
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-5
Related Products
Product Usage
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-6
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-7
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-8
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-9
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-10
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-11
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-12
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-13
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-14
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-15
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-16
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-17
Packing&Shipping

1.About the test
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-18
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-19
2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-20
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-21
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-22
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-23
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-24
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-25
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-26
3.About the Shipping
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-27
Company Introduction
Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
LCD/LED panel(4.3 inch -110 inch );
LCD kits(1080P-5K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);
High brightness panel;
We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-28
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-29
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-30
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-31
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-32
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-33
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-34
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-35
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-36
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-37
product original boe 15 lvds lcd screen dv150x0m n16 15 inch 600nits high brightness display for outdoor digital signage applications-38
FAQ
1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
