Portable Display LCD Controller Board with TYPE-C /DP Support 2560*1600,60Hz, Support EDP 30PIN or 40PIN LCD Panel

Product Description

Portable display controller board with TYPE-C /DP, support 2560*1600@60Hz,support EDP 30PIN or 40PIN LCD panel

GENERAL DESCRIPTION
1. RTD2556QV4.0 LCD driver board with TYPE-C interface, can support the highest resolution 2560×1600@60Hz, can drive EDP interfacepanel.

2. RTD2556QV4.0 can support MINI , TYPE-C, PD power input.(Type-C signal interface (two-way interface, which can supply power to the mainboard, and charge the device in reverse) Type-C signal interface supports data transmission, forward and opposite connection, external charging and imagedisplay . Mobile terminal devices that support all almighty Type-C interfaces, such as Huawei mobile phone (Mate10/Mate10 Pro/P20/P20 Pro/Mate20), hammer phone (R1 / nut 2pro), Apple Macbook, Huawei matebook and other Type-C interface laptop computers and support touch screen (phone and laptops ) This input Type-C signal, can be controlled by screen touch operation).

3.Type-C power supply interface, supporting PD standard fast charging protocol, can be adapted to PD power supply to Type-C signal interface connected to the almighty Type-C device for fast charging function.)

Note: The specification of the board includes the description of all functions.
Therefore, our clients can select the functions which they require to produce the board. But the specification can be introduced universally.

Specification

MARKET AREA	Worldwide
OSD LANGUAGE	(Chinese,English,French,Spanish,Portuguese,Russian,Arabic)(Option )
CHIPSET	RTD2556-CG
Support LCD Panel	Panel type	EDP
		Interface	30 PIN/0.5 or 40PIN/0.5 EDP INTERFACE
	Support LCD Panel	Resolution	2560×1600@60Hz
Power	DC Input Requirement	DP power:5V/9V/12V/15V/20V
		To LCD panel	3.3V
		Management	Low Power Consumption Mode.standby≤0.25W
		AUDIO OUTPUT	2*1.5W@ 4Ω
Terminal(input)	Input	1×MINI terminal
	Video Input	TYPE-C	1×TYPE-C terminal
	Audio input	DP	1×TYPE-C terminal
Terminal (output)	To Panel	EDP 30PIN or 40PIN
Terminal (output)	Extend function	Speaker Out	1×SPEAKER INTERFACE

Products Description

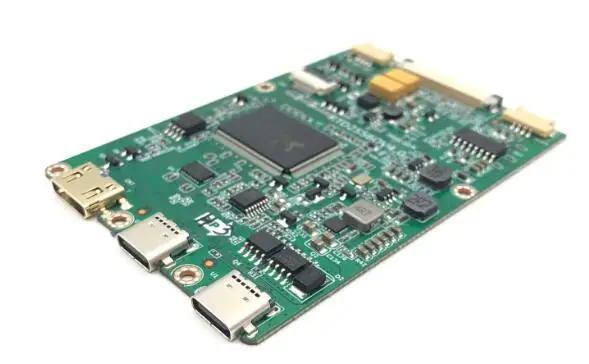

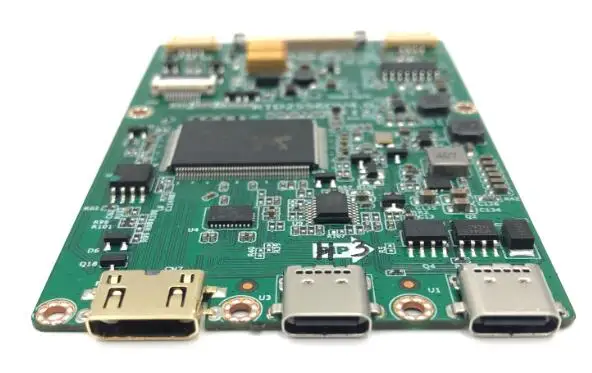

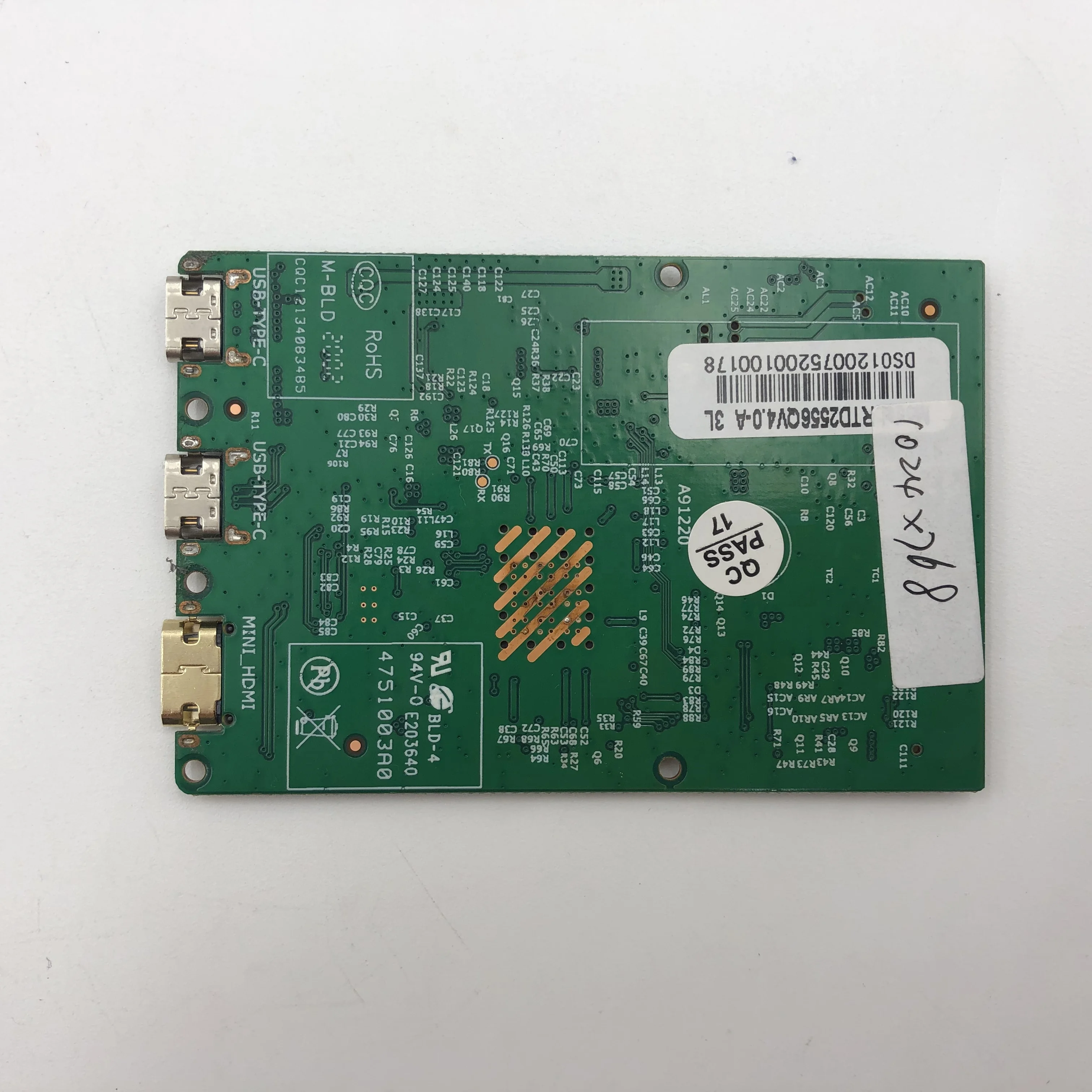

Interface Picture

dp support 2560160060hz support edp 30pin or 40pin lcd panel-1

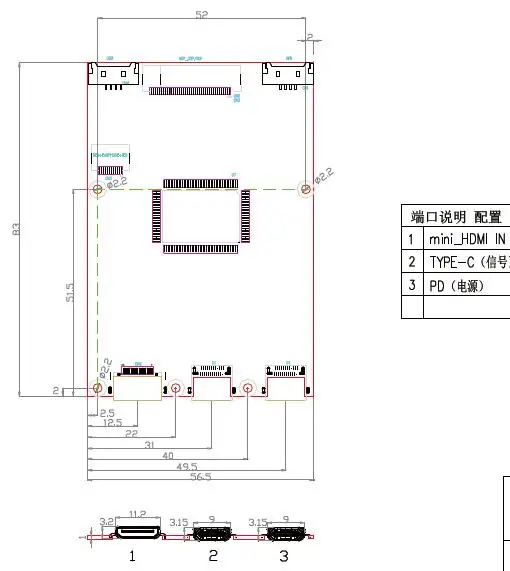

Size of the board
