Product Description
Product Description
product samsung 156 inch 4k oled modules screen atna56wr18 0 tft type with rgb support and rtd279514 oled controller board lcd kit-1
product samsung 156 inch 4k oled modules screen atna56wr18 0 tft type with rgb support and rtd279514 oled controller board lcd kit-2
product samsung 156 inch 4k oled modules screen atna56wr18 0 tft type with rgb support and rtd279514 oled controller board lcd kit-3
Specification of the 4K LCD panel
Panel Brand
Samsung
Model P/N
ATNA56WR18
Panel Size
15.6"
Panel Type
AM-OLED, OLED , Full Module
Resolution
3840(RGB)×2160, UHD 283PPI
Pixel Format
RGB Vertical Stripe
Active Area
344.218(W)×193.622(H) mm
Bezel Opening
-
Outline Dim.
348.218 × 215.662 × 2.9 (H×V×D)
Treatment
Glare (Haze 0%)
Luminance
440 cd/m² (Typ.)
Contrast Ratio
100000:1 (Typ.) (TM)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Response Time
1 (Typ.)(Tr+Td)
Good View at
Symmetry
Operating Mode
-
Color Depth
1.06B 100% DCI-P3
Light Source
self
Outline Shape
Slim (PCBA Flat, T≤3.2mm)
Touch Panel
Without
Refresh Rate
60Hz
Signal Type
eDP (4 Lanes) , eDP1.4b , HBR2 (5.4G/lane) , 40 pins Connector
Voltage Supply
3.3V (Typ.)
Max. Ratings
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 85 °C

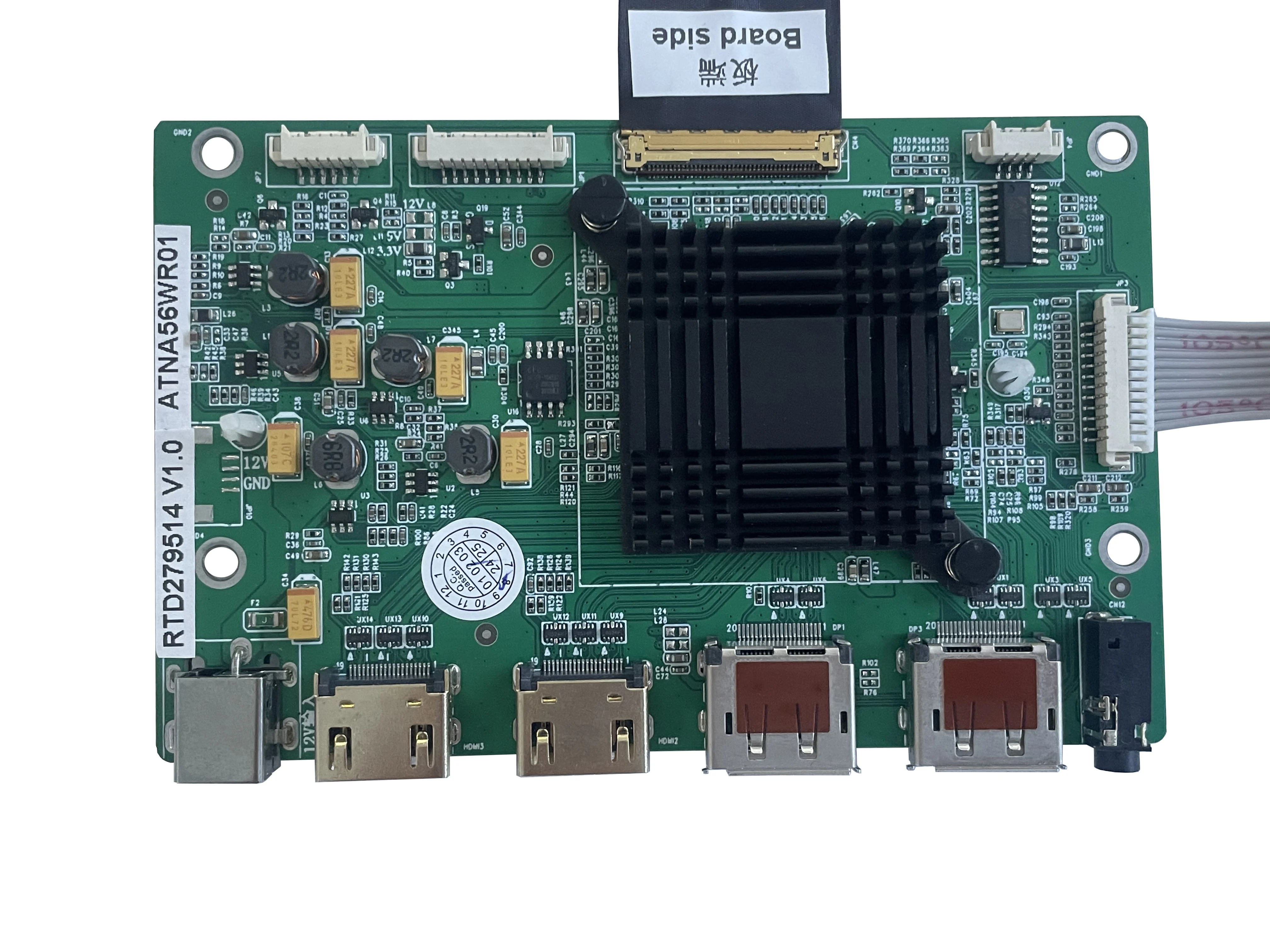

1.Speicification of the 4K lcd controller board
R9511 is a LCD Monitor control board that Maximum support for UHD resolution. This product support TFT LCD for
VGA,SVGA, XGA,SXGA,UXGA, QHD and UHD resolution, for example: LG、Philips、SAMSUNG、AUO.

Support HDR10 High Dynamic Range image (High Dynamic Range, HDR), compared with the ordinary
images, can provide more Dynamic Range and image details, according to the different exposure time of LDR
(Low Dynamic Range) image, using each exposure time corresponding to the best details of the LDR images
to HDR image synthesis, in the end, can better reflect the visual effect in the real environment.

Support the FreeSync 2 technology of AMD graphics card, improve the picture tear, cardan problem, improve the
picture quality.

HDMIinterfacesupportsHDMI2.0protocolandsupportshardwaredecodingsignalupto4K@60Hz

DPinterfacesupportDP1.1andDP1.2protocol,supporthardwaredecodingsignalupto4K@60Hz

Thescreensupportsrotation180degress

5Keycontrolbutton,andsupportremotecontrol

Onboardamplifierstereo3W OSDwitheasytocontrolallfuctions Automaticadjustmentofscreenimagecontrol,brightnessandcontrastcontrol.
Colorbalanceandcolortemperaturecontrol.
OSDsupportChineseandEnglish

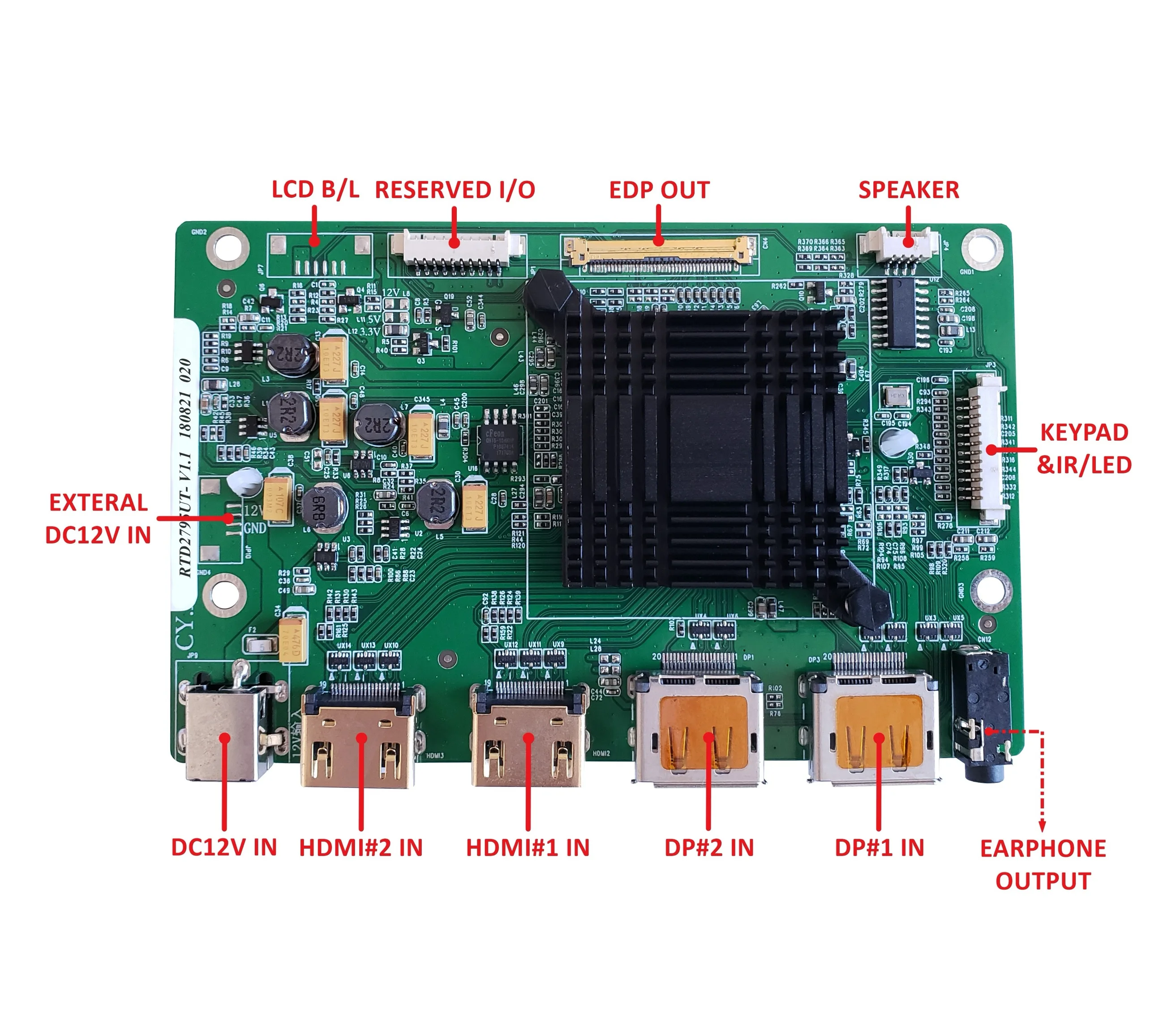

Panelinterfacetype
eDPHRB、eDPHRB2
ProductPhotograph
118x75mm
LCDResolution
Upto3840x2160 @60Hz
Signalinterface
DMI、DPint、3.5EarphoneOutput
Power
PowerInput
DC12V
PowerControl
NormalWorkingMode,Lowpowermode
Powermanagement
StandbyPowerConsumption≤1W
OSDMenu
Picture、Position Adjust
Brightness/Contrast/Saturation/Hue/PositionAdjust
OSDLanguage
Chinese English..
Keyboard
Keyboardtype
GPIOtoGND
Keyboardnumber
5Key
Keydescription
Power VOL- VOL+ Menu Input
Audiooutputpower
2X3W（8Ω）
Colortemperature
mode
Warm/Cool/Standard/Use
116mm(L) x 87.3mm(W) x 19mm(H)
