TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens
TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens
TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens
TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens
TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens
TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens
TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens
TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens
TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens
TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens
TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens
TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens

TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens

Get a Quote
Product Description
Product Description
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-1
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-2
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-3
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-4
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-5
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-6
Hot sales TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens
Resolution 2048(RGB)*2560, Support for HDMI input and Android.

We support for all colors of the entire shell customization.

We support for a variety of certification.
Panel
P2130QSF1MA01
Brand
TIANMA
Resolution
2048×2560(LCR), QSXGA, 153PPI
Diagonal Size
21.3 inch
Active area
337.92(W)×422.4(H) mm
Response Time
25 (Typ.)(Tr+Td) ms
Viewing angle
88/88/88/88 (Typ.)(CR≥10)
Interface Type
LVDS (4 ch, 1--bit) , 104 pins Connector
Display mode
SFT, Normally Black, Transmissive
Power Supply
12.0V (Typ.)
Contrast ratio
2500:1 (Typ.) (TM)
Luminance
3000 cd/m² (Typ.)
Environment
Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C
Products Description
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-7
TIANMA 21.3 Inch High Brightness LCD Panel P2130QSF1MA01 Support 2048(RGB)*2560 QSXGA 153PPI 3000 Nits Outdoor Digital Screens
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-8
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-9
Brightness Test

Enlarged close-up of the luminometer
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-10
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-11

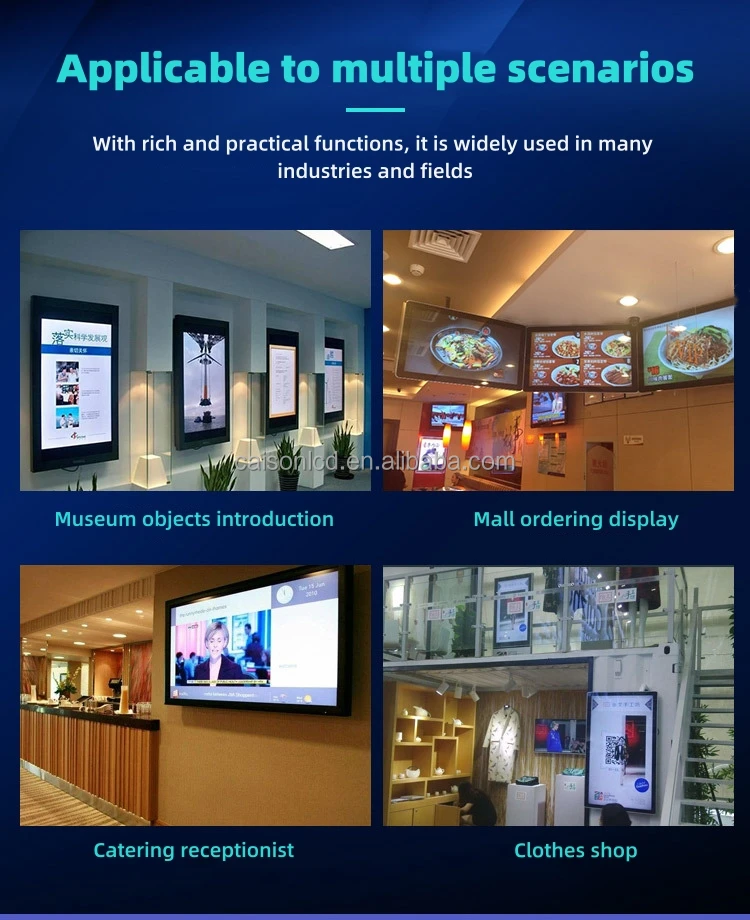

Product Usage
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-12
Related Products
Packing&Shipping

1.About the test
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-13
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-14
2.About the Packing
EPE with Carton with Carton & Plywood case EPE with Carton&Pallet
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-15
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-16
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-17
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-18
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-19
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-20
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-21
3.About the Shipping
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-22
Company Introduction
Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）
Round LCD display
Square LCD display
stretched Bar LCD display
LCD advertising machine (4.3 inch -110 inch )
LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)
LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-23
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-24
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-25
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-26
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-27
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-28
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-29
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-30
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-31
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-32
product tianma 213 inch high brightness lcd panel p2130qsf1ma01 support 2048rgb2560 qsxga 153ppi 3000 nits outdoor digital screens-33
FAQ
1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
