product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-0

Stretched bar lcd monitor

Home >  Products >  Stretched bar lcd monitor and lcd panel >  Stretched bar lcd monitor

Ultra wide stretch bar LCD screen with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm BOE 86 inch DV860FBM-N10
Ultra wide stretch bar LCD screen with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm BOE 86 inch DV860FBM-N10
Ultra wide stretch bar LCD screen with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm BOE 86 inch DV860FBM-N10
Ultra wide stretch bar LCD screen with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm BOE 86 inch DV860FBM-N10
Ultra wide stretch bar LCD screen with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm BOE 86 inch DV860FBM-N10
Ultra wide stretch bar LCD screen with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm BOE 86 inch DV860FBM-N10
Ultra wide stretch bar LCD screen with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm BOE 86 inch DV860FBM-N10
Ultra wide stretch bar LCD screen with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm BOE 86 inch DV860FBM-N10
Ultra wide stretch bar LCD screen with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm BOE 86 inch DV860FBM-N10
Ultra wide stretch bar LCD screen with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm BOE 86 inch DV860FBM-N10
Ultra wide stretch bar LCD screen with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm BOE 86 inch DV860FBM-N10
Ultra wide stretch bar LCD screen with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm BOE 86 inch DV860FBM-N10

Ultra wide stretch bar LCD screen with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm BOE 86 inch DV860FBM-N10

Get a Quote
Product Description
Product details
Hot Sale Boe 86 Inch Stretched Bar Lcd Panel Dv860fbm-n10 With 3840(rgb)*600 1000 Nits 50k Hours Digital Shelf Edge Screen Boe 86
Inch Resolution 3840x600 Backlight 1000cd/m2 Store Shelf Display Screen Stretched Bar Lcd Panel 86 Inch Urban Rail Transit Train
3840*600 High Resolution Advertising Display 3840x600 Resolution With 1000cd/m2 Backlight For Advertising Kiosk Display
product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-1
product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-2
product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-3
product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-4
product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-5
Product Description

product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-6
product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-7

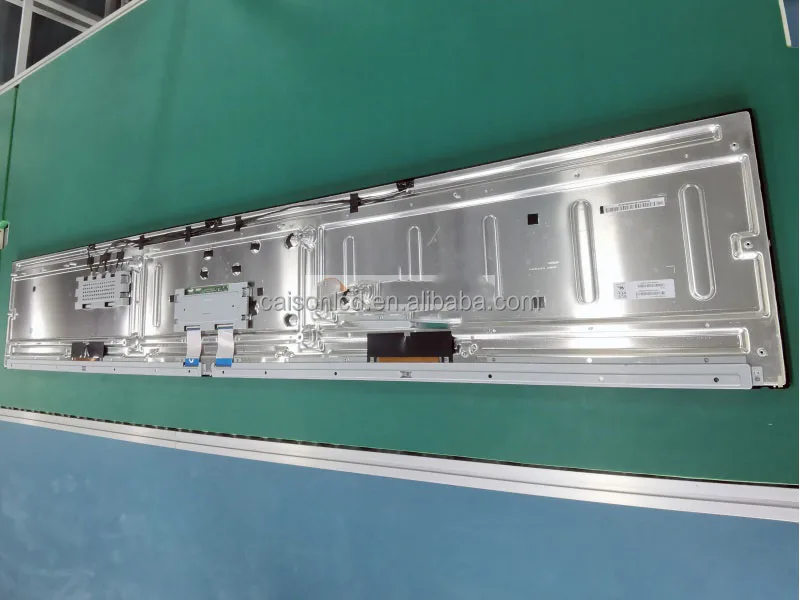

The picture of lcd modules inside:
Two options:HDMI Control board or Android board
The description of LCD screen
Brand
BOE
Model
DV860FBM-N10
Diagonal Size
86 inch
Panel Type
a-Si TFT-LCD, LCM
Active Area
2148.48(W)×335.7(H) mm
Resolution ratio
3840(RGB)×600, 45PPI
Outline Size
2171.08(W)×359.5(H)×41.29(D) mm
Brightness
1000 cd/m² (Typ.)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio
4000:1 (Typ.) (TM)
Response Time
13 (Typ.)(G to G) ms
Lamp Type
WLED , 50K hours , With LED Driver
Signal Interface
V-by-One 8 lane
Input Voltage
12.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
If you need,please contact us,thanks!
Email: [email protected].
Product Usage
product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-8
product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-9
product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-10
product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-11
product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-12
product ultra wide stretch bar lcd screen with 3840rgb6001000 nits 50k hours outline size 2178360mm boe 86 inch dv860fbm n10-13
