Brand |
LG |
Model |
XB493DQD-WH0 |
Diagonal Size |
49 inch |
Type |
AM-OLED, OLED |
Pixel Format |
1920(WRGB)×540 40PPI |
Configuration |
RGBW Rectangle |
Active Area |
1206.53(W)×339.336(H) mm |
Outline Dim. |
1218.33(W)×357.744(H) mm |
Luminance |
400 cd/m² (Typ.) |
Contrast Ratio |
100000:1 (Typ.) (TM) |
Power Supply |
12/24V (Typ.)(VDD/ELVDD) |
Interface Type |
V-by-One 4 lane 65 pins Connector |
Viewing Angle |
60/60/60/60 (Min.)(CR≥10) |
Treatment |
Hard coating (2H) |
Support Color |
1.06B |
Light Source |
self , 30K hours |
Frame Rate |
120Hz |
Environment |
Operating Temperature: 0 ~ 45 °C ; Storage Temperature: -20 ~ 60 °C |














We are a professional factory with over 16 years of experience in the LCD and display peripheral accessories industry, covering R&D, design, production and assembly, and we have been deeply engaged in this field for years to provide high-quality products and services.
Our Core Products
1. LCD Modules: Integrated with display panel, Android/HDMI/Windows mainboard, touch screen and power supply.
2. Full Series Digital Signage: Including hanging window displays, wall-mounted advertising displays, floor-standing advertising displays and mobile cart models, all support touch function.
3. Indoor & Outdoor High-Brightness Screens: Brightness ranges from 300 to 5000 nits, perfectly suitable for various indoor and outdoor applications.

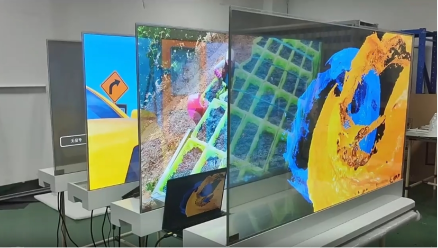

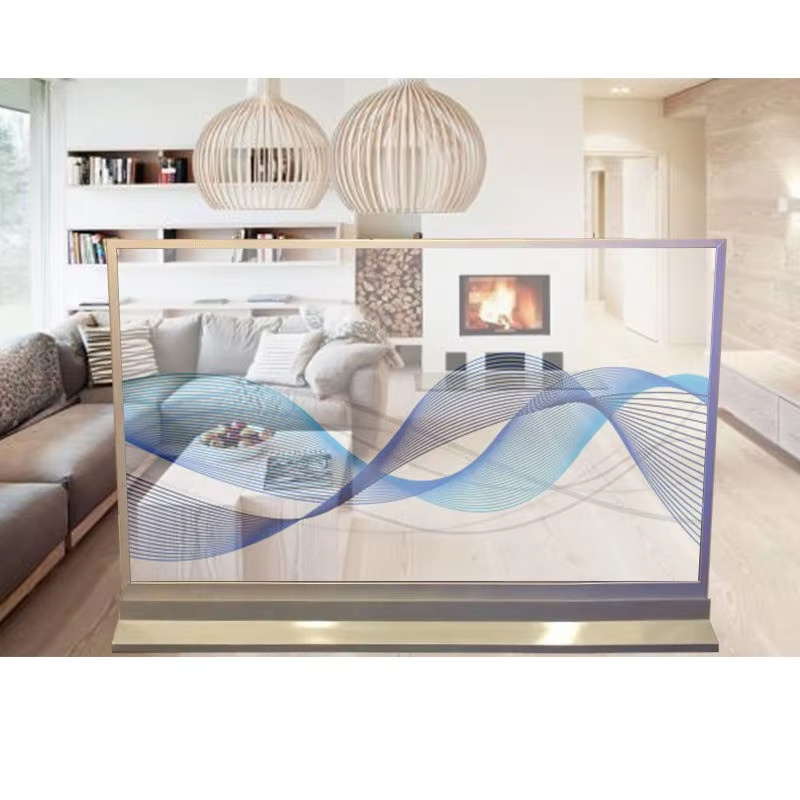

4. Cutting-Edge Technology: Transparent OLED displays, the world’s most advanced display technology.
Six Core Strengths
1. Direct Factory Source: Authorized as a first-class agent for many top international LCD brands, ensuring stable supply.
2. Strong Production Capacity: Million-level clean workshop, specialized in high-end projects for high-brightness and touch displays.
3. Fast Customization: Own sheet metal fabrication factory with full control over materials and design; drawings can be finished in as fast as 1 day.
4. Professional Team: 107 employees in total, including 20 sales staff, 7 R&D engineers and 10 technical support members.
5. Quality Assurance: Certified by SGS and long-term supplier for many Fortune Global 500 companies.
6. Complete Certifications:Our products support certifications including UL, CE, KC, 3C, PSE, RoHS, FCC and UKCA.
Cooperation Commitments
1. Support 24-hour online video factory audit; we can hang your brand logo during the audit to build trust.
2. Accept non-quality-related returns after receipt, provided the goods do not affect resale.
3. Provide on-site team service for partners with annual turnover over USD 2,000,000.
Welcome to visit our website: www.caisonlcd.com to view our full product range.
We look forward to establishing long-term cooperation with you. Thank you!
