Product: Outdoor advertising machine |

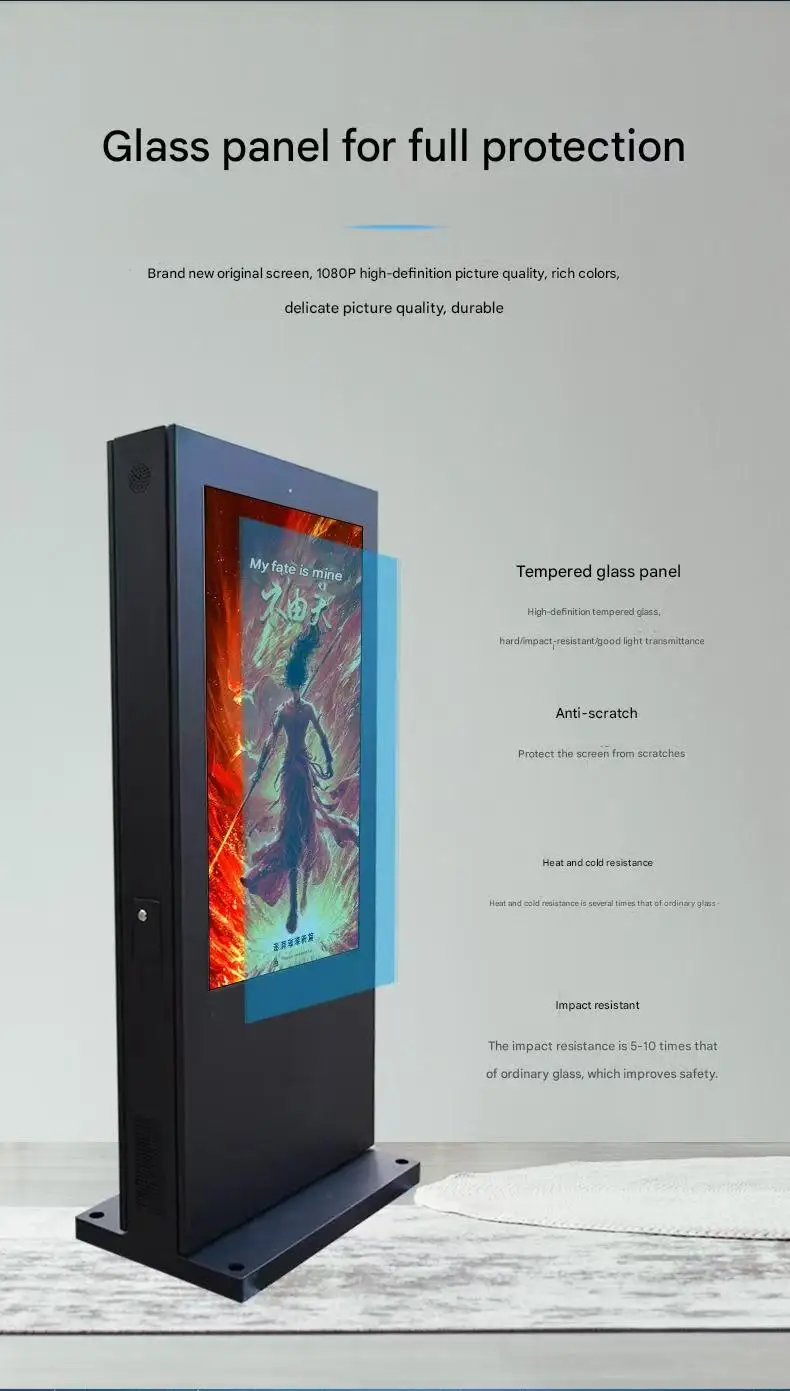

Material: tempered glass, |
Display ratio: 16:9 |
aluminum alloy frame |

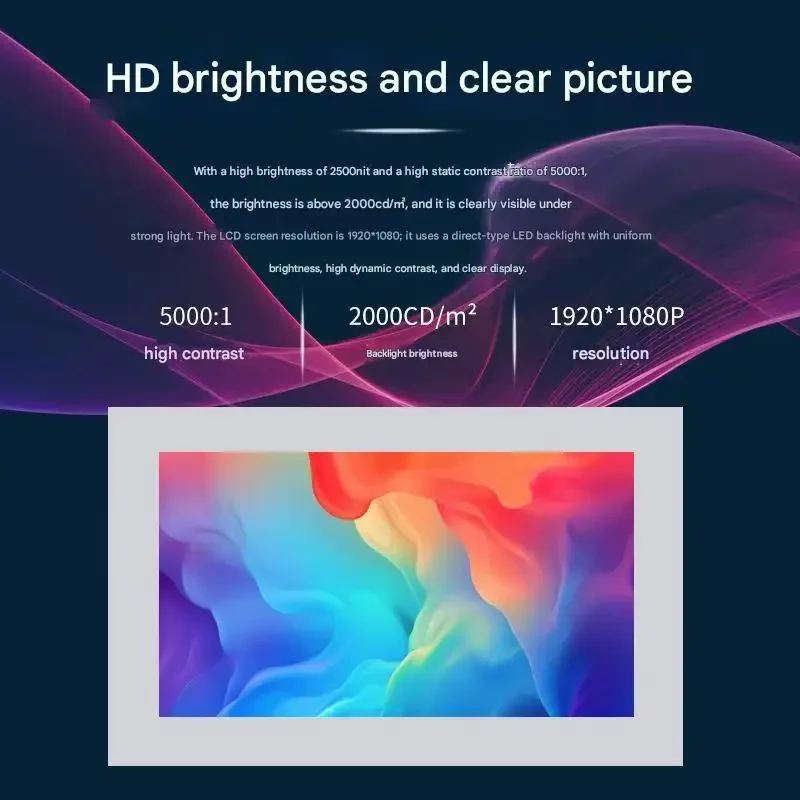

Brightness: 2000cd/m |
Resolution: 1080P |

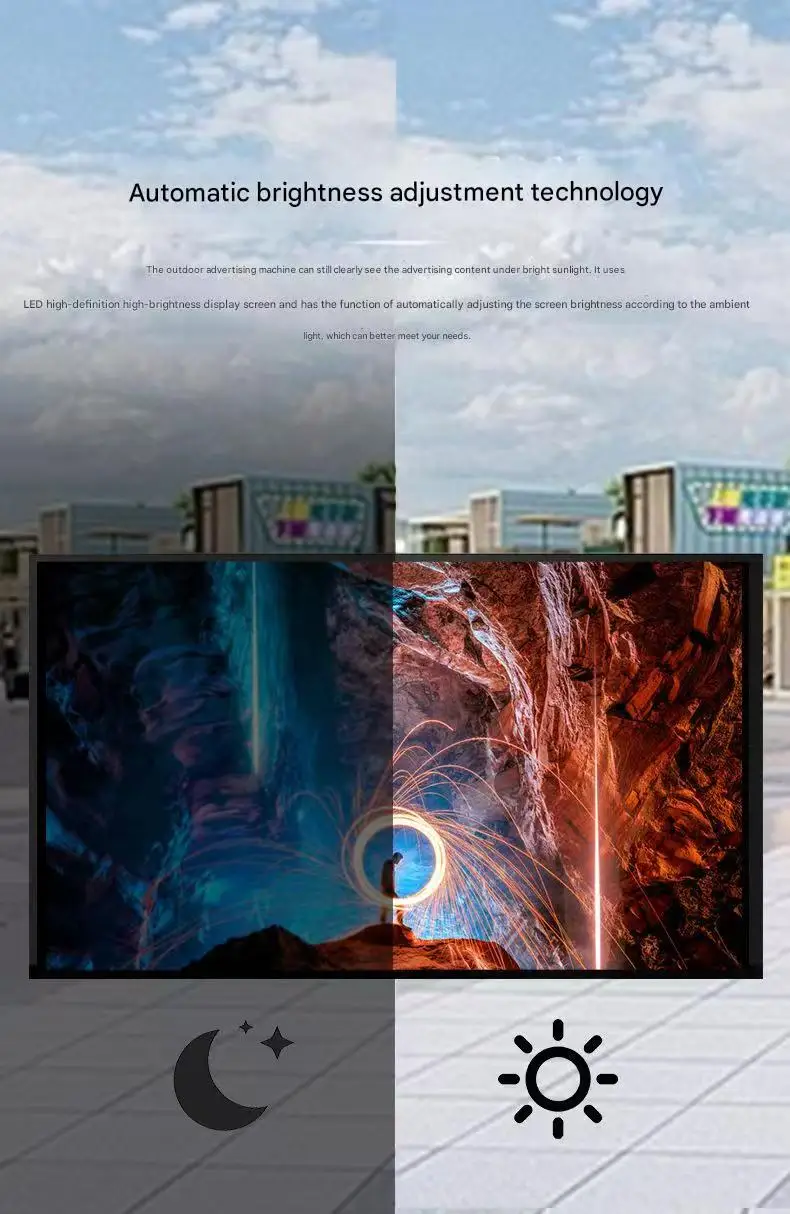

Brightness control: automatic adjustment |
Color:16.7M |
Contrast ratio: 5000:1 |
Viewing angle: 178° up, down, left, and right |
Voltage: 110-240V |
Power: 110W |
Brand |
Innolux |
Model |
CS550-A02 |
||
Diagonal Size |
55inch |
Type |
a-Si TFT-LCD, LCM |
||
Resolution |
1920(LCR)×1080, QSXGA 153PPI |
Pixel Format |
LCR Vertical Stripe |
||
Active Area |
422.4(W)×337.92(H) mm |
Bezel Opening |
426.4(W)×344.5(H) mm |
||
Outline Size |
459.8(W)×375.3(H)×30.5(D) mm |
Treatment |
Antiglare |
||
Brightness |
2000 cd/m² (Typ.) |
Contrast Ratio |
5000:1 (Typ.) (TM) |
||
Best view on |
Symmrtry |
Response Time |
8ms |
||
Viewing Angle |
85/85/85/85 (Typ.)(CR≥20) |
Operating Mode |
DD-IPS, Normally Black, Transmissive |
||
Display Color |
Grayscale |
Lamp Type |
WLED , 50K hours , With LED Driver |
||
Frame Rate |
60Hz |
Touch Panel |
Without |
||
Interface Type |
LVDS (4 ch, 10-bit) 90 pins Connector |
Power Supply |
12.0V (Typ.) |
||
Environment |
Storage Temp.: -20 ~ 60 °C ;Operating Temp.: -20 ~ 50 °C |
||||
